CONTA-CLIP KDSI-SR 1-4 BK Cable grommet with seal Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(s)

Black rectangular plastic frame with an opening in the centre, presumably for mounting or holding other components.
Black rectangular plastic frame with multiple holes and clips used for mounting electrical switches or sockets.

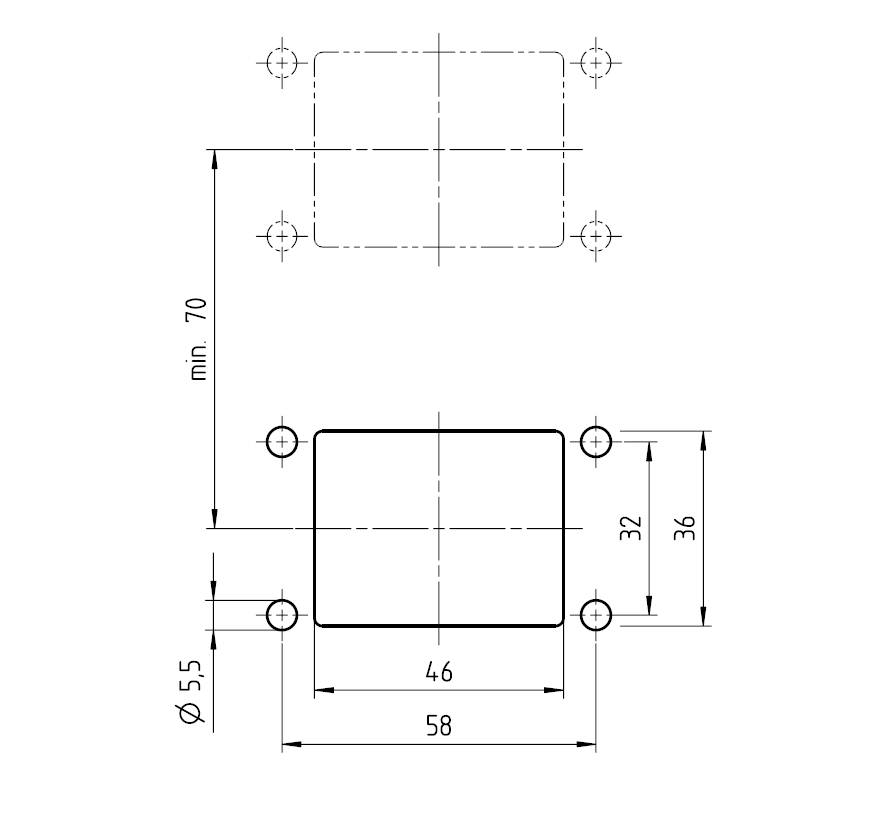

Technical drawing of a rectangular object with dimensions: width 58 mm, height 70 mm, hole Ø 5.5 mm. Distances marked.

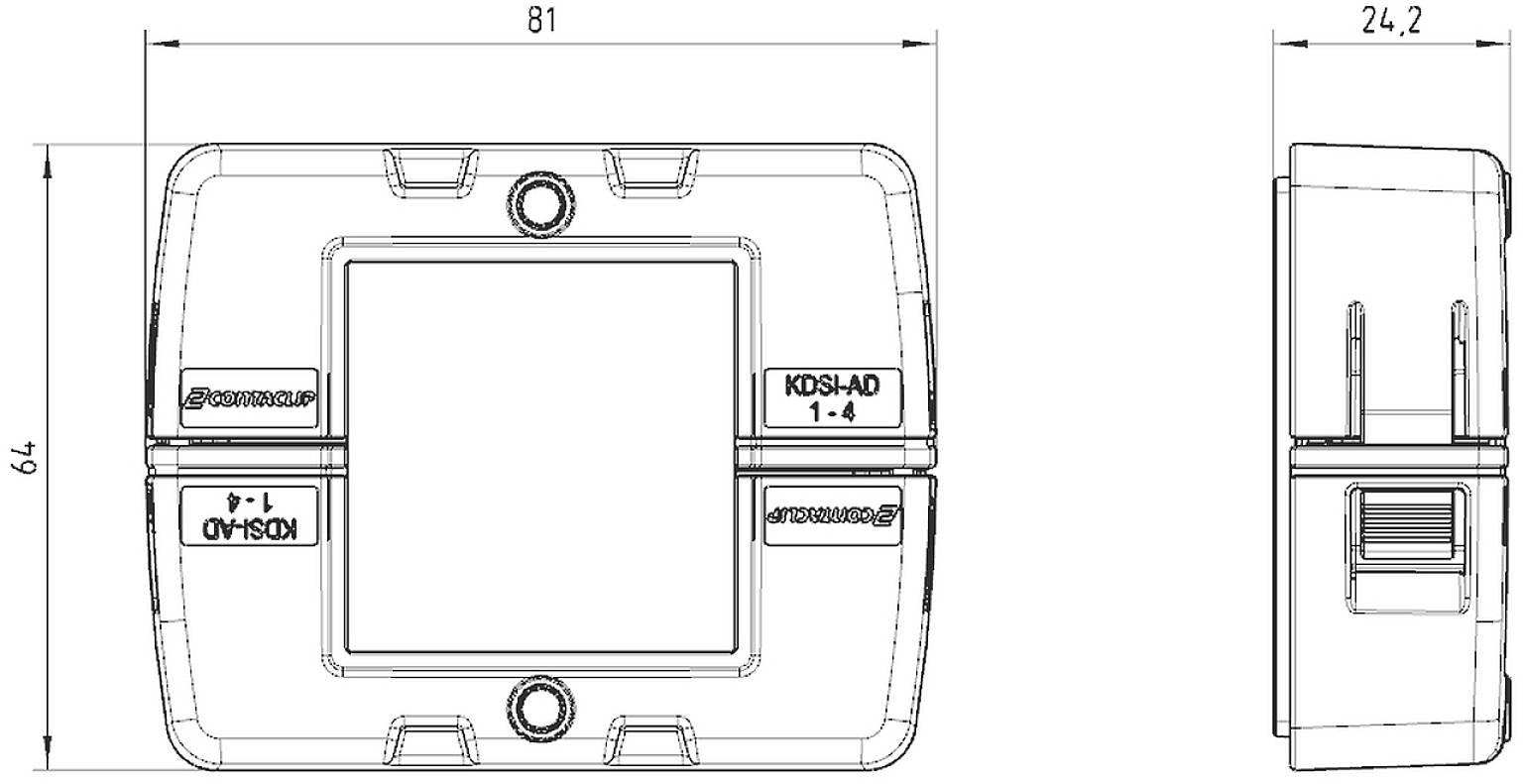

Technical drawing of a rectangular electronic module with labels 'KDSI-AD 1-4'. Dimensions: 81 x 74 x 24.2 mm.
1/4
Product type
Cable grommet
Features
with seal
Material
Polyamide 6.6
Mounting hole
M5
Factory colour
Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Wed 4 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 17.99 / piece)
€ 17.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Cable bushing with TPE seal

Our service for you

Technical specifications

  • Distance of wall cut-outs min.: 70Number of screw holes: 4Building height 24.2 mmWidth of wall cut-out: 36 mmFlammability class UL 94: V-0Sealing material TPETightening torque of the mounting bolts: 3 NmDiameter of screw holes 5.5 mmLength of wall cut-out: 46 mmMounting type: ScrewsMounting instructions: Also suitable for mounting on extended wall openings 46 mm x 46 mm.RAL 9005
Product type

Cable grommet

Features

with seal

Factory colour

Black

Material

Polyamide 6.6

Length

81 mm

Width

64 mm

Height

24.2 mm

Dim

(L x W x H) 81 x 64 x 24.2 mm

Mounting hole

M5

Min. temperature

-40 °C

Max. temperature

+120 °C

IP66

Halogen-free

Yes

Content

1 pc(s)

Manufacturer part #

28880.4

Type

KDSI-SR 1-4 BK

RoHS-compliant

Yes

Material properties

fibreglass-reinforced

silicone-free

Mounting hole diameter

5.5 mm

UKCA

not relevant

Documents & Downloads

Datasheet

Datasheet 2617374 CONTA-CLIP KDSI-SR 1-4 BK Cable grommet with seal Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2617374 CONTA-CLIP KDSI-SR 1-4 BK Cable grommet with seal Mounting hole diameter 5.5 mm Polyamide 6.6 Black 1 pc(s)

Description

Cable gland with TPE seal, mounting type: Screws, length: 81 mm, width: 64 mm, IP66, Color: Black
