Contrik 1028797 1-piece Socket splitter Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 385.00 / piece)
€ 385.00
incl. VAT
Only available for business customers
14-day return policy includedHighlights & Details

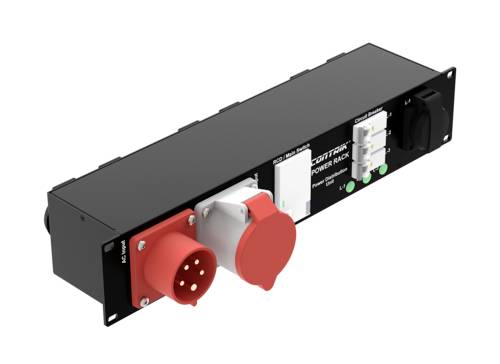

Power rack extreme
- IN:1X CEE 16A
- OUT: 7x Schuko type F, 1x CEE 16A
Technical specifications

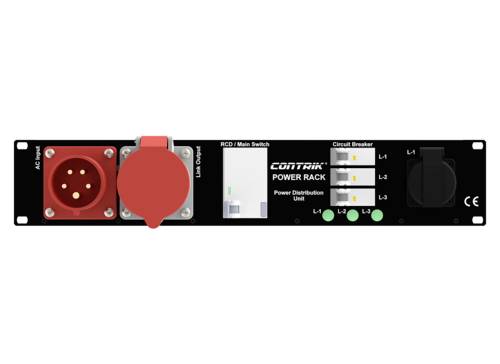

- Input: 1x CEE16A 5P red (front)
- Daisy chain: 1x CEE16A 5P red (Daisy Chain) front

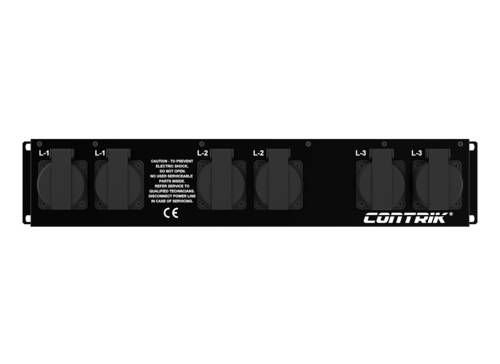

- Output: 7x Schuko socket with lid
- 1x RCCB 40/0.03 A (3-pin + N)
- MCB C16: 3x (1-pin)
- Phase control display L1, L2, L3, green
- Rated voltage 415 V/AC, 50 Hz
- Rated current CEE-socket 415 V connection
- Earthing contact socket-outlet 230V 16A
- Housing: metal
- Temperature range -5 to +40°C.
- Product type
Socket splitter
- No. of PG sockets
7
- Nominal voltage (details)
415 V AC
- Nominal current (details)
16 A
IP20
- Factory colour
Black
- Weight
3.8 kg
- Dim
(L x W x H) 88 x 483 x 104 mm
- Length
88 mm
- Width
483 mm
- Height
104 mm
Documents & Downloads
Datasheet
Datasheet 3190074 Contrik 1028797 1-piece Socket splitter Black
Description
Power rack Xtreme is a powerful and extremely reliable distributor solution for installation in the 19" rack. It is Ideal suitable for cabling amplifiers in the rack.
This text is machine translated.
This text is machine translated.
Features
- High-quality electrical and electronic components from renowned brand manufacturers
- Circuit protection with ground fault circuit interrupter (RCCB) and circuit breaker (MCB)
- High quality mounting in the EU
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
