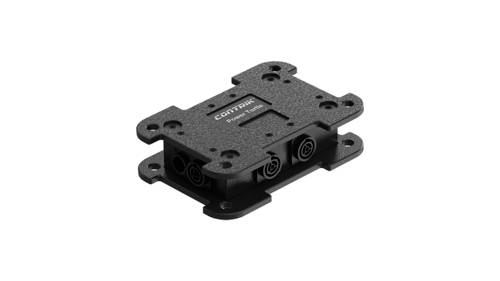

Contrik 1035597 1-piece Socket splitter Black
Datasheet (PDF)
EAN:
Part number:
Item no:
Total (€ 174.99 / piece)
€ 174.99
incl. VAT
Only 2 Piece(s) available
Only available for business customers
14-day return policy includedHighlights & Details
Power turtle indoor IP20
- IN:1x PowerCon True1
- OUT: 7x Powercon True1
Technical specifications
- Input: 1x powerCON® TRUE1® TOP
- Outputs: 7x powerCON® TRUE1® TOP
- Daisy-Chaining: 1x powerCON® TRUE1® TOP
- Breakdown voltage: 0.5 kV/mm
- Number of electrical contacts 2 + PE
- Phases: Single phase
- Casing: Easylen
- Conductor cross-section: 2.5 mm²
- Standards compatibility UL94-V2
- Temperature range --25°C to +70°C.
- Product type
Socket splitter
- Nominal voltage (details)
250 V AC
- Nominal current (details)
16 A
IP20
Protection class II
- Factory colour
Black
- Weight
1000 g
- Dim
(L x W x H) 150 x 220 x 65 mm
- Length
150 mm
- Width
220 mm
- Height
65 mm
Documents & Downloads
Datasheet
Datasheet 3190063 Contrik 1035597 1-piece Socket splitter Black
User & Safety Instructions
User & Safety Instructions 3190063 Contrik 1035597 1-piece Socket splitter Black
Description
Power turtle Xtreme indoor (X) is a compact distribution solution for mobile applications. This distributor is Ideal suitable for indoor applications with limited available space / height and harsh usage conditions, such as in theaters, exhibitions or similar applications.
This text is machine translated.
This text is machine translated.
Features
- Very compact, reduced overall height
- Extremely robust and safe EASYLEN® casing with leather grain
- Highly reliable Neutrik® powerCON® TRUE1® TOP connectors for in, out and daisy chaining
- Flame resistant (UL94-V2) and non-conductive casing material
- High mechanical protection (high IK)
- Low weight and stackable housing design
- Versatile mounting options
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
