Name: Contrik 1035599 1-piece Socket splitter Black
Brand: Contrik
SKU: 3190059
Availability: InStock

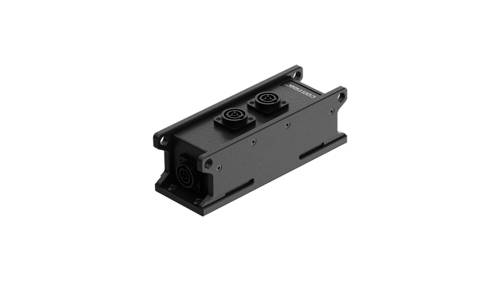

Black electrical device with a robust casing, two round connectors on the top surface, suitable for industrial applications.

Black rectangular device with two connections at the top, against a neutral background.

Black, rectangular device with two connections on top. Used for data connection or power supply in industrial applications.<br><br>Note: This translation is already in British English, so no changes were necessary.

1/3

Datasheet (PDF)

EAN:

Part number:

Item no:

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 95.99 / piece)

€ 95.99

incl. VAT

Only 2 Piece(s) available

Only available for business customers

14-day return policy included

Report legal concerns

Highlights & Details

Power strip indoor IP20

In:1x powerCON TRUE1
Out: 3x powerCON TRUE1

Technical specifications

Input: 1x powerCON® TRUE1® TOP
Output: 3x powerCON® TRUE1® TOP
Daisy-Chaining: 1x powerCON® TRUE1® TOP
Breakdown voltage: 0.5 kV/mm
Number of electrical contacts 2 + PE
Phases: Single phase
Casing: Easylen
Conductor cross-section: 2.08 mm²
Standards compatibility UL94-V2
Temperature range --25°C to +70°C.

Product type: Socket splitter

Nominal voltage (details): 250 V AC

Nominal current (details): 16 A

: IP20
Protection class II

Factory colour: Black

Weight: 550 g

Dim: (L x W x H) 91.20 x 220 x 77 mm

Length: 91.20 mm

Width: 220 mm

Height: 77 mm

Documents & Downloads

Datasheet

Datasheet 3190059 Contrik 1035599 1-piece Socket splitter Black

User & Safety Instructions

User & Safety Instructions 3190059 Contrik 1035599 1-piece Socket splitter Black

Description

Power strip Xtreme (X) is a compact distributor solution for mobile applications. This distribution box is suitable to Ideal for indoor applications with restricted space / height and harsh usage conditions, such as in theaters, exhibitions or similar applications.

This text is machine translated.

Features

Extremely robust and safe EASYLEN® casing with leather grain
Highly reliable Neutrik® powerCON® TRUE1® TOP connectors for in, out and daisy chaining
Flame resistant (UL94-V2) and non-conductive casing material
High mechanical protection (high IK)
Low weight, compact and stackable housing design
Versatile mounting options

Description

Features

Extremely robust and safe EASYLEN® casing with leather grain
Highly reliable Neutrik® powerCON® TRUE1® TOP connectors for in, out and daisy chaining
Flame resistant (UL94-V2) and non-conductive casing material
High mechanical protection (high IK)
Low weight, compact and stackable housing design
Versatile mounting options
