Name: Cordial 15570 RJ45 Patch cable CAT 5e SF/UTP 25.00 m Black PUR coating 1 pc(s)
Brand: Cordial
SKU: 3344128
Availability: BackOrder

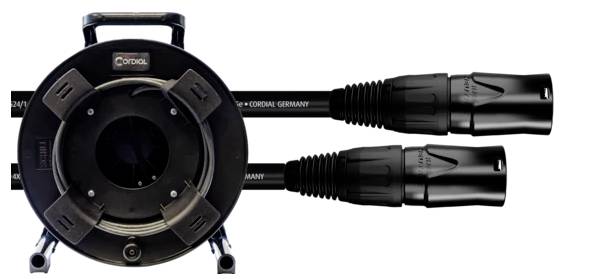

A black cable reel with two large connectors in close-up, marked with 'Germany'.<br><br>Note: I corrected the likely typo "Germnay" to "Germany" while translating.

A CAT6 cable with a black outer sheath; some coloured cables are visible at one end, suitable for high-speed data transmission.

Wiring Diagram for an Ethernet Cable: Colour Pairings with Numbers. White-orange to 1, Orange to 2, White-green to 3, etc.

1/3

Product type

Patch cable

Specification

CAT 5e

Shielding

SF/UTP

Connection type

RJ45

Cable length

25.00 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Dispatches on Wed 11 Nov

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 329.00 / piece)

€ 329.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Assignment: RJ45 Pinout T568B
Neutrik ® / HIROSE ® connector brand
Wire cross-section (mm²): 0.20 mm²
AWG24/1
Conductor construction 1 x 0.20 mm²
Conductor insulations foam skin PE nom. 1.02 mm
Diameter outer sheath: 6.8 mm +/- 0.2 mm
Capacitance conductor (pF/m): Less than 50 pF/m
Conductor resistance (ohms / km): 86 Ω / km.
PoE (15.4W) IEEE 802.3af-2003 max. Channel PoE (15.4W) 103 m
Max. Channel link: Channel of Class D / CAT 5e (@ 100 MHz): 117m

Product type: Patch cable

: CAT 5e

: SF/UTP

Connection type: RJ45

No. of A connectors: 1 x

Type A: RJ45 plug

No. of B connections: 1 x

Type B: RJ45 plug

Cable length: 25.00 m

Factory colour: Black

Connector version: straight

Cable features: PUR coating

Cable use: Networks

Version: Cable

Cable design: Round

Max. frequency: 100 MHz

LAN transfer rate: 100 MBit/s
1000 MBit/s

Documents & Downloads

Datasheet

Datasheet 3344128 Cordial 15570 RJ45 Patch cable CAT 5e SF/UTP 25.00 m Black PUR coating 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3344128 Cordial 15570 RJ45 Patch cable CAT 5e SF/UTP 25.00 m Black PUR coating 1 pc(s)

Description

The CSE NN-SD 5e PUR LONGRUN cable drum consists of the medium-meter CCAT 5e PUR LONGRUN as well as HIROSE® RJ45 plugs with Neutrik® etherCON® cable plug protection and an extremely robust GT 310 drum of the brand Schill®.
The CCAT 5e PUR LONGRUN is a first-class, double-shielded data cable that is specifically designed for demanding applications. With its solid inner conductor AWG 24/1, it ensures reliable data transmission for a wide range of applications, including audio networks, lighting control, EtherSound™ and mobile applications that require ranges of over 100 meters.
The outstanding features of this 100 MHz cable include a robust PUR-sheath and a Cross Separator (PE-cross) design, which protects the cable against adverse environmental influences and mechanical load. This extremely robust yet flexible design makes it especially suitable for use on stages and outdoor events, where reliability and durability are crucial.
This cable supports Power over Ethernet (PoE) with 15.4 watt power, WAS significantly increases the flexibility and versatility of the applications, since the connected devices can be supplied with power directly via the data cable.
Flexible, robust, can be rolled,
PUR-sheath for mobile indoor/outdoor applications
Data class CAT 5e (100 MHz)
Overall shield SF/UTP
AWG 24/1, with solid conductor
PoE (15.4W) IEEE 802.3af-2003 max. Channel PoE (15.4W) 103 m
Neutrik® etherCON® cable plug protection + HIROSE® RJ45 plug
Schill® cable drum
Transparent shrink hose for labeling the cables
Application: Data, Ethernet, audio networks, lighting control, EtherSound™

This text is machine translated.
