Cordial 15669 RJ45 Patch cable CAT 6A S/FTP 25.00 m Black PUR coating 1 pc(s)
EAN:
Part number:
Item no:
Product type
Patch cable
Specification
CAT 6A
Shielding
S/FTP
Connection type
RJ45
Cable length
25.00 m
Datasheet (PDF)
Number
Total (€ 1,987.39 / piece)
€ 1,987.39
plus VAT.
Technical specifications
- Assignment: RJ45 Pinout T568B
- Plug brand Neutrik ®
- Wire cross-section (mm²): 0.22 mm²
- AWG24/7
- Conductor construction 7 x 0.22 mm²
- Conductor insulations foam skin PE nom. 1.4 mm
- Diameter outer sheath: 23.5mm +/- 0.4mm
- Diameter CAT 7.9 mm +/- 0.2 mm
- Capacitance conductor (pF/m): Less than 50 pF/m
- Conductor resistance (ohms / km): 84 Ω / km.
- PoE++ (99.9W) IEEE 802.3at-2018 max. Channel PoE (15.4W) 97 m
- Max. Channel link: Channel of Class EA / CAT 6A (@ 500 MHz): 103m
- Product type
Patch cable
CAT 6A
S/FTP
- Connection type
RJ45
- No. of A connectors
4 x
- Type A
RJ45 plug
- No. of B connections
4 x
- Type B
RJ45 plug
- Cable length
25.00 m
- Factory colour
Black
- Connector version
straight
- Cable features
PUR coating
24/7
- Cable use
Networks
- Version
Cable
- Cable design
Round
- LAN transfer rate
10000 MBit/s
Documents & Downloads
Datasheet
Datasheet 3344202 Cordial 15669 RJ45 Patch cable CAT 6A S/FTP 25.00 m Black PUR coating 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3344202 Cordial 15669 RJ45 Patch cable CAT 6A S/FTP 25.00 m Black PUR coating 1 pc(s)
Description

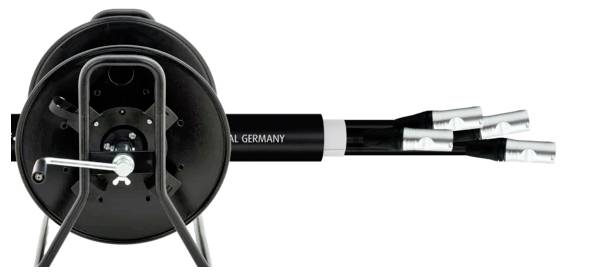

The CSE NN-SD 6A PUR LONGRUN cable drum consists of the CCAT 6A PUR QUAD, 8 x Neutrik® etherCON® CAT6A connectors and an extremely robust drum (SK 4601RM or SK4823RM) of the Schill® brand.
With its double shielding, a flexible inner conductor (AWG 24/7) and a robust yet flexible PUR-outer sheath it is highly powerful and reliable.
This cable supports Power over Ethernet (PoE++) with a power of 99.9 watt and is therefore predestined for audio networks, lighting control, EtherSound™ and mobile applications with a range of over 100 meters. It is particularly well suited for use in mobile applications, stage operation and outdoor transmissions.
Multicore 4 x CAT 6A
Flexible, robust, can be rolled,
Total PUR sheath for mobile indoor/outdoor applications
Data class CAT 6A (500 MHz)
Common shield S/FTP
AWG 24/7, with 7 wires/conductor
PoE++ (99.9W) IEEE 802.3at-2018 max. Channel PoE (15.4W) 97 m
Neutrik® etherCON® CAT6A connectors
Transparent shrink hose for labeling the cables
Schill® cable reel (SK 4601RM (25 m), SK4823RM (50 and 75m))
Application: Data, Ethernet, audio networks, lighting control, EtherSound™
This text is machine translated.
With its double shielding, a flexible inner conductor (AWG 24/7) and a robust yet flexible PUR-outer sheath it is highly powerful and reliable.
This cable supports Power over Ethernet (PoE++) with a power of 99.9 watt and is therefore predestined for audio networks, lighting control, EtherSound™ and mobile applications with a range of over 100 meters. It is particularly well suited for use in mobile applications, stage operation and outdoor transmissions.
Multicore 4 x CAT 6A
Flexible, robust, can be rolled,
Total PUR sheath for mobile indoor/outdoor applications
Data class CAT 6A (500 MHz)
Common shield S/FTP
AWG 24/7, with 7 wires/conductor
PoE++ (99.9W) IEEE 802.3at-2018 max. Channel PoE (15.4W) 97 m
Neutrik® etherCON® CAT6A connectors
Transparent shrink hose for labeling the cables
Schill® cable reel (SK 4601RM (25 m), SK4823RM (50 and 75m))
Application: Data, Ethernet, audio networks, lighting control, EtherSound™
