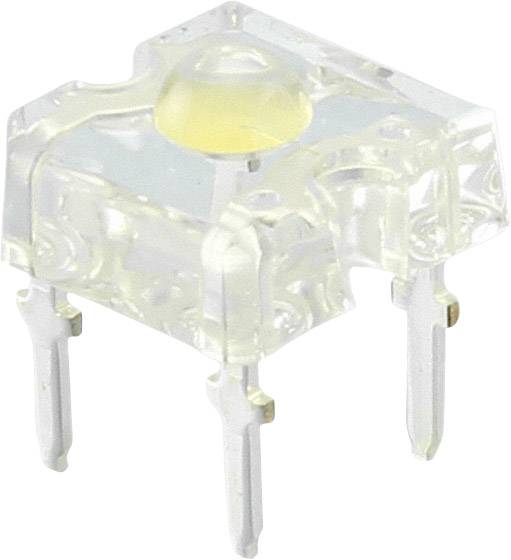

CREE CP41B-WGS-CK0P0154 LED wired Cold white Circular 3 mm 3.0 cd 90 ° 35 mA 3.6 V
EAN:
Part number:
Item no:
Product type
LED wired
Forward voltage U(F)
3.6 V
Forward current I(F)
35 mA
Casing
3 mm
Type
Packaged
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
5
-
€ 0.66
15
8% = € 0.05
€ 0.61
25
12% = € 0.08
€ 0.58
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 5
Total (€ 0.66 / piece)
€ 3.30
plus VAT.
Technical specifications
- Series: P4
- Product type
LED wired
- Type
CP 41B-WGS-CK0 P0154
- Factory colour
Cold white
- Forward voltage U(F)
3.6 V
- Forward current I(F)
35 mA
- Casing
3 mm
- Type
Packaged
- Light intensity I(V)
3.0 cd
- Luminous flux (Φ)
7 lm
- Colour coordinates
0.2905 0.2895;
- Radiation angle
90°
- Type (LEDs)
Water clear
- Lens type
Circular
- Dim
(L x W x H) 8.49 x 7.6 x 7.6 mm
- Min. temperature
-40 °C
- Max. temperature
+95 °C
- Length
8.49 mm
- Width
7.6 mm
- Height
7.6 mm
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 1125367 CREE CP41B-WGS-CK0P0154 LED wired Cold white Circular 3 mm 3.0 cd 90 ° 35 mA 3.6 V
User & Safety Instructions
User & Safety Instructions 1125367 CREE CP41B-WGS-CK0P0154 LED wired Cold white Circular 3 mm 3.0 cd 90 ° 35 mA 3.6 V
Description
Hints
All standard LED chips require a current-limiting resistor/constant current power source.
