Name: D-Link DGS-1250-28XP/E 19" switch box 24 + 4 ports 10 / 100 / 1000 MBit/s PoE
Brand: D-Link
SKU: 3841557

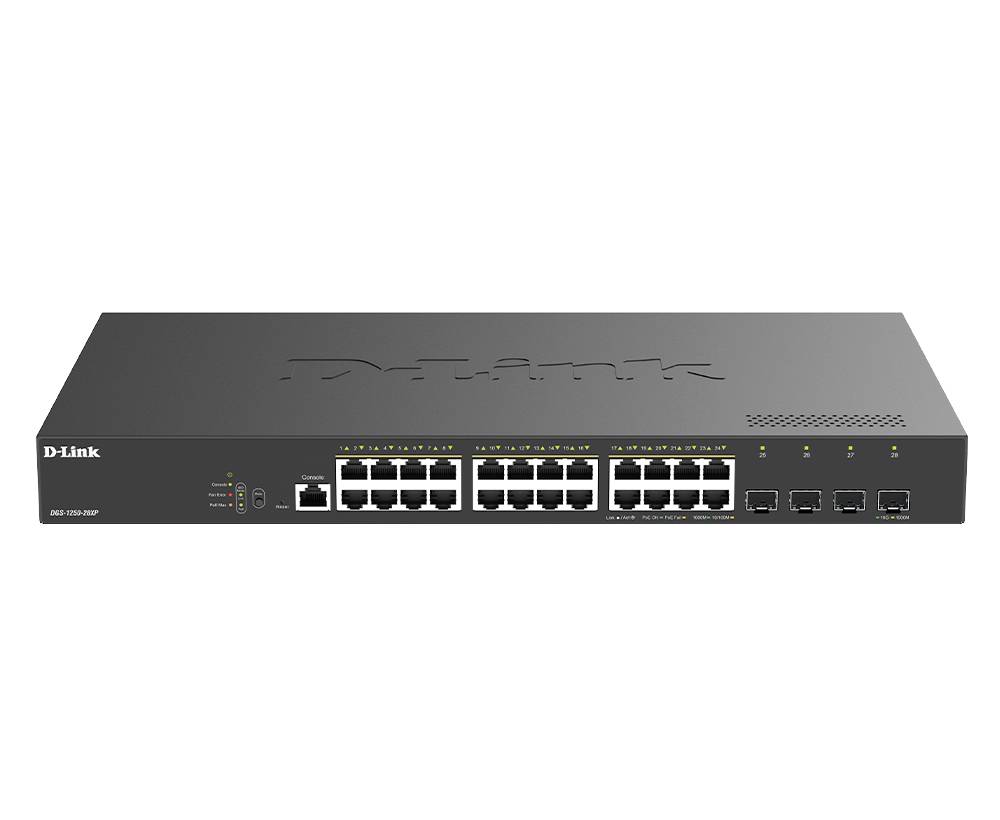

Front view of a D-Link rackmount network switch with multiple Ethernet ports, status lights, and SFP uplink ports on the front panel.

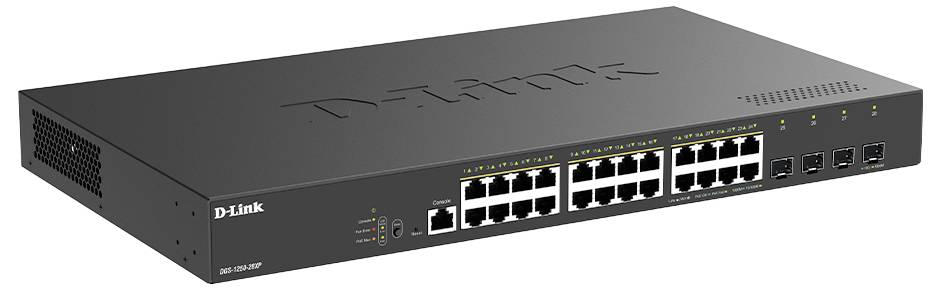

D-Link 24-port Ethernet network switch with status LEDs and uplink ports on the front panel.

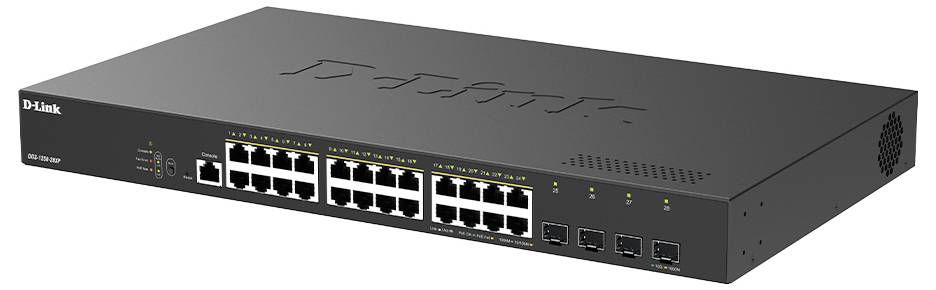

D-Link rackmount Ethernet switch with multiple front ports, status lights, and a black metal chassis.<br>

Close-up of a dark gray power strip with multiple outlets and a central power button, labeled as a Power Core Monster.

1/4

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

D-Link DGS-1250-28XP managed L2+ Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) desktop black

Managed L2+ Web-based management
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 24 console port: RJ-45
10G-SUPPORT 10BASE-T, 1000BASE-T, 10GBASE-T
MAC address table: 16000 entries Routing/switching capacity: 128 Gb/s.
Access control list
Desktop/ rack installation
AC power supply includes Power over Ethernet (PoE)

Technical specifications

Number of fans: 1 fans
DDR3-SDRAM memory type
Energy source: AC

Product type: 19" switch box

LAN transfer rate: 1000 MBit/s

Transfer rate: 10 / 100 / 1000 MBit/s

Working principle: Managed switch

Ethernet ports: 24

SFP+ ports: 4 x

SFP ports: 4 x

10/100/1000 Mbps ports: 24 x

Fibre-optic ports: 4

Auto-uplink at each port: Yes

Jumbo frames: Yes

Router features: PoE

Power supply (LOV): mains-powered

MAC addresses: 16000

Weight: 3.83 kg

Width: 440 mm

Height: 44 mm

Depth: 250 mm

Type: DGS-1250-28XP/E

Rack size: 483 mm (19")

Factory colour: Black

Max. ambient temperature: 50 °C

Min. ambient temperature: -5 °C

Port: 24 + 4 ports

Case type: Desktop

: 512 MB

UKCA: yes

Operating temperature (T-T): -5 - 50 °C

Basic switching RJ-45 Ethernet ports quantity: 24

Total Power over Ethernet (PoE) budget: 375 W

Packet buffer memory: 12 MB

Storage relative humidity (H-H): 0 - 95 %

Switching capacity: 128 Gbit/s

Traffic classification: yes

SFP+ module slots quantity: 4

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Link aggregation: yes

Multicast support: yes

Web-based management: yes

Access Control List (ACL): yes

Quick start guide: yes

Rack mounting: yes

Mean time between failures (MTBF): 322413.39 h

Flash memory: 32 MB

MAC address table: 16000 Eintragungen

IGMP snooping: yes

Spanning tree protocol: yes

Operating relative humidity (H-H): 0 - 95 %

VLAN support: yes

10G support: yes

Storage temperature (T-T): -20 - 70 °C

Forwarding rate: 95.24 Mpps

Power consumption (max): 452.52 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3841557 D-Link DGS-1250-28XP/E 19" switch box 24 + 4 ports 10 / 100 / 1000 MBit/s PoE

Description

The DGS-1250-series is the latest generation of Smart managed switches from D-Link with 10 gigabit ports. The DGS-1250-28XMP has 24 Gigabit PoE connections as well as additional SFP+ ports.

This text is machine translated.

Scope of delivery

DGS-1250-28XMP, multi-language printed installation guide, C13 low power power cable SCHUKO, serial console cable (RJ-45), power cable holder, Rack mounting kit, rubber feet, quick start guide

Description

Scope of delivery

DGS-1250-28XMP, multi-language printed installation guide, C13 low power power cable SCHUKO, serial console cable (RJ-45), power cable holder, Rack mounting kit, rubber feet, quick start guide
