Name: D-Link DIS-210G-12P Industrial Ethernet switch 24 MBit/s
Brand: D-Link
SKU: 3841571

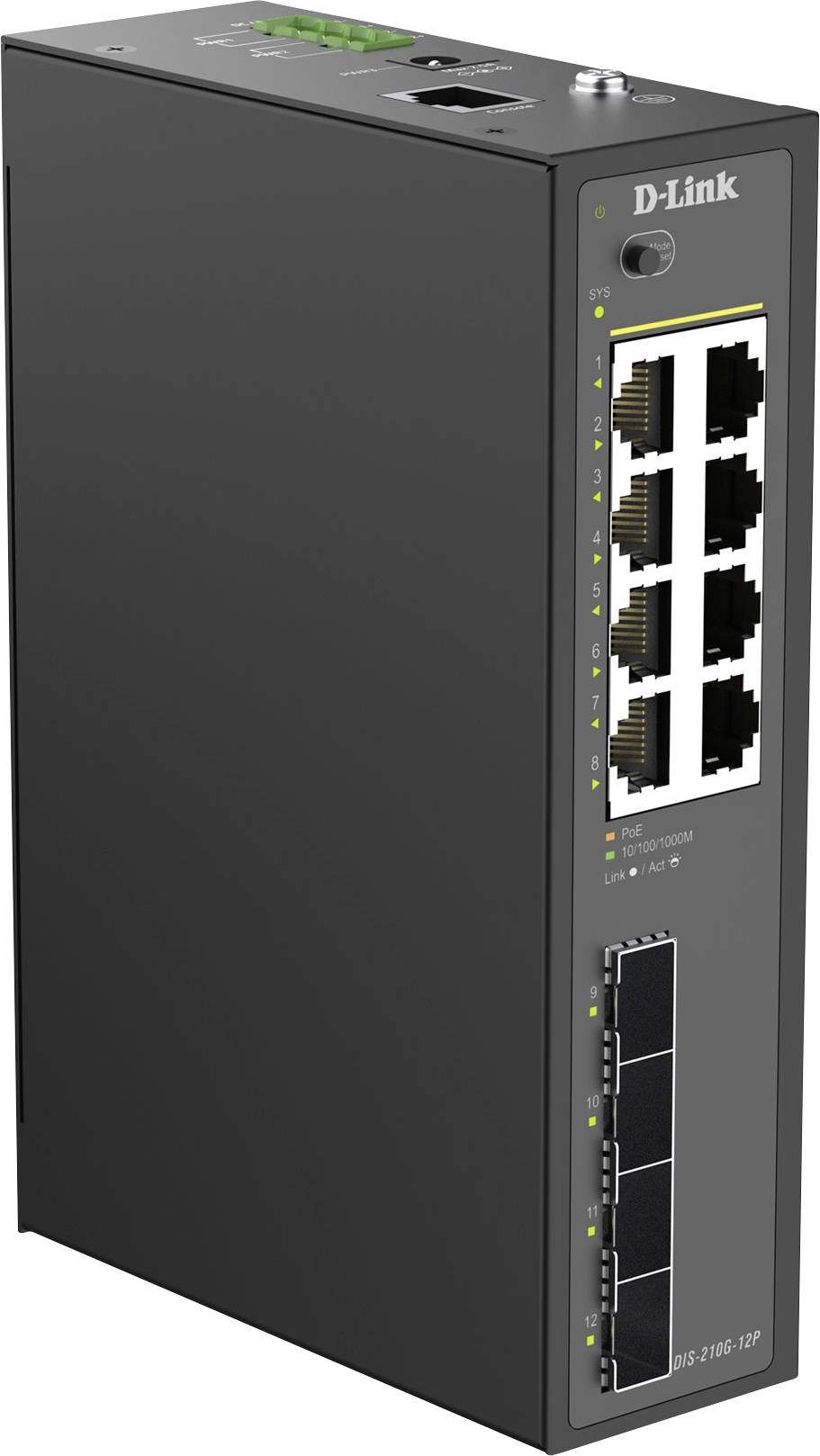

D-Link industrial network switch with eight Ethernet ports, status LEDs, and four small expansion ports on a black metal корпус.<br>

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

D-Link DIS-210G-12P network switch managed L2/L3 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) DIN rail black

Managed L2/L3
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 8
MAC address table: 8000 entries Routing/switching capacity: 24 Gb/s.
DIN rail;
DC power supply includes Power over Ethernet (PoE)

Technical specifications

Form factor DIN rail
Power source: Direct current

Product type: Industrial Ethernet switch

LAN transfer rate: 1000 MBit/s

Transfer rate: 24 MBit/s

Working principle: Managed switch

Ethernet ports: 12

PoE ports: 8

SFP ports: 4 x

10/100/1000 Mbps ports: 8 x

RS232 console ports: 1 x

Auto-uplink at each port: Yes

Jumbo frames: Yes

MAC addresses: 8000

Weight: 820 g

Width: 44 mm

Height: 164 mm

Depth: 107 mm

Type: DIS-210G-12P

: IP40

Factory colour: Black

Max. ambient temperature: 75 °C

Min. ambient temperature: -40 °C

Safety: SNMP
SNMPv2
SNMPv3

UKCA: yes

DIN rail mounting: yes

Operating temperature (T-T): -40 - 75 °C

Power over Ethernet plus (PoE+) ports quantity: 8

Basic switching RJ-45 Ethernet ports quantity: 8

Total Power over Ethernet (PoE) budget: 240 W

Switching capacity: 24 Gbit/s

Jumbo frames: 9000

Power over Ethernet (PoE) power per port: 30 W

SFP module slots quantity: 4

Power over Ethernet (PoE): yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Link aggregation: yes

Jumbo frames support: yes

MAC address table: 8000 Eintragungen

Number of VLANs: 4000

Operating relative humidity (H-H): 5 - 95 %

VLAN support: yes

10G support: no

Forwarding rate: 17.86 Mpps

Power consumption (max): 251.6 W

Power supply included: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3841571 D-Link DIS-210G-12P Industrial Ethernet switch 24 MBit/s

Description

The D-Link DIS-210G-12P industrial gigabit Smart managed PoE+ switch offers reliable high-speed networks and power supply via Ethernet for demanding industrial applications. With 8 PoE+ ports and 4 gigabit SFP uplinks it provides a PoE budget of 240W (up to 30W per port), Ideal for IP cameras, access points and VoIP phones. The IP40 metal casing, the fan-less design and the EMC-protection guarantee reliable operation at -40°C to 75°C. Dual DC inputs and 6 kV surge protection provide for a high system stability. Advanced Layer 2 functions ensure stable, secure networks in industrial automation, monitoring and edge networks.

This text is machine translated.
