Name: D-Link DIS-700G-28XS Industrial Ethernet switch 128 Gbit/s
Brand: D-Link
SKU: 3841576

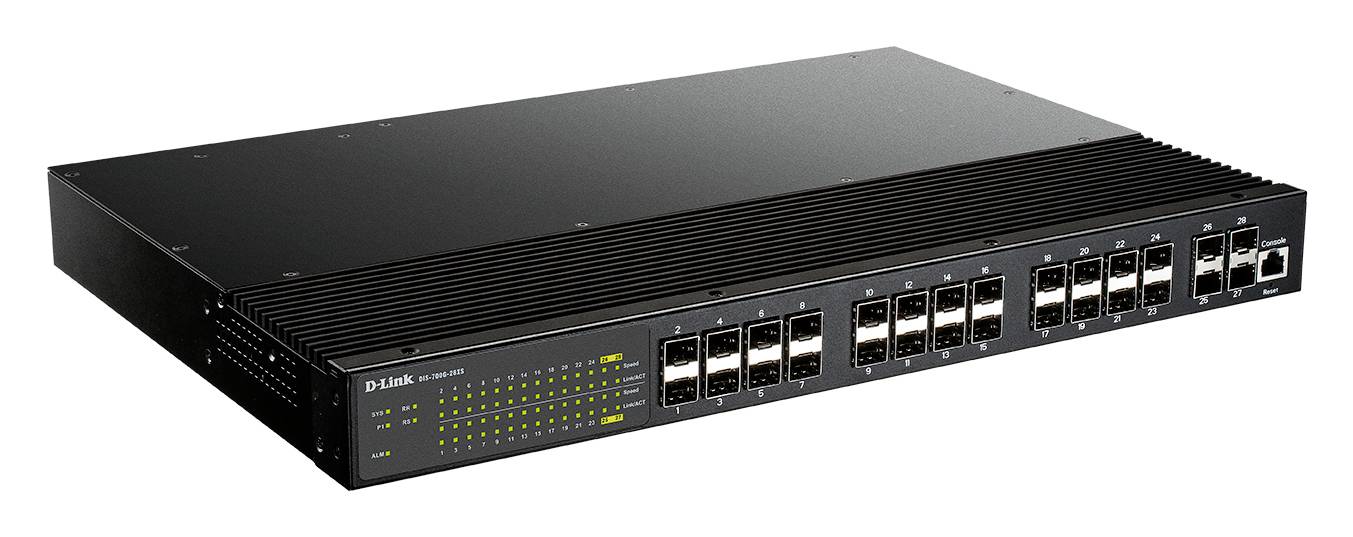

Black D-Link rackmount network switch with multiple Ethernet ports and status lights on the front panel.

D-Link network switch front panel with many Ethernet ports and status lights, used to connect multiple devices on a network.

Rear view of a black electronic device showing ventilation holes, ports including USB and audio, and a power inlet with power switches.

1/3

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

D-Link DIS-700G-28XS network switch managed L2+ 1U black

Managed L2+
Quality of Service (QoS) support
Console port RJ-45
10G support
MAC address table: 8000 entries
1U Rack-mounting

Technical specifications

Form factor: 1U

Product type: Industrial Ethernet switch

LAN transfer rate: 10000 MBit/s

Transfer rate: 128 Gbit/s

Working principle: Managed switch

Ethernet ports: 28

SFP+ ports: 4 x

SFP ports: 24 x

RS232 console ports: 1 x

Auto-uplink at each port: Yes

Jumbo frames: Yes

MAC addresses: 8000

Weight: 4.5 kg

Width: 440 mm

Height: 44 mm

Depth: 318.5 mm

Type: DIS-700G-28XS

Factory colour: Black

Max. ambient temperature: 65 °C

Min. ambient temperature: -10 °C

No. of USB A 2.0 ports: 1 x

Power consumption (ON): 35 W

Power supply (details): 100 - 240 V

Operating temperature (T-T): -10 - 65 °C

Traffic shaping: yes

Pallet gross width: 110 cm

Pallet gross length: 120 cm

Shipping (inner) case width: 35.7 cm

Shipping (inner) case length: 58.2 cm

Shipping (inner) case height: 46.8 cm

Shipping (inner) case gross weight: 18.8 kg

Products per shipping (inner) case: 3 Stück(e)

Shipping (inner) case net weight: 17.5 kg

SFP module slots quantity: 24

SFP+ module slots quantity: 4

Quality of Service (QoS) support: yes

Multicast support: yes

Pallet gross weight (air): 242.1 kg

Master (outer) cases per pallet (air): 12 Stück(e)

Products per pallet (air): 36 Stück(e)

Pallet height (air): 107.1 cm

Pallet gross weight (sea): 467.2 kg

Master (outer) cases per pallet (sea): 24 Stück(e)

Products per pallet (sea): 72 Stück(e)

Pallet height (sea): 2.01 m

Rack mounting: yes

MAC address table: 8000 Eintragungen

Operating relative humidity (H-H): 5 - 95 %

VLAN support: yes

10G support: yes

Package weight: 5.83 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3841576 D-Link DIS-700G-28XS Industrial Ethernet switch 128 Gbit/s

Description

The DIS-700G Industrial Layer 2+ Gigabit Managed Switches have been specially developed to withstand a wide temperature range, vibrations and impacts. These robust and still easy to set up switches have an outstanding protection against environmental items as compared to switches for commercial use. The robust design combined with high-availability network capabilities makes the switches an essential part of any network infrastructure for the growing network needs of Smart cities, city-wide surveillance systems and wireless connectivity.

This text is machine translated.

Scope of delivery

DIS-700G-28XS Rack Mount Kit, printed installation guide, manual and software on CD, two internal redundant DC power supplies 20-58VDC, ALM Terminal Block, RS232 Console Cable (RJ-45)

Description

Scope of delivery

DIS-700G-28XS Rack Mount Kit, printed installation guide, manual and software on CD, two internal redundant DC power supplies 20-58VDC, ALM Terminal Block, RS232 Console Cable (RJ-45)
