Name: Dasqua 2015-2405 + 8511-0060 Digital caliper 150 mm IP67
Brand: Dasqua
SKU: 3205398

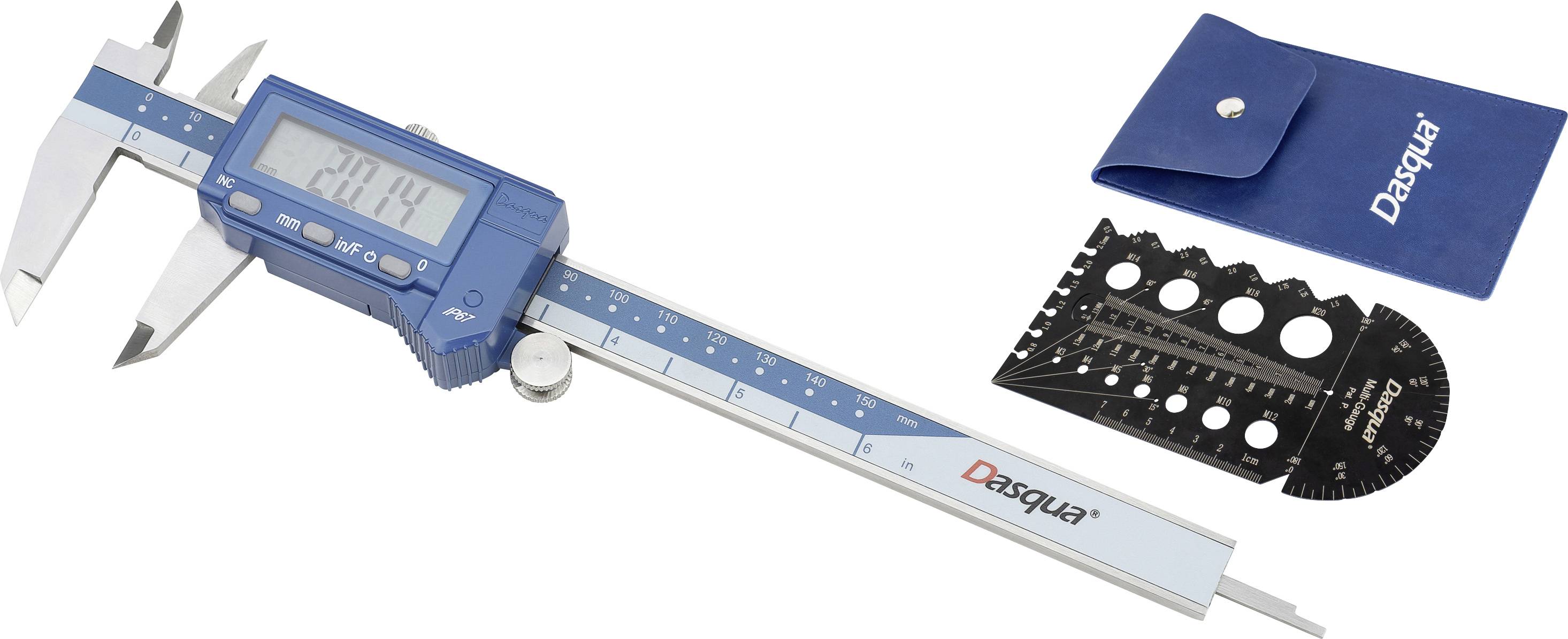

Electronic digital calliper with digital display showing '20.14'. Beside it a blue case and measuring templates in various shapes.

A digital calliper displays '20.04' on its screen. The device is blue and silver, with a scale for precise measurement.

A digital calliper with a blue handle and metric scale, used for precise measurement of lengths and diameters.

Digital calliper by Dasqua on a blue case with packaging in the background; display shows '28.14'.

Digital calliper by Dasqua on a blue case, cardboard packaging in the background and guarantee certificate beside it.

A digital calliper displays a measurement of 10 millimetres on a screen. Key feature: precise measurement.

A silver-coloured folding rule, partially extended, on a white surface.

A digital vernier calliper with a silver scale in the foreground, showing various measurement units on a metal plate.

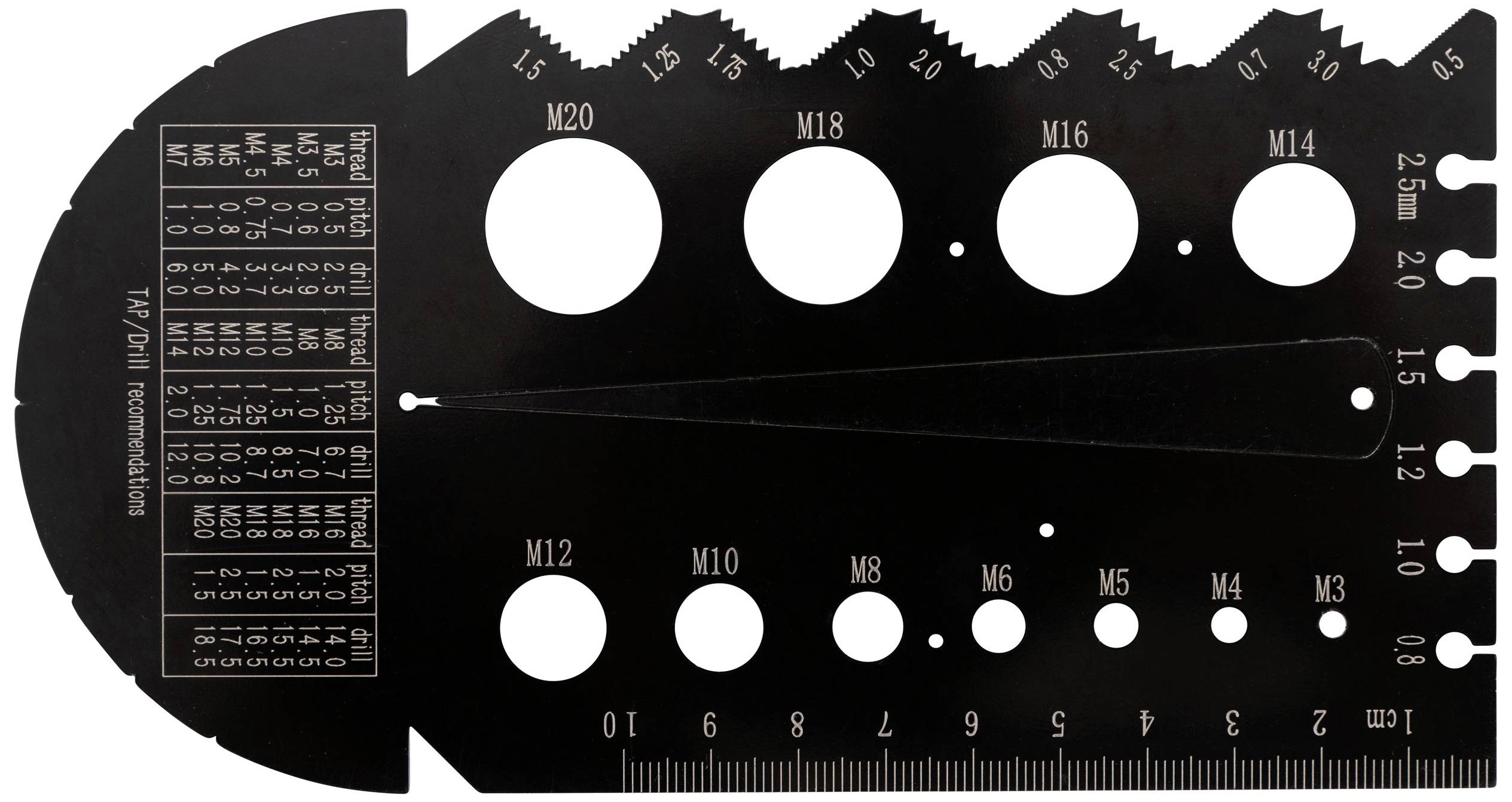

'Metal screw gauge with various hole sizes, thread pitch measurement teeth and a linear scale along the bottom edge.'

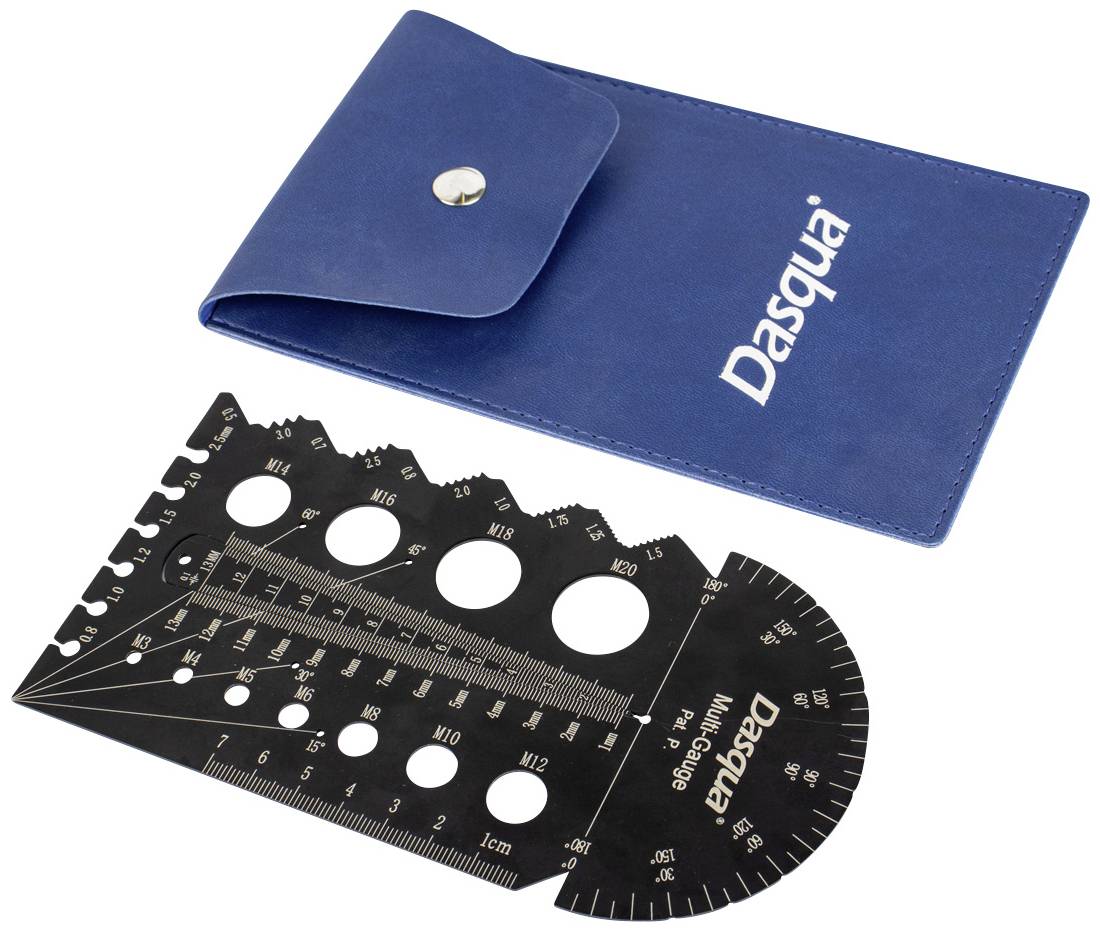

Metal measuring tool in black colour with various shapes and holes, including blue case, marked with 'Dasqua'.

A person wearing gloves is measuring a metal part with a digital calliper. The display shows '7.10'. The background shows workshop supplies.

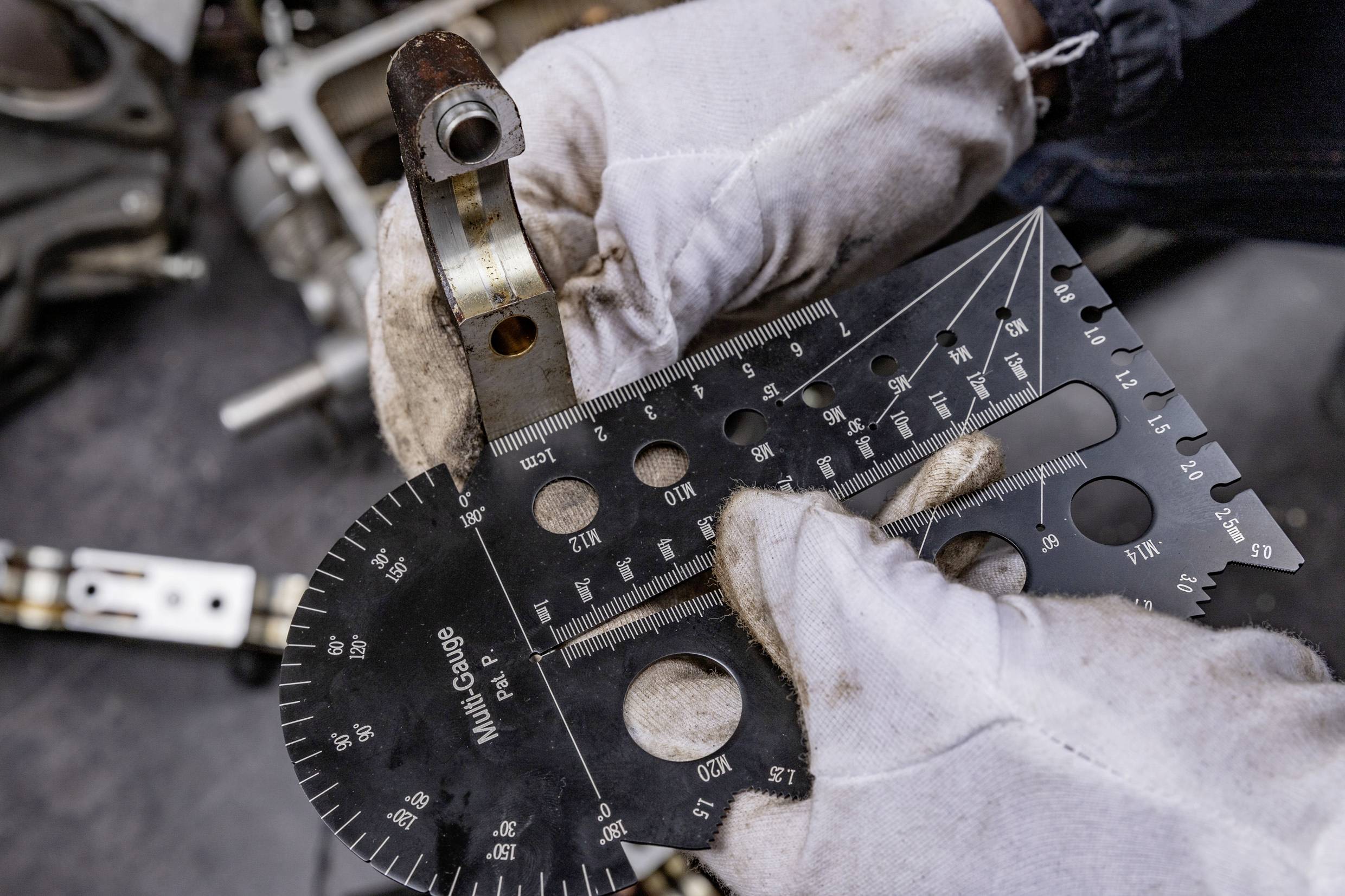

Two gloved hands are holding an angle measuring device to check the size of a metal component. Tools are lying in the background.

1/12

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Oil resistant IP67 digital caliper + screws and thread gauge

Free screw and thread stencil

Technical specifications

Product type: Digital caliper

Reading range (max.): 150 mm

Reading: 0.01 mm

Length: 272 mm

: IP67

DIN standard: DIN 862

Material: Stainless steel

Weight: 0.45 kg

: Manufacturer's standards (no certificate)

Type: 2015-2405 + 8511-0060

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3205398 Dasqua 2015-2405 + 8511-0060 Digital caliper 150 mm IP67

Description

Advanced technology of the 4th generation with inductive measurement electronics.
Sealed electronic components prevent damage from penetrating liquid.
Accuracy: Up to 0.01 mm

Thread and bolt gauge
Check the slope of screw threads with 10 - 40 TPI
The thread diameter can also be checked (from #5 to #12 and ¼" to 5/8" in 1/16" steps plus 3/4").
The length of a screw thread can be measured with the side of the multi-function gauge.
Wire measurement function for sizing cables, washers and sheet metal with #3 to #24 and 0.03" to 0.035"
Quickly mark lines with hole marks between 15° and 60° in 15° increments
