deeper Deeper Chirp+4 FNG0071 Motion detector transmitter
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 459.00 / piece)
€ 459.00
incl. VAT
14-day return policy included
Highlights & Details

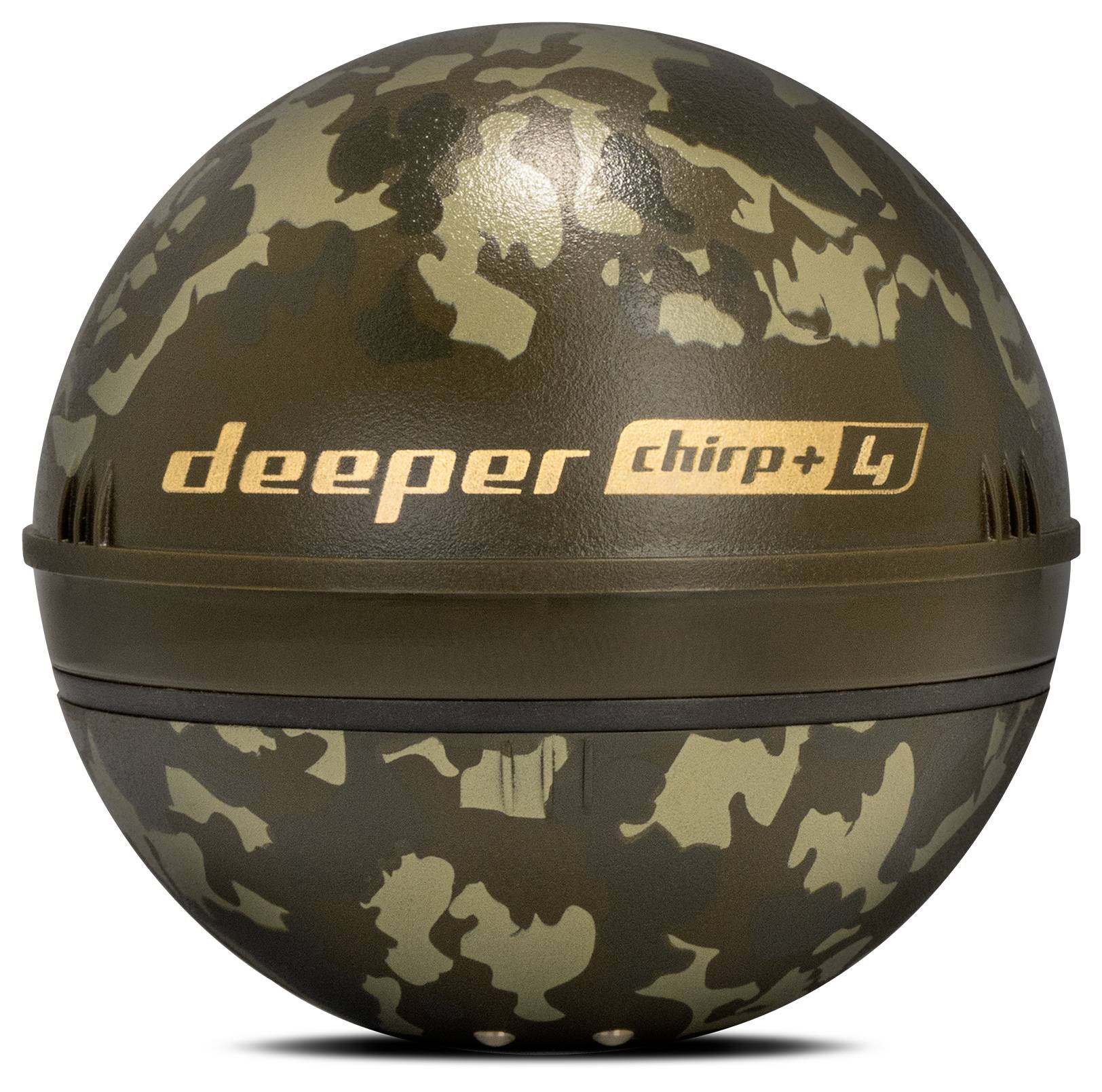

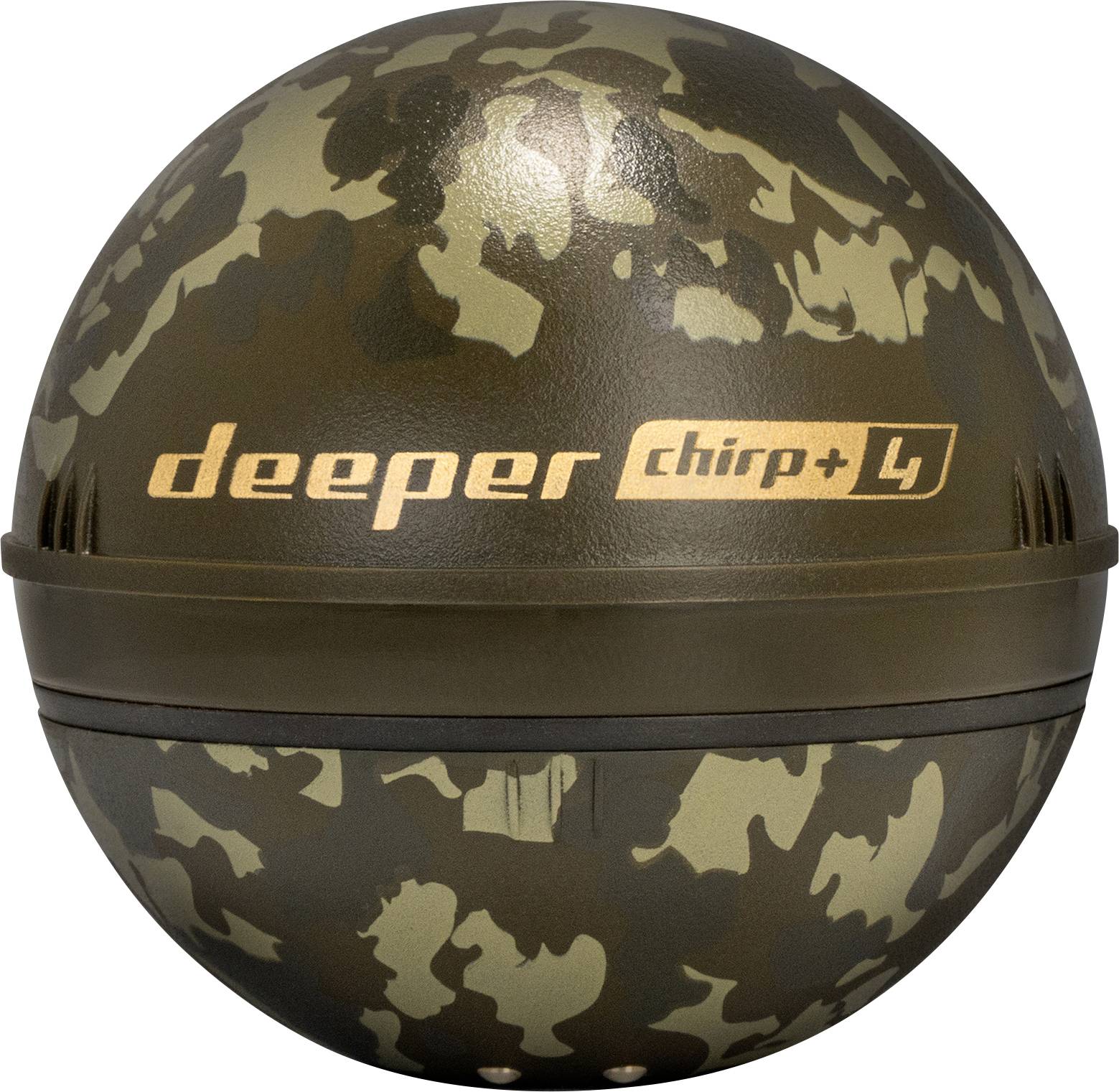

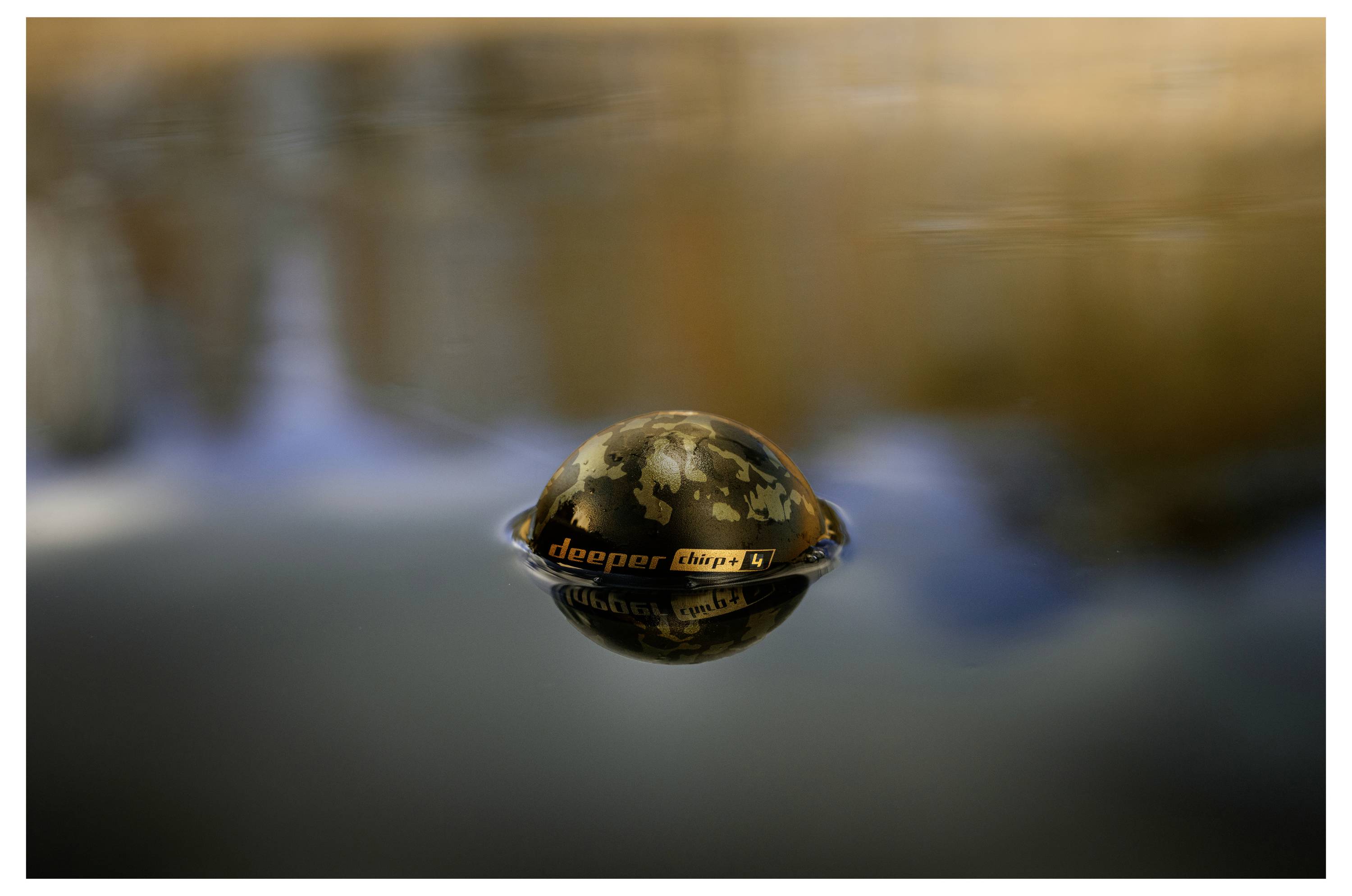

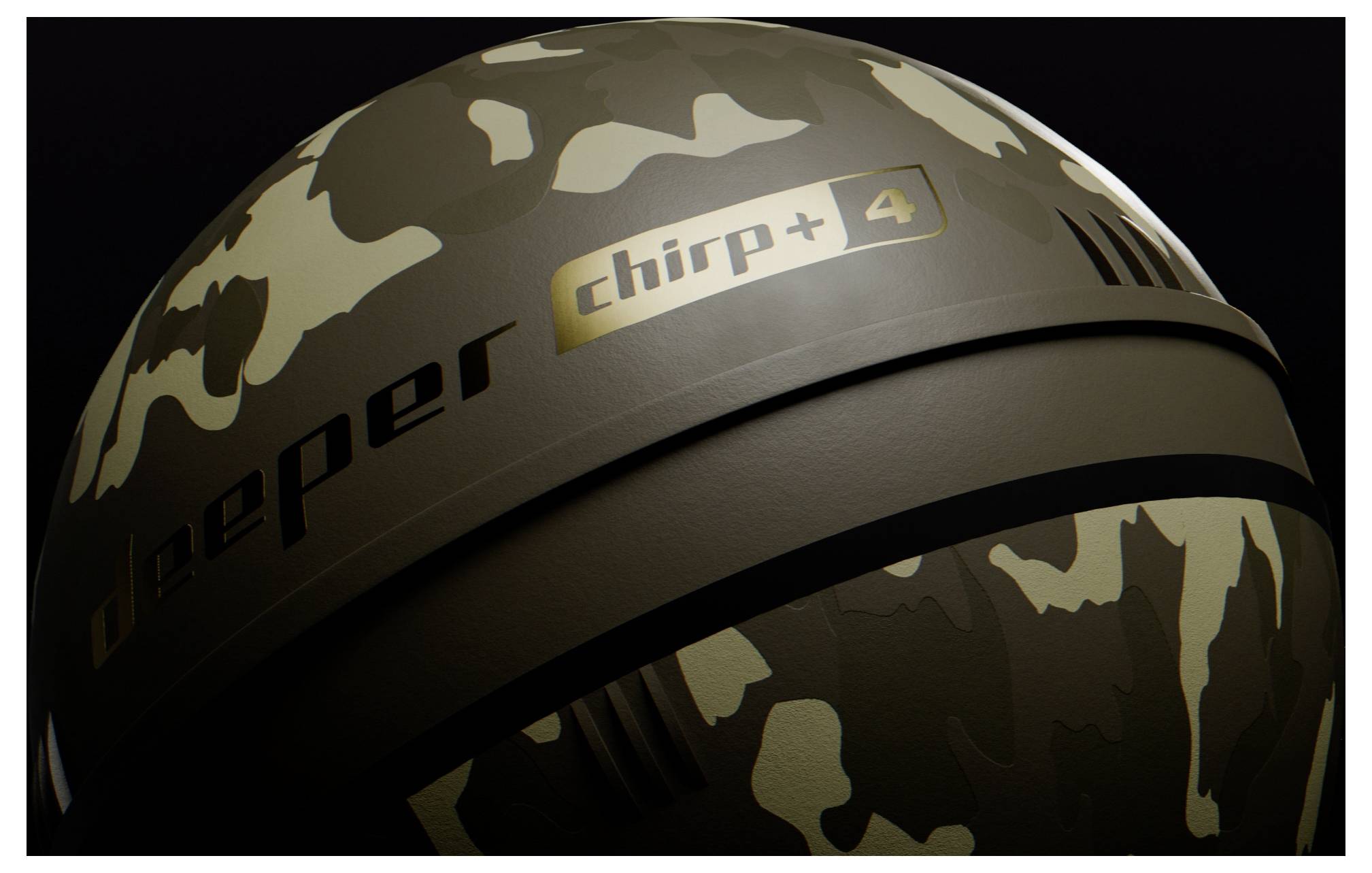

deeper Smart sonar Chirp+ 4
- Range up to 120 m
- Scan-depth 100 m
- Battery life: 15 hours
- Weight: 94 g
- Min Depth 15 cm
- Target separation 1 cm
- Connection: Wi-Fi, no Internet required
- Charging: Via USB-C.
Technical specifications
- Wi-Fi connectivity / built-in GPS (GNSS support: GPS, GLONASS, Galileo, Beidouu, QZSS)
- Throw distance Up to 120 m.
- Minimum depth: 0.15 m.
- Maximum depth: 100 m.
- Weight 94 g
- Sonar-type 3-frequency CHIRP
- Beam angle / frequencies
- Narrow: 7° @ 675 kHz CHIRP, Average: 20° @ 240 kHz CHIRP, Wide: 47° @ 100 kHz CHIRP
- Target separation 1 cm (narrow beam), 2.4 cm (medium and wide beam)
- Scanning rate Up to 15 scans / second
- Operating temperature 20 °C to 40 °C.
- Battery type rechargeable Li-ion battery (3.8 V, 1300 mAh)
- Operating time
- GPS ON: Up to 11 hours, GPS OFF: Up to 15 hours
- Recharging time
- Quick charge: 80% in 60 min
- Complete charging: 100% in 110 min.
- Sonar modes Standard (shore), boat, ice fishing, fodder boat (usable with RC-Boat)
- Functions 2D/3D-mapping via the APP, integrated water temperature sensor, fish-ID (display as fish symbols), ground contours, detection of underwater vegetation
- Product type
Motion detector transmitter
- Dim
(Ø) 6.5 cm
- Weight
94 g
- Factory colour
Brown
Green
- Material
Acrylonitrile butadiene styrene
- (Ø)
6.5 cm
- Range (max.)
120 m
- Power supply (LOV)
rechargeable
Documents & Downloads
Datasheet
Datasheet 3780785 deeper Deeper Chirp+4 FNG0071 Motion detector transmitter
User & Safety Instructions
User & Safety Instructions 3780785 deeper Deeper Chirp+4 FNG0071 Motion detector transmitter
Information
Information 3780785 deeper Deeper Chirp+4 FNG0071 Motion detector transmitter
Security datasheet
Security datasheet 3780785 deeper Deeper Chirp+4 FNG0071 Motion detector transmitter
Description

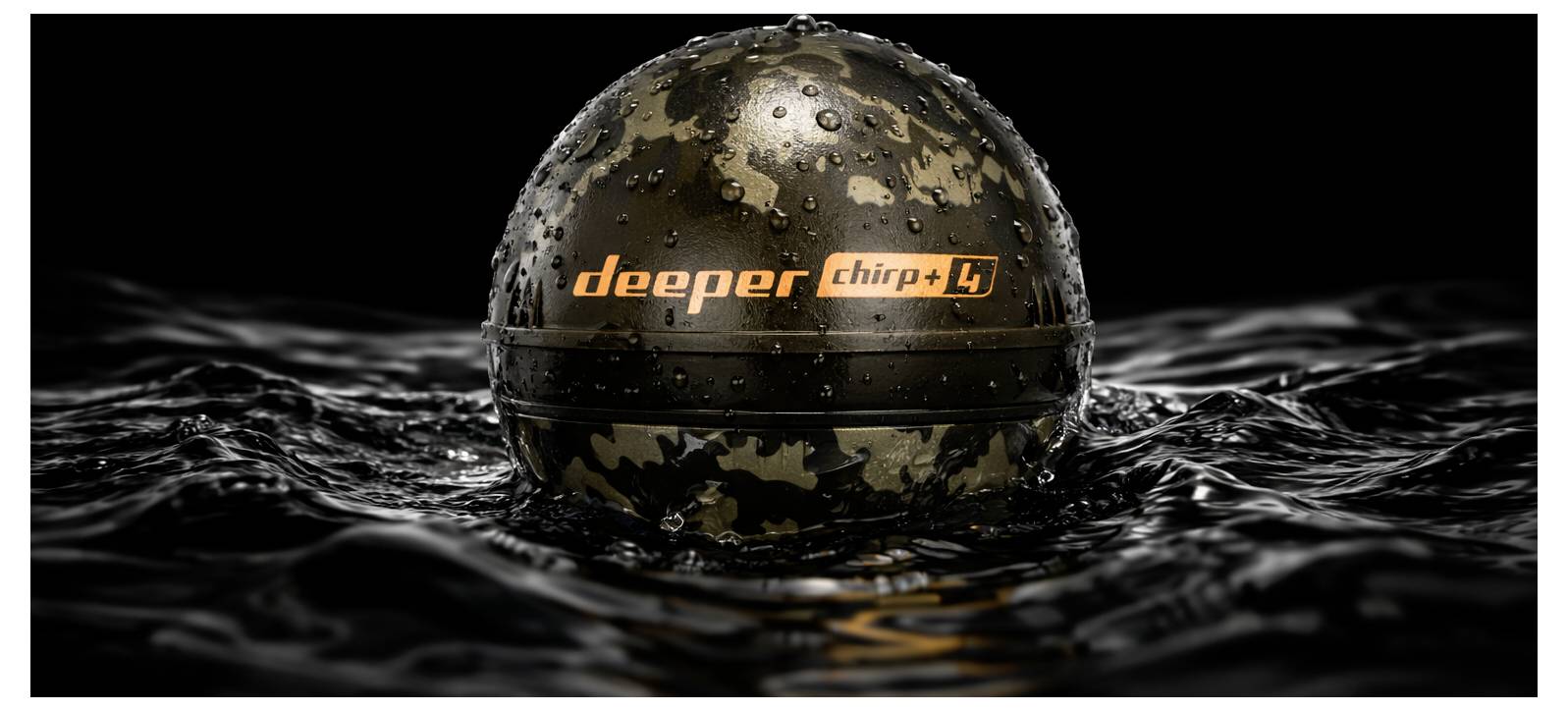

AI-supported fish detection, personal maps of the soil hardness and vegetation in 2D & 3D as well as 3-frequency CHIRP technology. The most advanced ejectable sonar of all time.

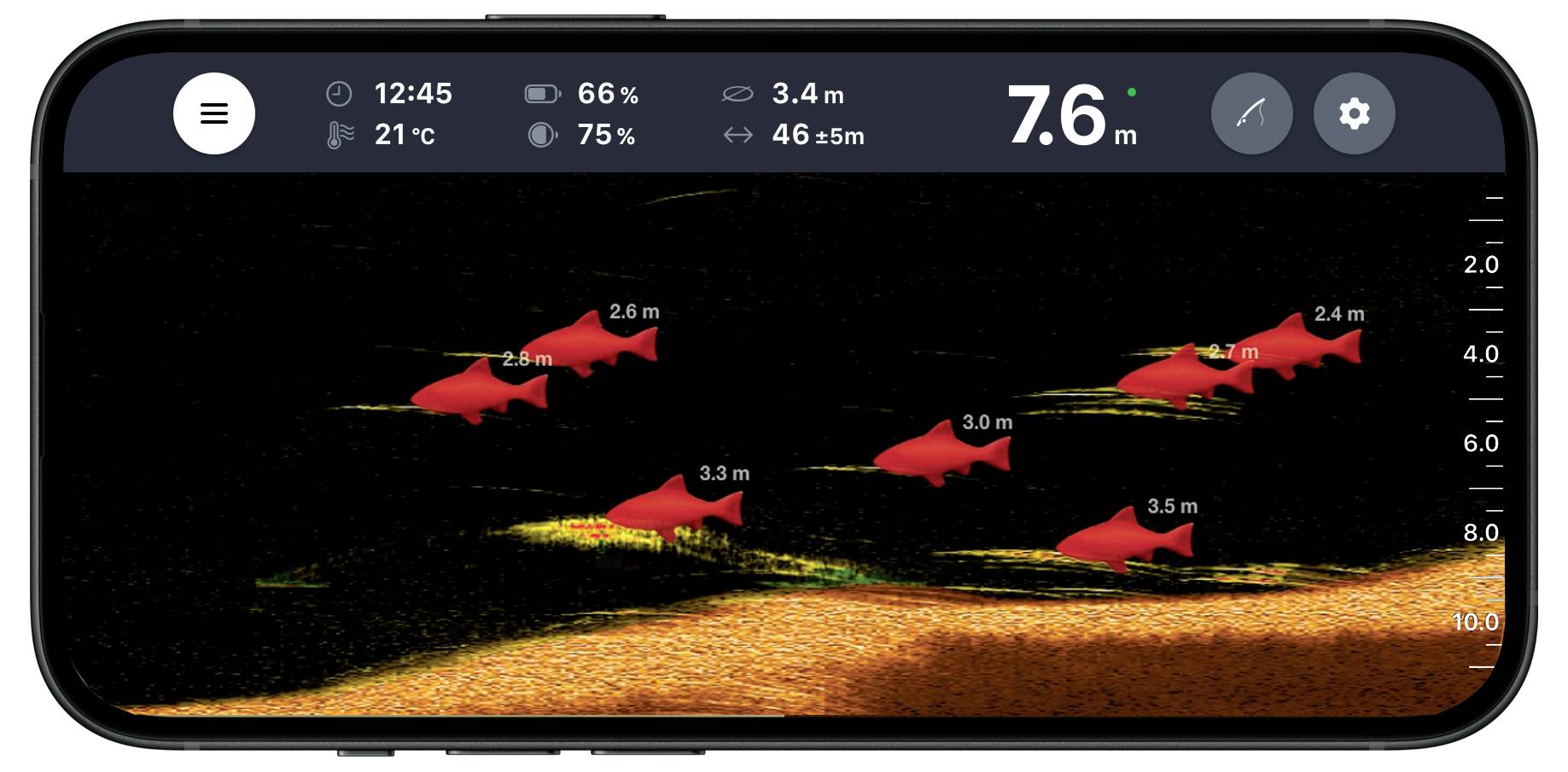

KI-supported fish recognition
No more guesswork, WAS is visible on your sonar screen. The CHIRP+ 4's built-in AI interprets raw data in real time and automatically detects fish instead of disturbances, so that you can concentrate on fishing.
AI performance improves continuously with ongoing updates

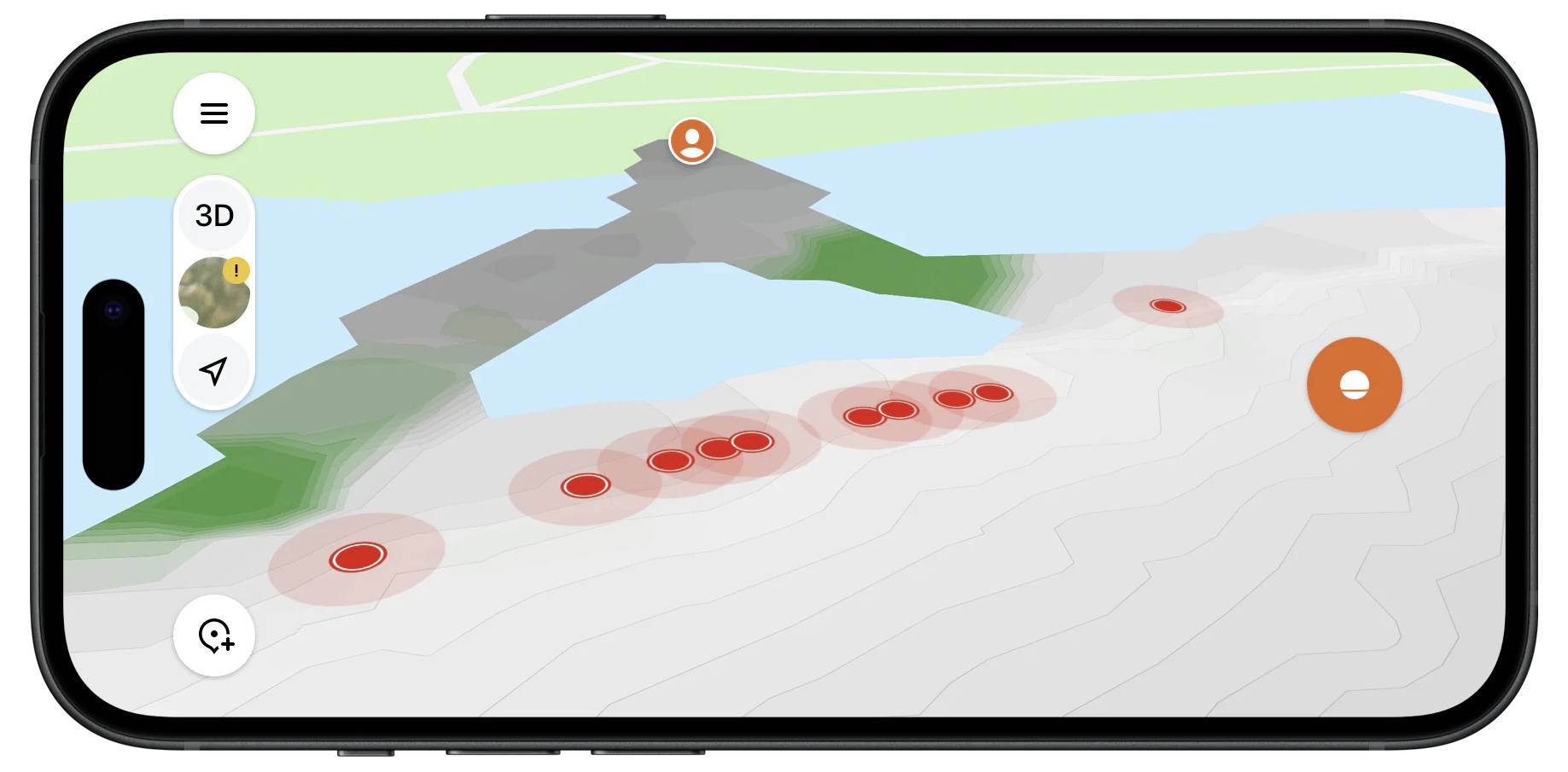

Fish locations on your cards

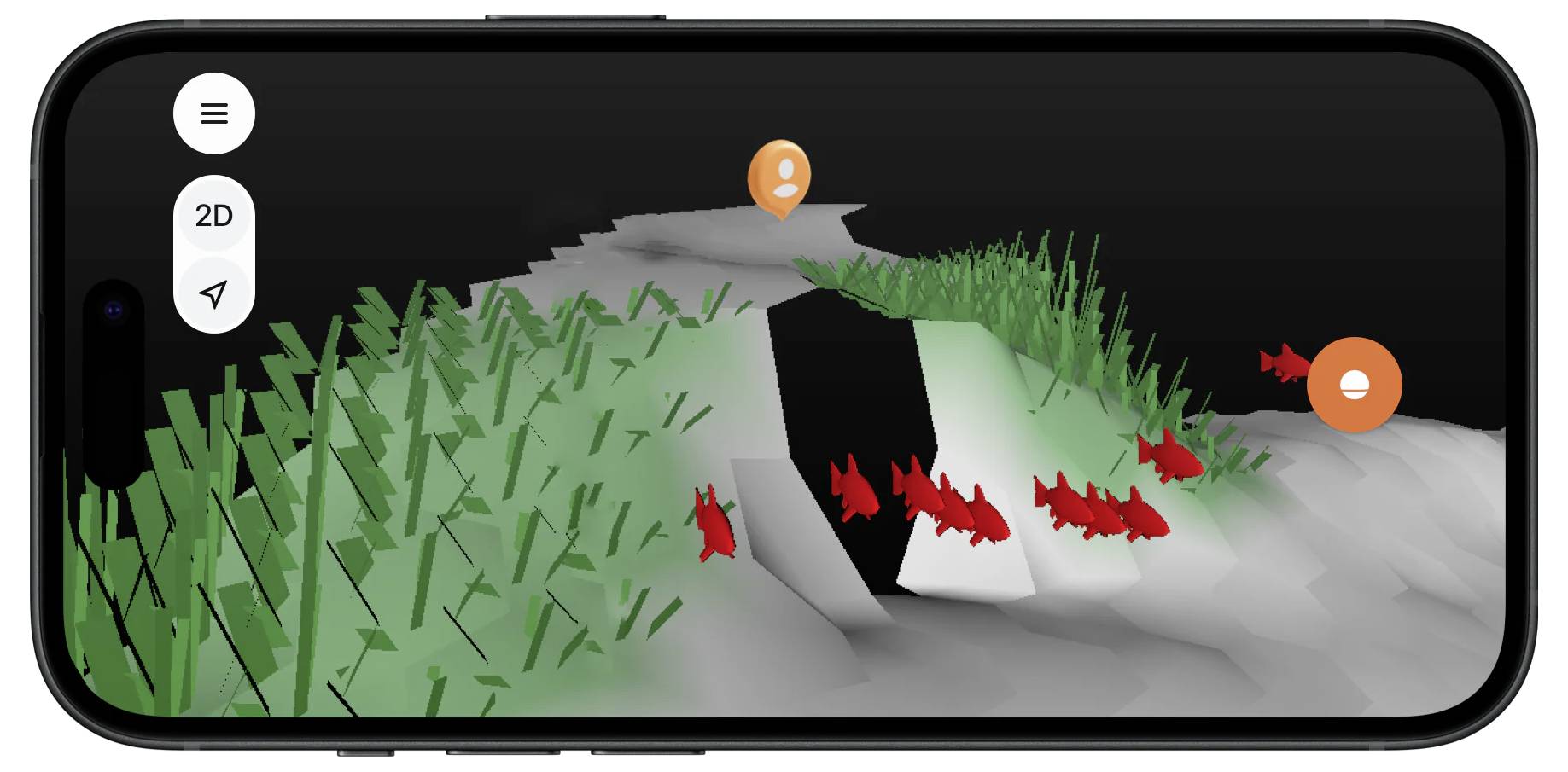

With CHIRP+ 4 you can see recognized fish not only during the live scan, but also on your stored maps in 2D and 3D.
Powerful and variable CHIRP technology
Choose from 3 beam widths and analyze soil structure, vegetation and depth up to 100 m in one throw.
4x more pixels in shallow water
With 4x more pixels, fish, breaks and obstacles with a depth of up to 5 m can be recognized more easily.
Integrated triple-beam system
Choose between 3 jet widths and analyze the water floor in exceptional clarity.

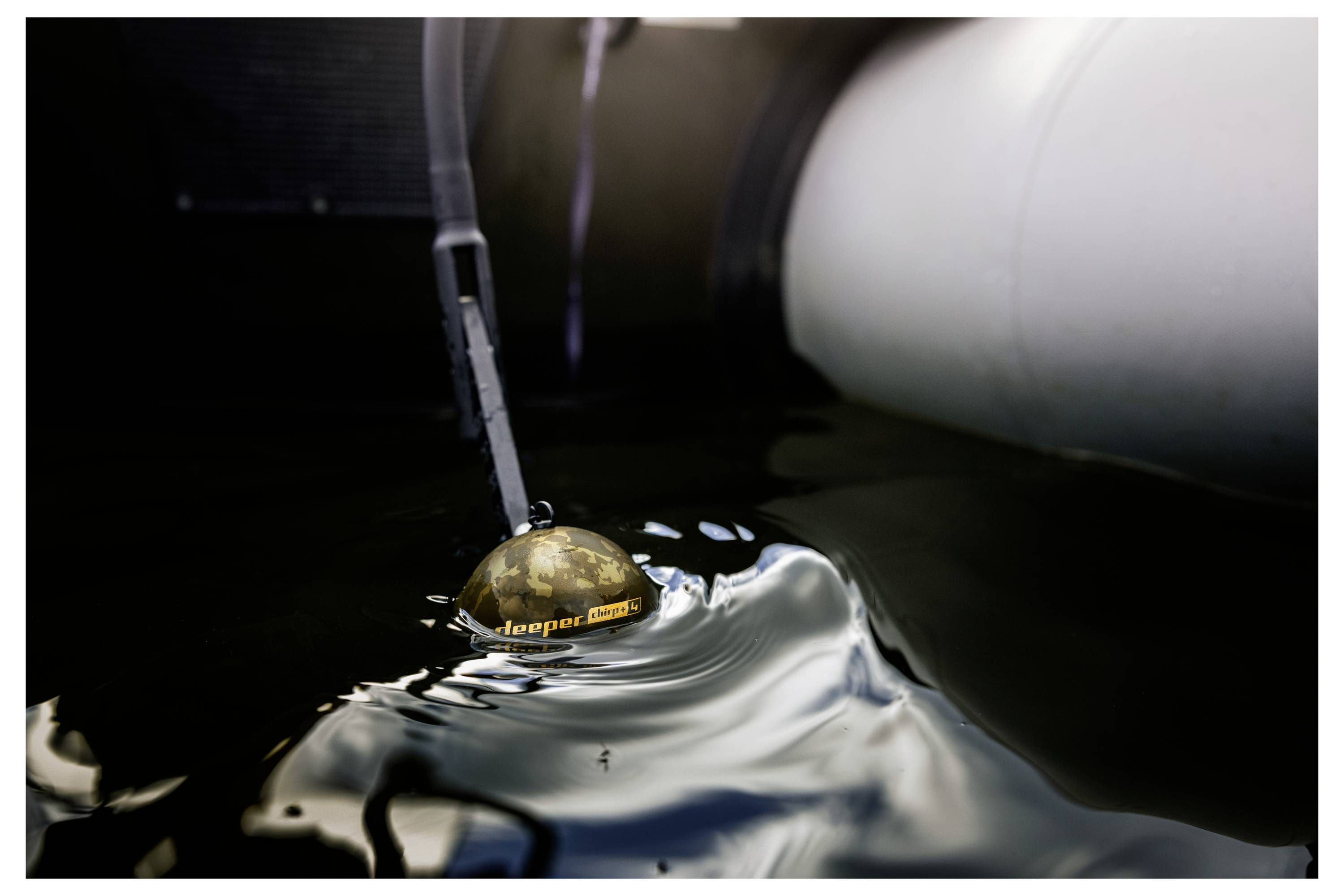

Perfect for any fishing style
From the shore, from the boat or in the winter - the deeper CHIRP+ 4 fits to your style.
Don't forget the accessories! With deeper accessories, fishing becomes even better.

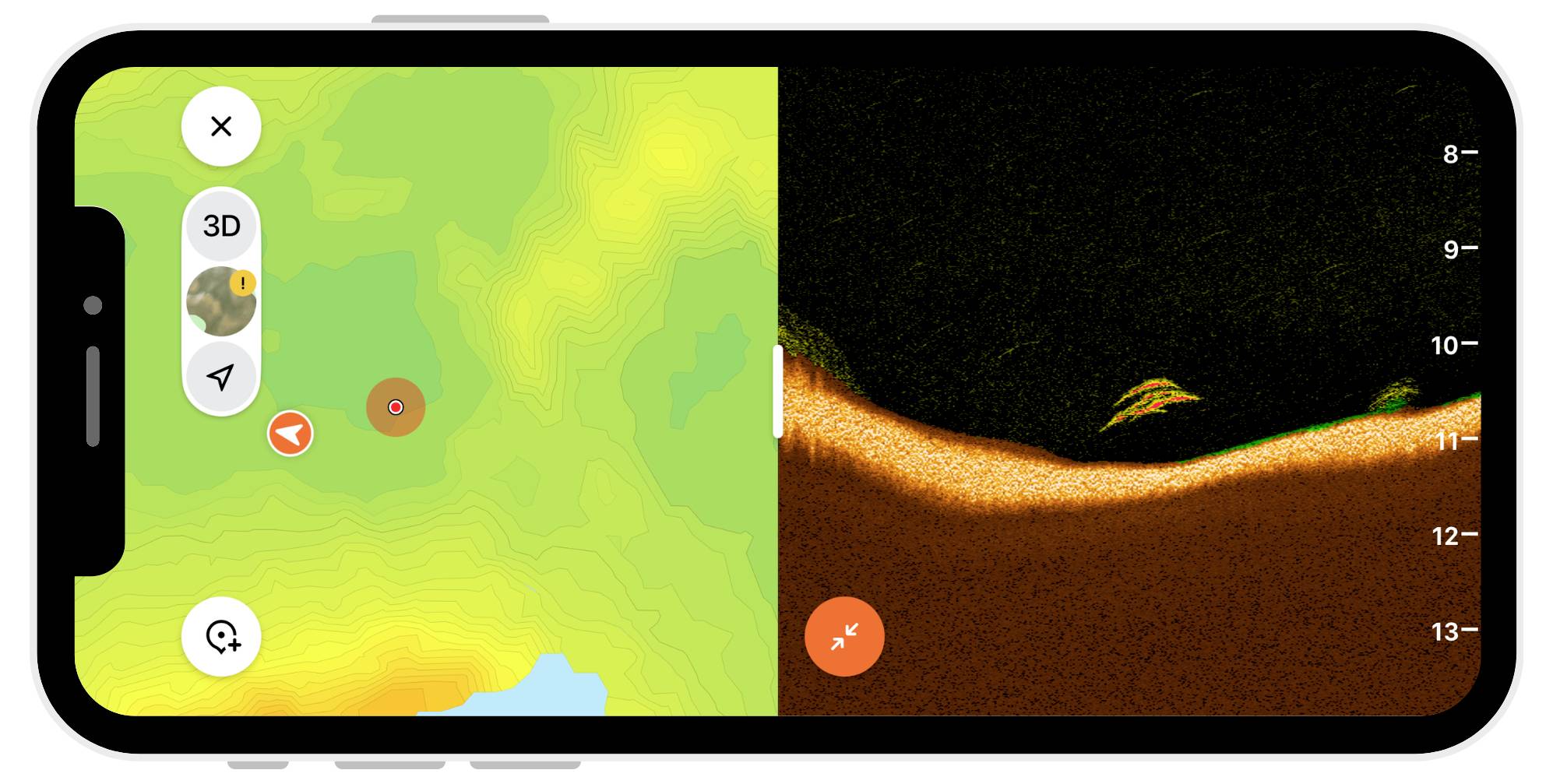

Powered by the Fish deeper APP
See sonar data in real time and check previous scans on multiple devices.
Unlimited cloud storage for scans and spots.
Access 2D and 3D community maps with Maps+
This text is machine translated.
KI-supported fish recognition
No more guesswork, WAS is visible on your sonar screen. The CHIRP+ 4's built-in AI interprets raw data in real time and automatically detects fish instead of disturbances, so that you can concentrate on fishing.
AI performance improves continuously with ongoing updates
Fish locations on your cards
With CHIRP+ 4 you can see recognized fish not only during the live scan, but also on your stored maps in 2D and 3D.
Powerful and variable CHIRP technology
Choose from 3 beam widths and analyze soil structure, vegetation and depth up to 100 m in one throw.
4x more pixels in shallow water
With 4x more pixels, fish, breaks and obstacles with a depth of up to 5 m can be recognized more easily.
Integrated triple-beam system
Choose between 3 jet widths and analyze the water floor in exceptional clarity.
Perfect for any fishing style
From the shore, from the boat or in the winter - the deeper CHIRP+ 4 fits to your style.
Don't forget the accessories! With deeper accessories, fishing becomes even better.
Powered by the Fish deeper APP
See sonar data in real time and check previous scans on multiple devices.
Unlimited cloud storage for scans and spots.
Access 2D and 3D community maps with Maps+
This text is machine translated.
