1/3
Deko Light 843340 1 pc(s)
EAN:
Part number:
Item no:
Number
Total (€ 41.17 / piece)
€ 41.17
plus VAT.
Highlights & Details
Decorative-Light, Dimmer High volt, DALI, DALI, Triac-Dimmer
- Brightness can be dimmed
- Compatible with DALI1 and DALI2 (1 channel)
- Push dim function via button (8 - 230V AC)
- Minimum adjustable brightness (only push function)
- Output 400 W
Technical specifications
- Control technology: Intelli Push-Dim, ZigBee 3.0, RF-Smart
- With phase angle dimmer
- Voltage 100 – 240 V
- Output 1 - 400 W
- Protection class: IP20

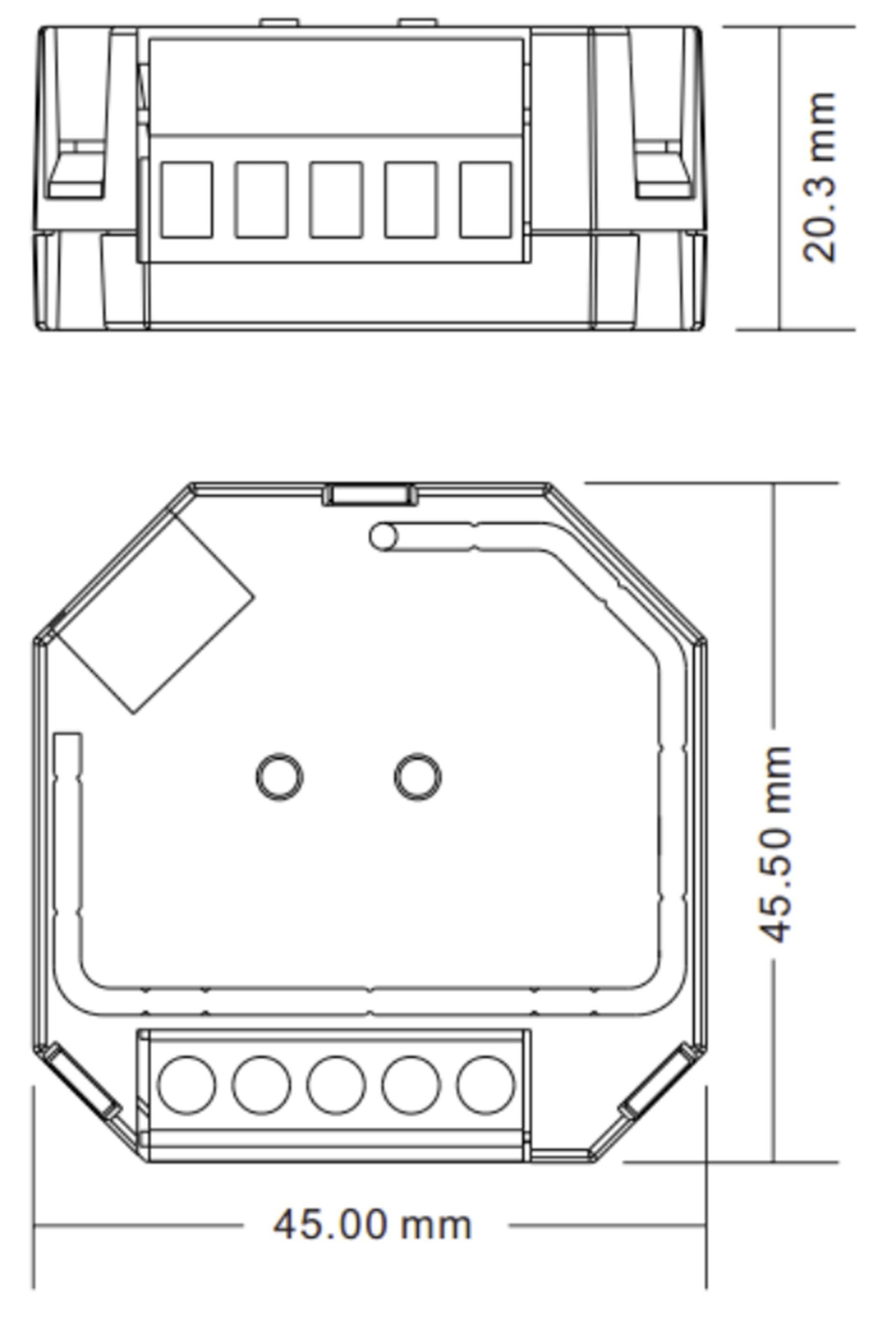

- Dimensions 46 x 46 x 21 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3152017 Deko Light 843340 1 pc(s)
Description
The DALI Triac dimmer allows precise adjustment of the brightness of dimmable lights. Compatible with DALI1 and DALI2 as well as with a push-dim function via switch (8-230V AC), it offers a flexible solution for different application areas. With the option of adjusting the minimum brightness (push function only) and a small size, it is ideally suited for the DALI-extension or for the conversion of triac dimmable lamps. Power is up to 200W/230V for LED (C-load) or 400W / 230V for halogen (R-load) without limit on the number of bulbs.
This text is machine translated.
This text is machine translated.
Features
- Dimmable LED lights and power supplies: Power LED (C-load) 200W/230V/max. 10x LM or ballasts or halogen (R-load) 400W/230V not limit the number of bulbs. Push-Dim (8-230 V/AC) maximum cable length 80 m.
- Adjustable minimum brightness (push-dim only)
- 1/DALI1/DALI2, DT6, 2 CHANNELS
- Power consumption on the Dali-Bus: Max. 2 mA
- Due to small size, ideal for DALI expansion/conversion or Installed in/from triac dimmable lights
Scope of delivery
- Dimmer
- User manual.
