Delock Series Cable [1x D-SUB socket 9-pin - 1x D-SUB socket 9-pin] 1 m Black
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 3.77 / piece)
€ 3.77
plus VAT.
14 days return policy included

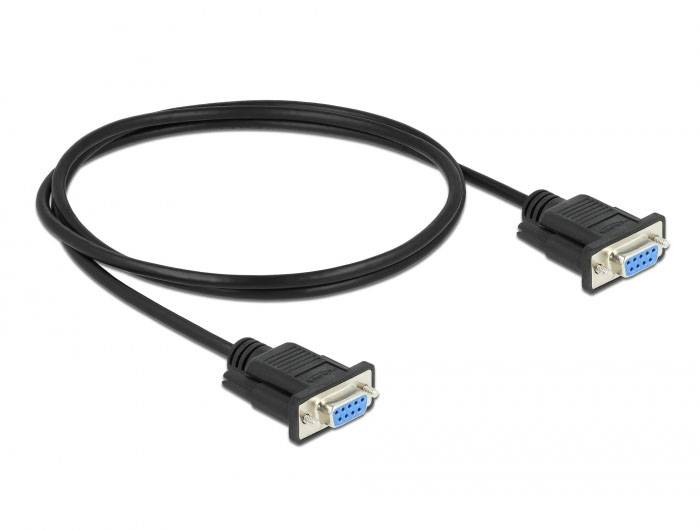

Delock serial cable RS-232 D-SUB9 socket to socket zero modem with narrow connector housing 1 m
Highlights & Details
- 1 m).
- RS-232 Sub-D9 Female
- RS-232 Sub-D9 Female
Technical specifications
- Connection 1: RS-232 Sub-D9
- Connection 2: RS-232 Sub-D9
- Product type
Series Cable
- Connection type
Series
- No. of A connectors
1 x
- Type A
D-SUB socket 9-pin
- No. of B connections
1 x
- Type B
D-SUB socket 9-pin
- Cable length
1 m
- Factory colour
Black
- Connector version
straight
28 AWG
- Cable use
Series
- Version
Cable
- Cable design
Round
- UKCA
yes
- Quantity per pack
1 Stück(e)
Documents & Downloads
Datasheet
Datasheet 3381175 Delock Series Cable [1x D-SUB socket 9-pin - 1x D-SUB socket 9-pin] 1 m Black
User & Safety Instructions
User & Safety Instructions 3381175 Delock Series Cable [1x D-SUB socket 9-pin - 1x D-SUB socket 9-pin] 1 m Black
Information
Information 3381175 Delock Series Cable [1x D-SUB socket 9-pin - 1x D-SUB socket 9-pin] 1 m Black
Information 3381175 Delock Series Cable [1x D-SUB socket 9-pin - 1x D-SUB socket 9-pin] 1 m Black
Description
This serial cable from Delock is a fully wired null modem cable for printers, measuring instruments, converters, RS-232 hubs, patch panels etc. With this cable RS-232 devices can be connected with each other for data exchange.

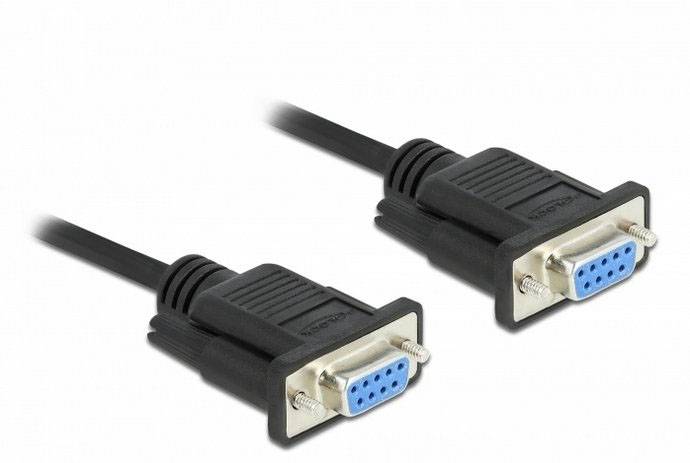

Mini Sub-D9 connection

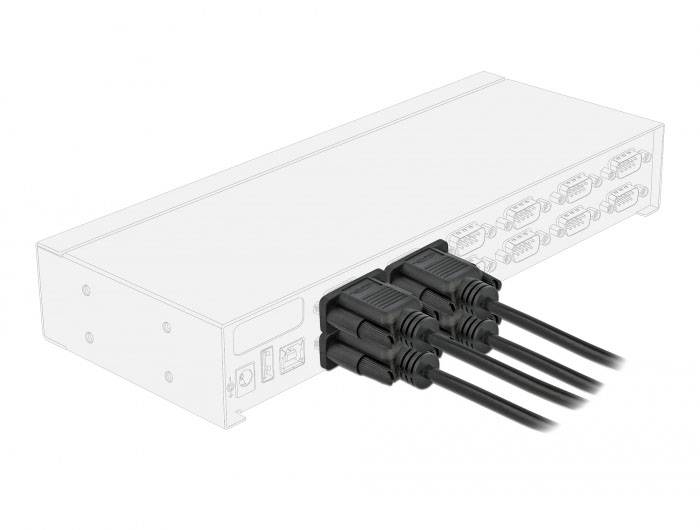

This cable fits at every RS-232 connection, because the mini Sub-D9 connector (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections lying directly next to each other can be used.
This text is machine translated.
Mini Sub-D9 connection
This cable fits at every RS-232 connection, because the mini Sub-D9 connector (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections lying directly next to each other can be used.
This text is machine translated.
Features
- Connections:
- 1 x serial D-SUB9 socket with screws >
- 1 x serial D-SUB9 socket with screws
- Wire cross-section 28 AWG
- Fully wired null modem cable
- Pin assignment: 1+6 – 4, 2 – 3, 3 – 2, 4 – 1+6, 5 – 5, 7 – 8, 8 – 7, shielded
- Colour, black
- Insulation PVC
- Screw type #4-40 UNC
- Cable diameter: Approx. 5 mm
- Cable length incl. connections: Approx. 1 m.
