Delock Series Cable [1x RS232 socket - 1x RS232 socket] 0.5 m Black
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 4.61
3
5% = € 0.21
€ 4.40
5
6% = € 0.29
€ 4.32
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 4.61 / piece)
€ 4.61
plus VAT.
14 days return policy included

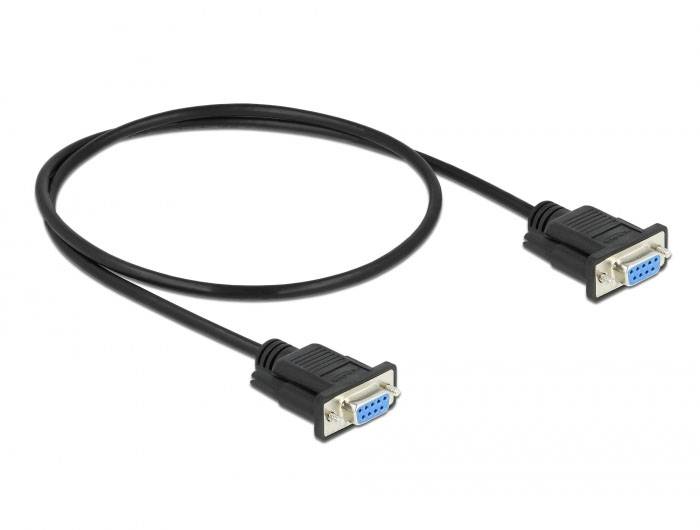

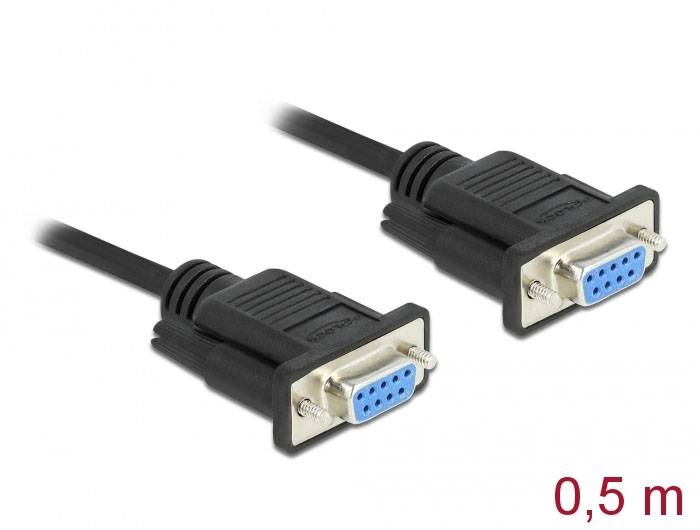

Delock serial cable RS-232 D-SUB9 socket to socket zero modem with narrow connector housing 0.5 m
Highlights & Details
- 0.5 m
- RS-232 Male
- RS-232 Male
Technical specifications
- Connection 1 RS-232
- Connection 2 RS-232
- Product type
Series Cable
- Connection type
Series
- No. of A connectors
1 x
- Type A
RS232 socket
- No. of B connections
1 x
- Type B
RS232 socket
- Cable length
0.5 m
- Factory colour
Black
- Connector version
straight
28 AWG
- Cable use
Series
- Version
Cable
- Cable design
Round
- Connections
USB-A socket
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3380420 Delock Series Cable [1x RS232 socket - 1x RS232 socket] 0.5 m Black
Description
This serial cable from Delock is a fully wired null modem cable for printers, measuring instruments, converters, RS-232 hubs, patch panels etc. With this cable RS-232 devices can be connected with each other for data exchange.

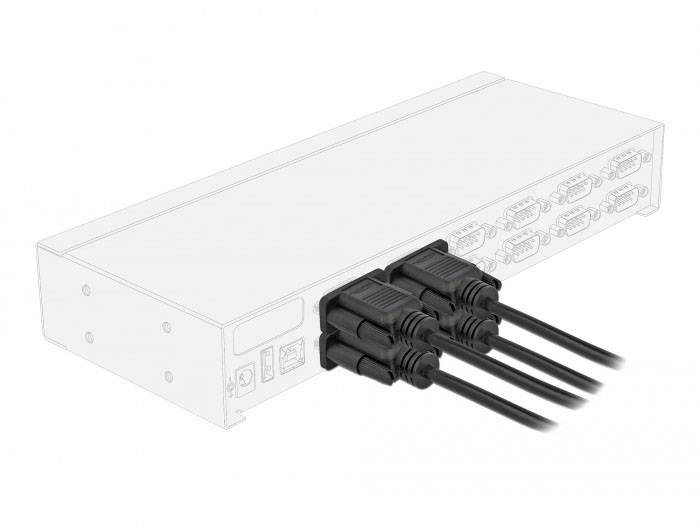

Mini D-SUB9 connection
These cables fit any RS-232 connection, since the mini D-SUB9 plug (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections lying directly next to each other can be used.
This text is machine translated.
Mini D-SUB9 connection
These cables fit any RS-232 connection, since the mini D-SUB9 plug (44 x 33.3 x 15 mm) are small and compact. In this way, RS-232 connections lying directly next to each other can be used.
This text is machine translated.
Features
- Connections:
- 1 x serial D-SUB9 socket with screws >
- 1 x serial D-SUB9 socket with screws
- Wire cross-section 28 AWG
- Fully wired null modem cable
- Pin assignment: 1+6 – 4, 2 – 3, 3 – 2, 4 – 1+6, 5 – 5, 7 – 8, 8 – 7, shielded
- Colour, black
- Insulation PVC
- Screw type #4-40 UNC
- Cable diameter: Approx. 5 mm
- Cable length incl. connections: Approx. 0.5 m.
