Name: Deutsch DT06-2S solenoid connector, with integrated protective circuit + LED Black LS-DT06 9442.0250 2,5mPUR Pins:2 7094
Brand: Lütze
SKU: 3124460
Availability: InStock

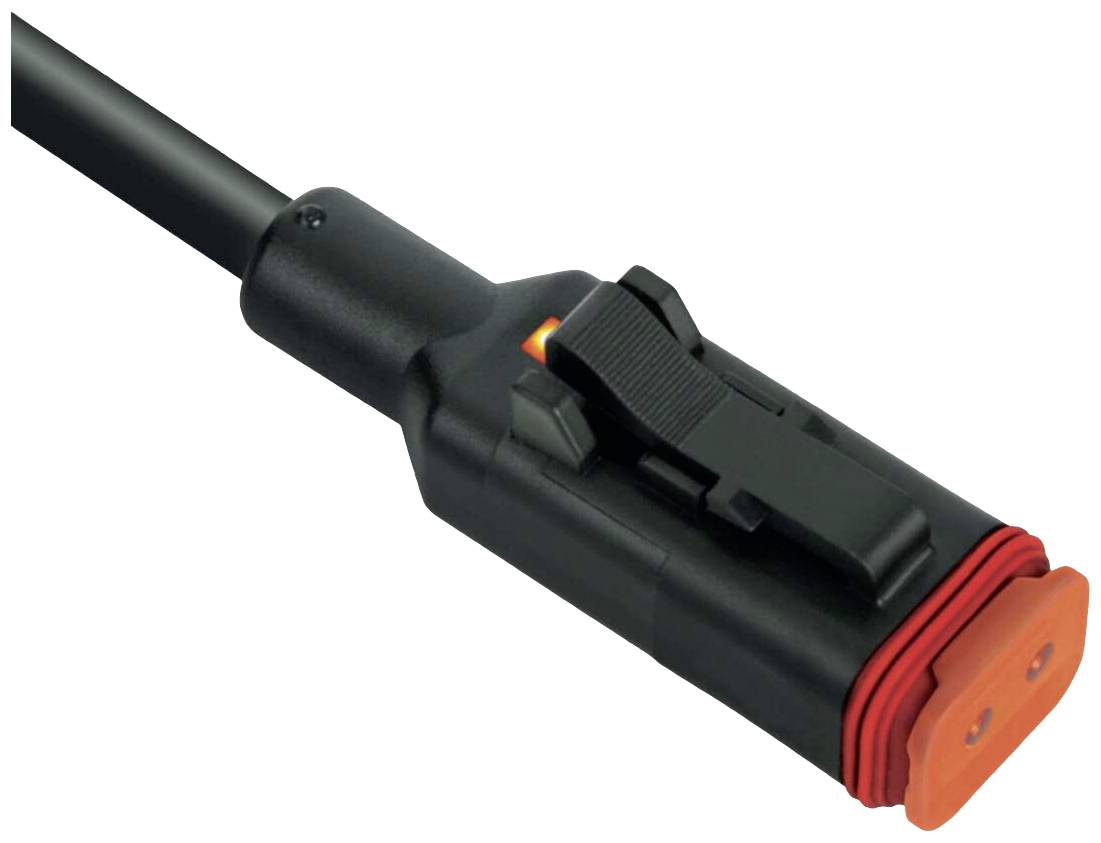

A black plug with an orange sealing ring.

Product type

Square connector

Type

Line socket + molded cable

IP rating

IP67

Number of pins

Nominal voltage

12 V DC

24 V DC

Datasheet (PDF)

17 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 24.99 / piece)

€ 24.99

incl. VAT

Only available for business customers

14-day return policy included

Report legal concerns

Technical specifications

Power consumption: 10 mA
Test voltage: 150 V/DC

Pins: 2

Conductor material: PUR

Product type: Square connector

Type: Line socket + molded cable

: IP67

Number of pins: 2

Nominal voltage: 12 V DC
24 V DC

Display: LED

Total no. of pins: 2

Manufacturer part #: 709442.0250

Factory colour: Black

Content: 1 pc(s)

Cable length: 2.50 m

Cable cross section: 2 x 0.75 mm²

Length: 2.5 m

max. cross section: 0.75 mm²

Connector type: Plug, straight

Max. temperature: +80 °C

Min. temperature: -40 °C

Type: LS-DT06 9442.0250 2,5mPUR

Features: LED

Documents & Downloads

Datasheet

Datasheet 3124460 Deutsch DT06-2S solenoid connector, with integrated protective circuit + LED Black LS-DT06 9442.0250 2,5mPUR Pins:2 7094

User & Safety Instructions

User & Safety Instructions 3124460 Deutsch DT06-2S solenoid connector, with integrated protective circuit + LED Black LS-DT06 9442.0250 2,5mPUR Pins:2 7094

Description

Interference suppression technology, Deutsch DT06-2S valve connector, with integrated protective circuit + LED, 2-pole version, reverse battery protected, molded PUR connection cable 2 × 0.75 mm², a protective hose can be mounted directly at the cable outlet

This text is machine translated.
