Name: Digitus DK-1511-P-305-1 Network cable CAT 5e U/UTP Grey 305 m
Brand: Digitus
SKU: 2378023

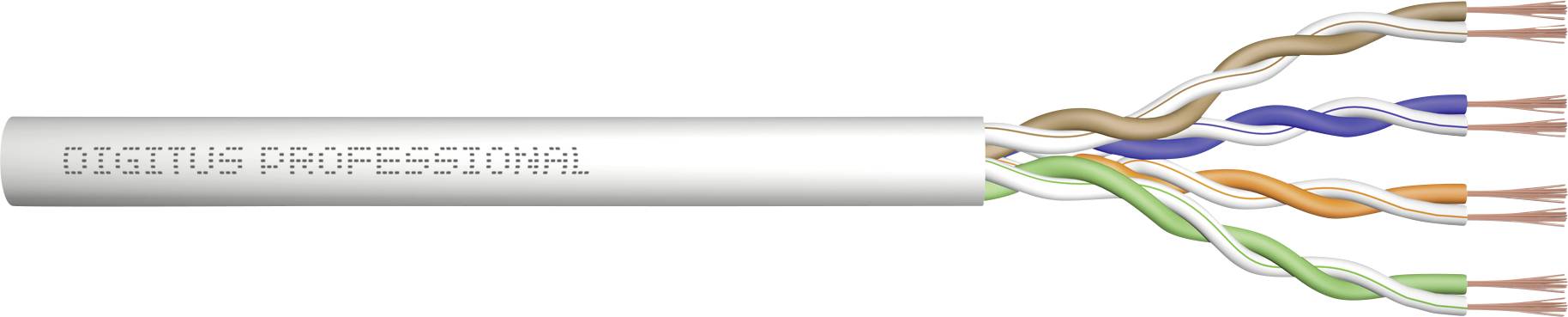

An image of an open network cable with four twisted wire pairs in different colours. The outer sheath is labelled 'DIGITUS PROFESSIONAL'.

Product type

Network cable

Specification

CAT 5e

Shielding

U/UTP

Cable type

U/UTP

No. of leads

4 x

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus CAT 5e U-UTP raw patch cable 305 m, box, AWG 26/7, PVC, sx, gray

Suitable for direct installation of RJ45 connectors for manufacturing of patch cables
For building class D, 100 MHz cabling links
According to the standards ANSI/TIA 568-C; ISO/IEC 11801 2nd Ed.; EN 50173; EN 50288-3-1
Inner conductor: Copper (Cu)
PoE compatible

Technical specifications

Length: 305 mInsulation HD-PEOuter sheath thickness 0.55 mm nominalExternal diameter: 4.6 mm nominalStrain relief max. 150 NDynamic bend radius 8x AD mm min.Static bending radius 4x AD mm min.Transport and storage temperature range from --10°C to +75°C.Operating temperature range --10°C to +60°C.Installation temperature range -0°C to +50°C.Loop impedance ≤ 280 Ω km.Resistance unbalance: ≤ 2%Insulation resistance ≥ 2000MΩ/km @500VCapacity: Nom. 48 nF/km @ 800 HzCapacitance unbalance (pair earth): ≤ 1500 nF/kmImpedance 100 ± 15 Ohm @ 10-100 MHzNVP 67%Runtime delay: Nom. ≤ 555 ns/100 mTest voltage (DC 1 min) Core/core: 1000VCoupling damping: ≥ 40 dBAverage impedance: 100±10 ohm at 10-100 MHzCapacity: 40 pF/m nominal @ 800 HzUnbalance of capacity (pair ground): 1.5 pF/m max. @ 1 KHzInsulation resistance 2 GOhm x km min.Loop impedance: 147 x ohm/km (2% max. resistance imbalance)Operating voltage 72 Vdc max.Insertion loss < 40 dBPhase delay 450 nS/100 m max.Delay time 20 nS/100 m max.

Product type: Network cable

: CAT 5e

: U/UTP

Cable type: U/UTP

No. of leads: 4 x

No. of leads (part 2): 2 x

Cable features: Flexible
Unshielded

Outside Ø: 4.6 mm

Factory colour: Grey

Content: 305 m

AWG max.: 26

Packaged: Yes

Sold per metre: No

Manufacturer part #: DK-1511-P-305-1

Type: DK-1511-P-305-1

Insulation material: Polyethylene (PE)

RoHS-compliant: Yes

Min. temperature range (flexible installation): -10 °C

Max. temperature range (flexible installation): 60 °C

Min. temperature range (fixed installation): -10 °C

Max. temperature range (fixed installation): 75 °C

Halogen-free: No

Max. length sold by the metre: 305 m

Twisted pair cabling (part 1): Yes (1)

Twisted pair cabling (yes/no): Yes (1)

Version: Cable

Cable use: RJ45

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2378023 Digitus DK-1511-P-305-1 Network cable CAT 5e U/UTP Grey 305 m

Description

The raw patch cables are manufactured and tested according to ISO/IEC 11801 and DIN EN 50173 standard. They guarantee that the cable installation meets the ISO & EN Channel specification and thus offer an excellent performance for your cabling. The raw patch cables are suitable for the direct mounting of RJ45 connectors to produce patch cables.

This text is machine translated.
