Name: Digitus DK-1618-010S-R RJ45 Patch cable CAT 6 U/UTP 1 m Red 1 pc(s)
Brand: Digitus
SKU: 3773222
Availability: InStock

Two red Ethernet cables with clear RJ45 connectors on a white background, shown side by side with their plugs facing left.

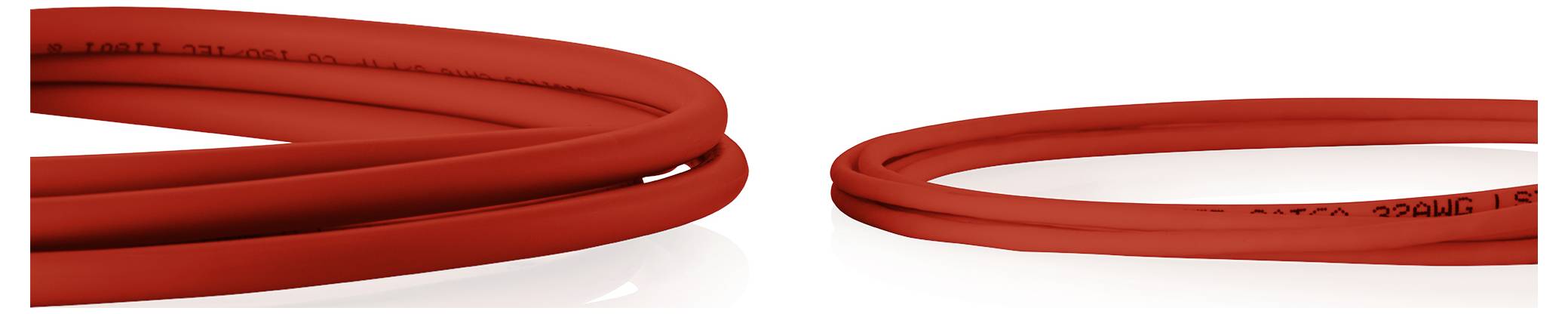

Red coiled cables or hoses on a white surface, shown as two separate loops.

Two red Ethernet cable connectors shown side by side on a white background, displaying the clear plastic plug ends with gold contacts.

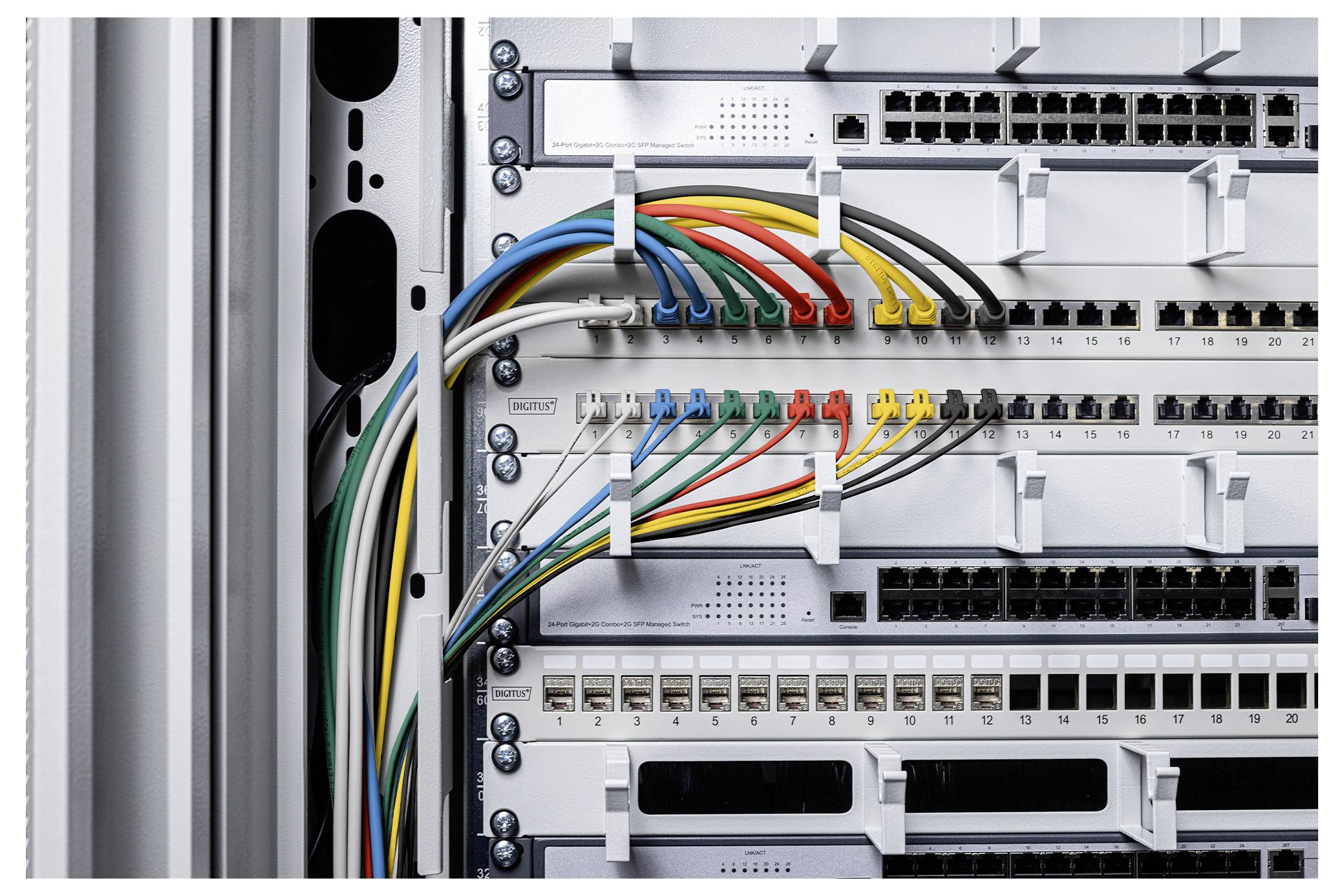

Close-up of a network server rack with multiple Ethernet switches and color-coded cables plugged into ports.

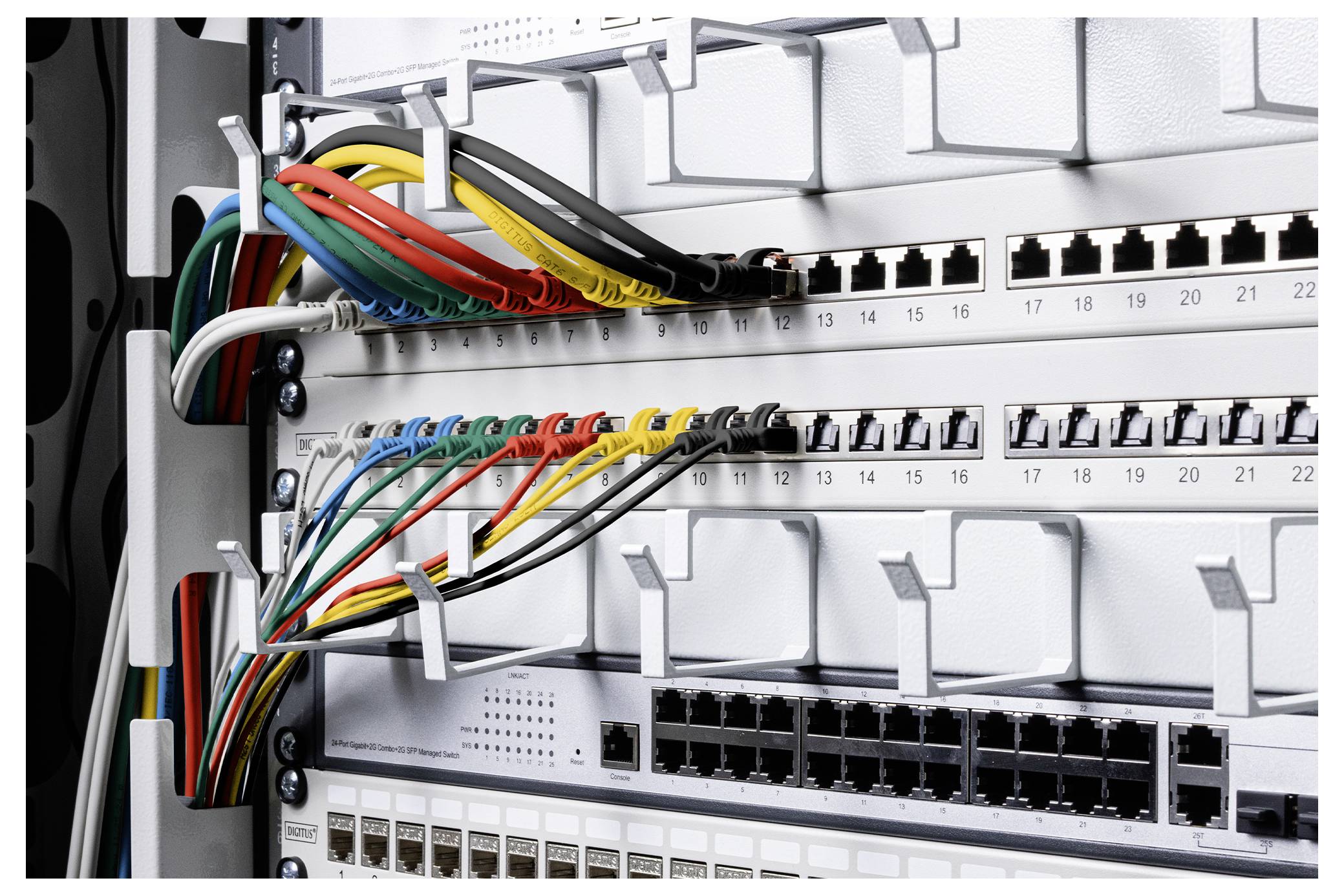

Close-up of a network switch with multiple Ethernet cables plugged into labeled ports in a server rack.

1/5

Product type

Patch cable

Specification

CAT 6

Shielding

U/UTP

Connection type

RJ45

Cable length

1 m

Datasheet (PDF)

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

15 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1.99 / piece)

€ 1.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Digitus CAT 6 U-UTP slim patch cable, 1 m, red

The advantage: A slim cable diameter of 2.7 mm with high flexibility for easy installation in confined spaces
Features: Transfer speed up to 1 Gbit/s and frequency 250 MHz
Ideal for office, home, patch and high density environments
PoE-enabled: Supports PoE and PoE+ applications with pure copper wires

Technical specifications

Outer sheath: LSZH (Low Smoke Zero Halogen)
Total diameter 2.7 mm ± 0.15 mm
AWG 32/7 plain copper, 0.08 ± 0.005 mm
Insulation: HD-PE (high density polyethylene)
Bend radius 15x outer diameter
Plug RJ45-Plug
Colour code: Orange x white, green x white, blue x white, brown x white
EIA/TIA 568B WIRING STANDARD
Pin assignment 1:1
Contact resistance: Maximum 376.96 Ω/km at 20 °C.
Resistance imbalance: Maximum 3%
Operating temperature: -20°C to +60°C
Flame retardant IEC 60332-1
Smoke generation IEC 61034
TYPICAL APPLICATIONS: IEEE 802.3: 10BASE-T; 100BASE-T; 1000BASE-T
STANDARDS: ISO/IEC 11801-1; EN-50173; ANSI/TIA 568-C; EN 60603-7-4
Dielectric strength: 500 V AC for 1 minute without punch (TIA/EIA-364-21)
Lifetime 750 mating cycles
Packaging: Digitus hang tag

Product type: Patch cable

: CAT 6

: U/UTP

Connection type: RJ45

No. of A connectors: 1 x

Type A: RJ45 plug

No. of B connections: 1 x

Type B: RJ45 plug

Cable length: 1 m

Factory colour: Red

Cable use: Networks

Version: Cable

Cable design: Round

: Copper

Max. frequency: 250 MHz

LAN transfer rate: 1000 MBit/s

Halogen-free: Yes

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3773222 Digitus DK-1618-010S-R RJ45 Patch cable CAT 6 U/UTP 1 m Red 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3773222 Digitus DK-1618-010S-R RJ45 Patch cable CAT 6 U/UTP 1 m Red 1 pc(s)

Description

Digitus® CAT 6 U-UTP slim patch cables with a transmission frequency of up to 250 MHz are equipped with a reduced external diameter of only 2.7 mm and a flexible sheath, allowing WAS space-saving and versatile use in any network. The cables feature stranded AWG 32/7 copper conductors and an unshielded twisted-pair structure (U-UTP), which ensures flexibility and durability. They are manufactured according to the standards ISO/IEC 11801 and DIN EN 50173 CAT 6 and thus ensure the reliable compliance with international specifications. Each cable is equipped with a molded bend relief sleeve with strain relief and a locking lever protection, which prevents cable damage and locking breaks. These slim patch cables come in a Digitus® hangtag package and are the ideal solution for structured cabling in offices, homes or high-density environments.

This text is machine translated.
