Name: Digitus DK-1744-VH-5 Network cable CAT 7 S/FTP Orange 500 m
Brand: Digitus
SKU: 2378035

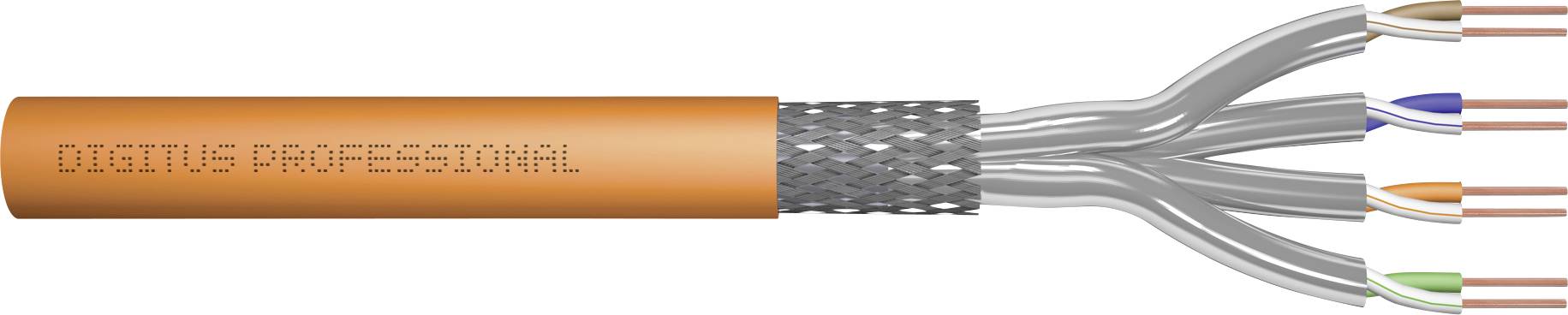

An orange network cable labelled 'DIGITUS PROFESSIONAL' shows several exposed inner conductors in various colours.

Digitus DK-1744-VH-5 Network cable CAT 7 S/FTP Orange 500 m-1

Digitus DK-1744-VH-5 Network cable CAT 7 S/FTP Orange 500 m-2

Digitus DK-1744-VH-5 Network cable CAT 7 S/FTP Orange 500 m-3

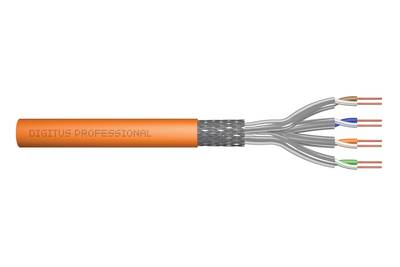

Digitus DK-1744-VH-5 Network cable CAT 7 S/FTP Orange 500 m-4

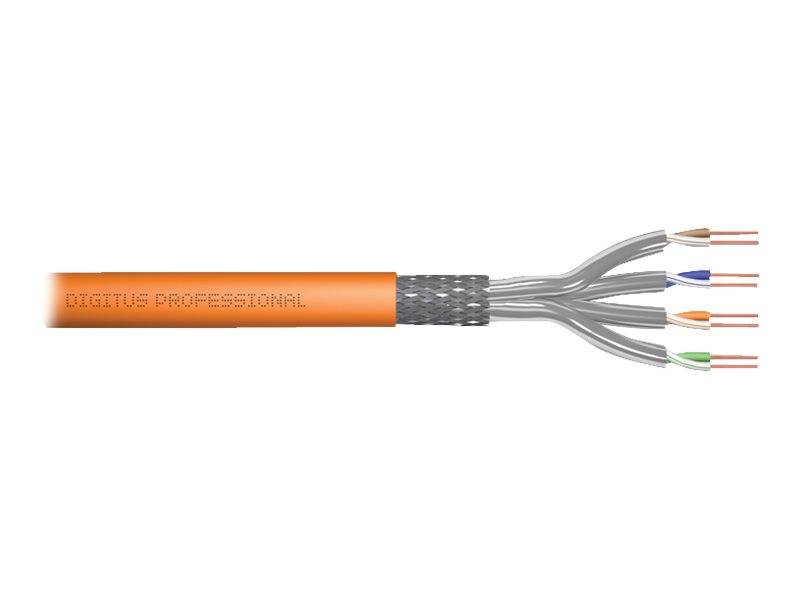

Digitus DK-1744-VH-5 Network cable CAT 7 S/FTP Orange 500 m-5

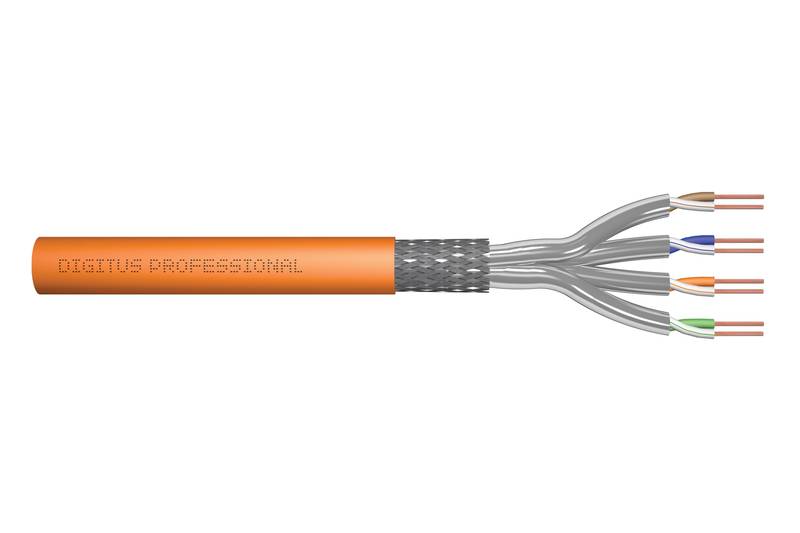

Digitus DK-1744-VH-5 Network cable CAT 7 S/FTP Orange 500 m-6

1/7

Product type

Network cable

Specification

CAT 7

Shielding

S/FTP

Cable type

S/FTP

No. of leads

8 x

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Digitus CAT 7 S-FTP Installation cable, 1200 MHz CCA (EN 50575), AWG 23/1, 500 m drum, SX, or

10Gbit Ethernet
1200 MHz transmission frequency
Permanent link certified
PoE power over Ethernet support
BauPVO class CCA

Technical specifications

Conductor: Bare copper wire, AWG 23/1
Insulation: SFS-PE (foamed polyethylene sheath)
Total number of insulated conductors: 8, twisted to 4 pairs
Color code: Blue-white, orange-white, green-white, brown-white
Shielding of the individual pairs: Aluminum-coated polyester film, covers 100%
Overall shielding: Copper braid
Outer sheath: ECA to B2ca according to EN 50575; LSZH
Outer sheath thickness (nominal): 0.50 mm (ECA); 0.52 mm (DCA); 0.60 mm (CCA); 0.60 (B2ca)
Color: Orange (RAL 2000)
Strain relief: 150N max.
Dynamic bending radius: 8x OD mm min.
Static bending radius: 4x OD mm min.
Transport and storage temperature range: -20 °C to +75 °C.
Operating temperature range: -20 °C to +50 °C
Installation temperature range 0 °C to +50 °C.
Outer Diameter Simplex (nominal) 7.0 mm (ECA); 7.2 mm (DCA); 7.5 mm (CCA); 7.5 mm (B2ca)
Weight (kg/km): 49.5 kg (ECA); 51 kg (DCA); 53 kg (CCA); 53 kg (B2ca)
Impedance 100±15 Ohm @ 4 - 1000 MHz; 100±25 OHM @ 100-600 MHz
Capacity 45 pF/m nominal @ 1 kHz
Capacitance unbalance (pair ground): 1.6 pF/m max. @ 1 kHz
Insulation resistance: 5 GOhm x km min.
DC resistance: 95 ohms/km max. (2% max. unbalanced resistance)
Loop resistance: 190 ohms/km max. (2% max. unbalanced resistance)
Operating voltage 72 Vdc max.
Coupling attenuation: Ca-type 1b
Phase delay 450 NS/100 m max.
Runtime delay: 10 NS/100 m max.
Separation class: "D" in accordance with EN 50174-2
NVP: 79%

Product type: Network cable

: CAT 7

: S/FTP

Cable type: S/FTP

No. of leads: 8 x

Cable features: double shielding
Shielded
Halogen-free
Flame-retardant
Metal foil shield
Braided shield
Twin shield
Common shield

Outside Ø: 7.0 mm

Factory colour: Orange

Content: 500 m

AWG max.: 23

Packaged: Yes

Sold per metre: No

Manufacturer part #: DK-1744-VH-5

Type: DK-1744-VH-5

Insulation material: Polyethylene (PE)

RoHS-compliant: Yes

Min. temperature range (fixed installation): -20 °C

Max. temperature range (fixed installation): +50 °C

Halogen-free: Yes

Max. length sold by the metre: 500 m

Twisted pair cabling (part 1): Yes (1)

Cable length: 500 m

Version: Lead

Cable use: Networks

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 2378035 Digitus DK-1744-VH-5 Network cable CAT 7 S/FTP Orange 500 m

User & Safety Instructions

User & Safety Instructions 2378035 Digitus DK-1744-VH-5 Network cable CAT 7 S/FTP Orange 500 m

Description

The Digitus® Professional Cat.7 S/FTP laying cable is characterized by the following cable structure of 4x2x AWG23/1 and achieves a transmission frequency of up to 1200 MHz. The halogen-free cable sheath complies with the IEC 60332-3-24, FRNC-C, LSZH-3 and the BauPVO Euroclass CCA standard. The cable is suitable for structured building cabling in the secondary and tertiary area. Complies with ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.
