Name: Digitus DN-19 26U-6/10-1 19" server rack cabinet (W x H x D) 600 x 1342 x 1000 mm 26 U Grey-white (RAL 7035)
Brand: Digitus
SKU: 1345711

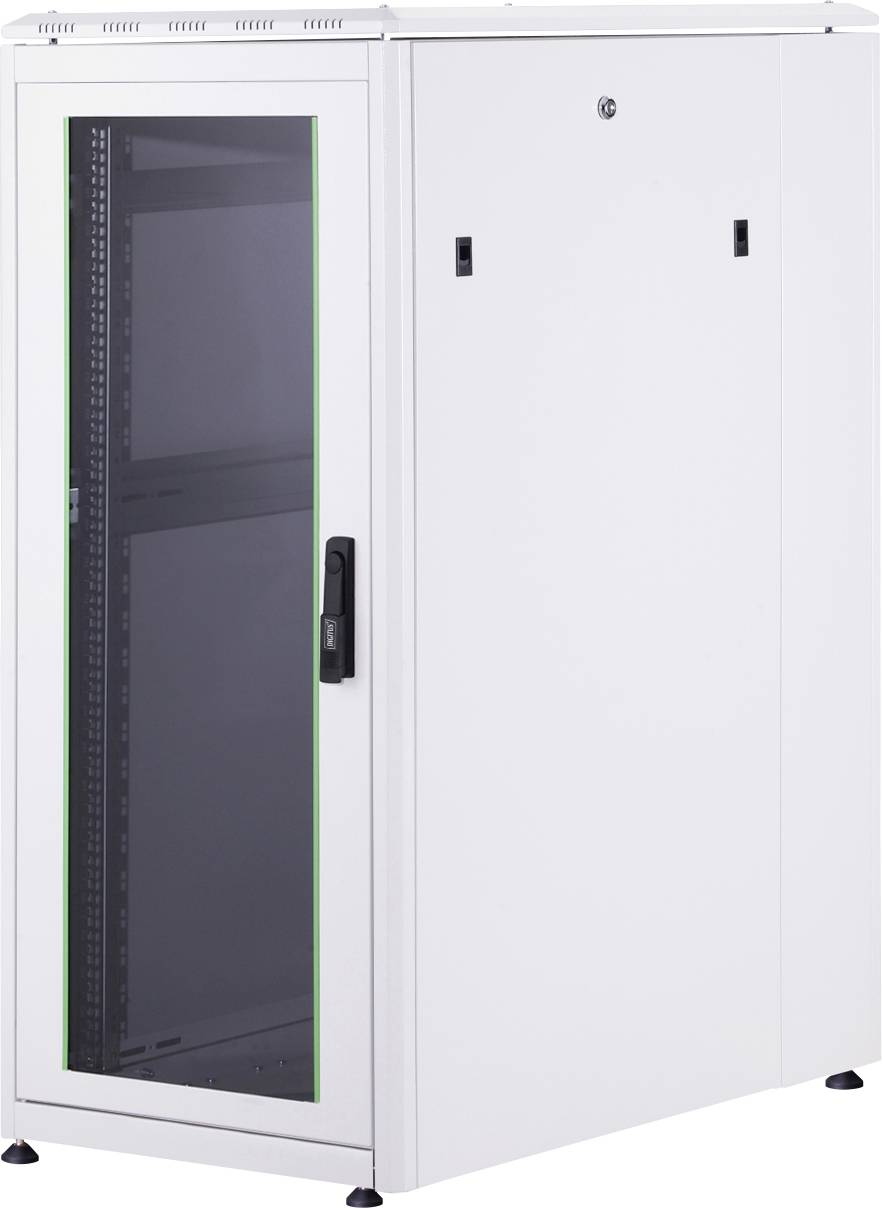

White server cabinet with glass door, suitable for housing network and IT equipment in an air-conditioned environment.

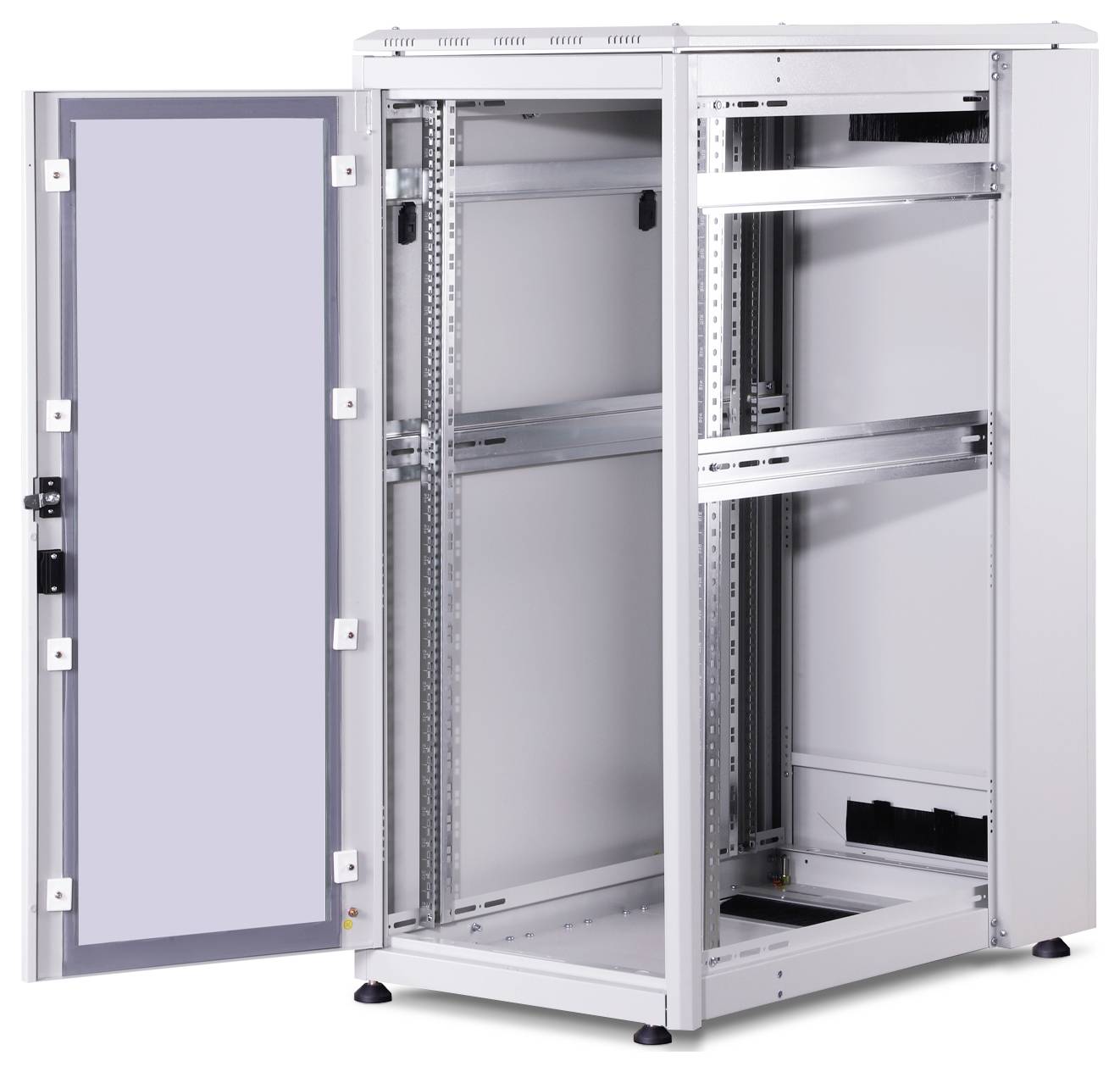

An empty, white server cabinet with an open door, mountable rails, and ventilation slots, suitable for housing IT equipment.

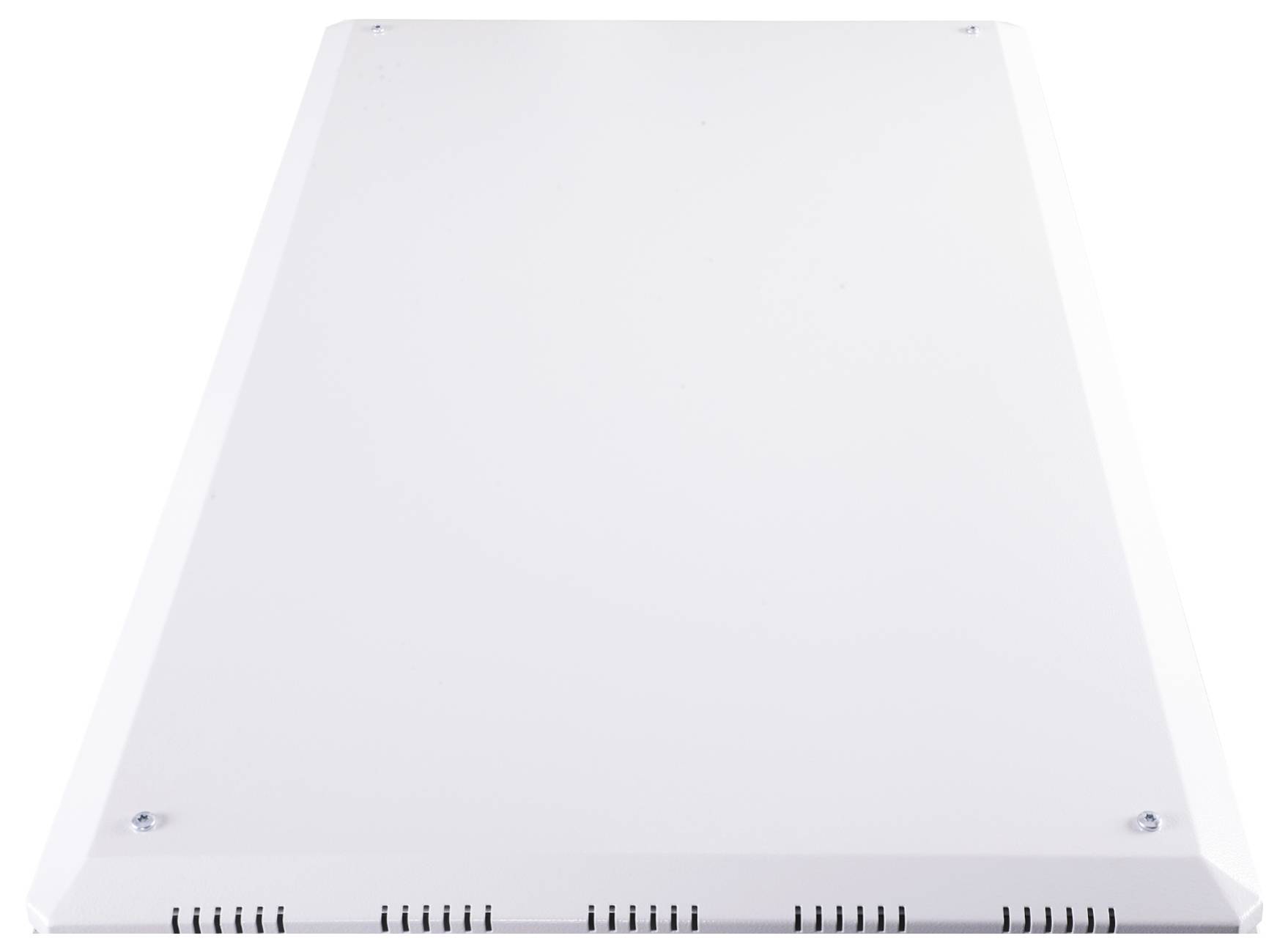

A rectangular, white ventilation cover with four visible screws in the corners for mounting on the ceiling or wall.

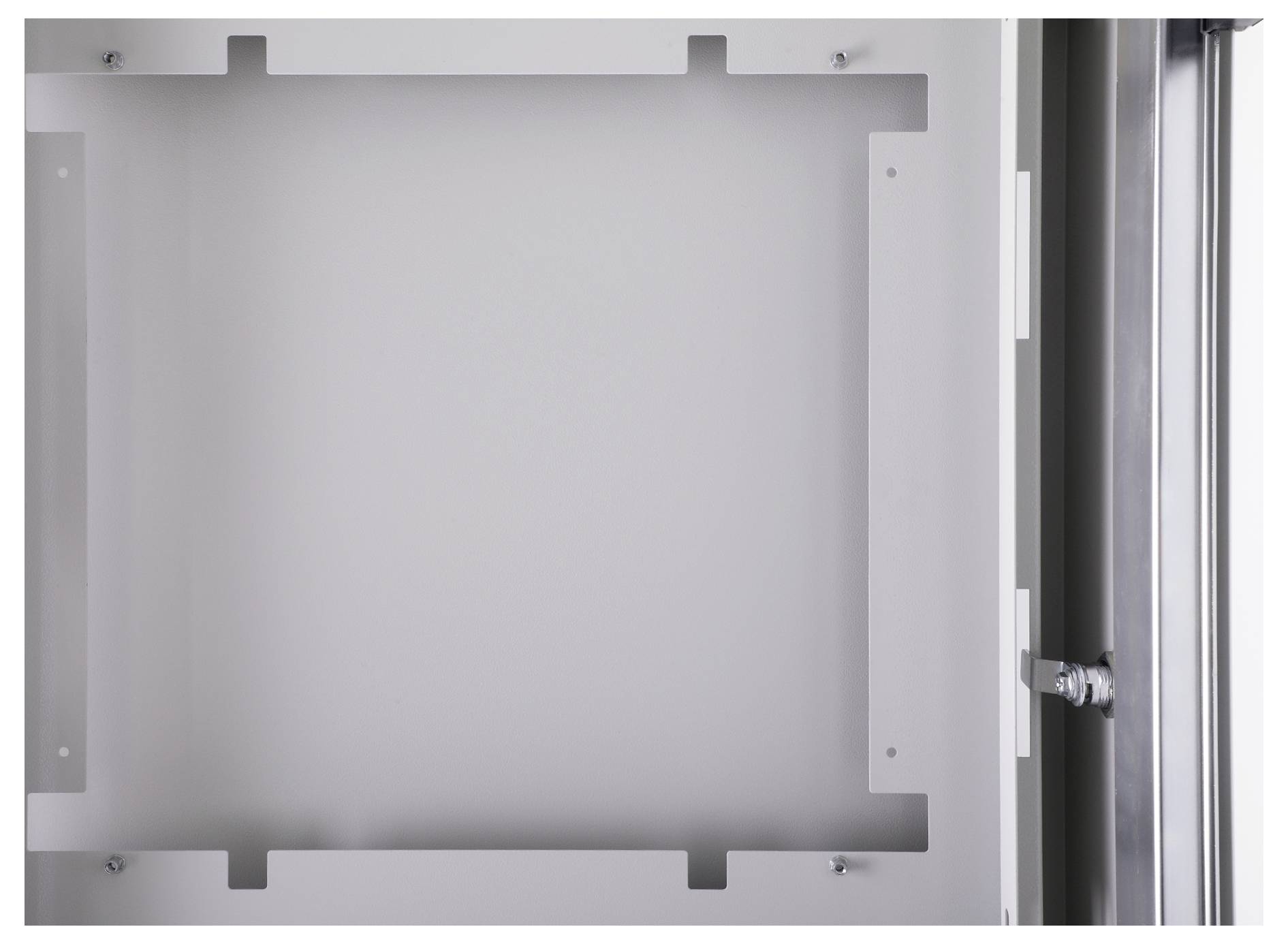

Metal cabinet with an open door, showing an empty interior with four mounting slots and locking hardware on the right-hand side.

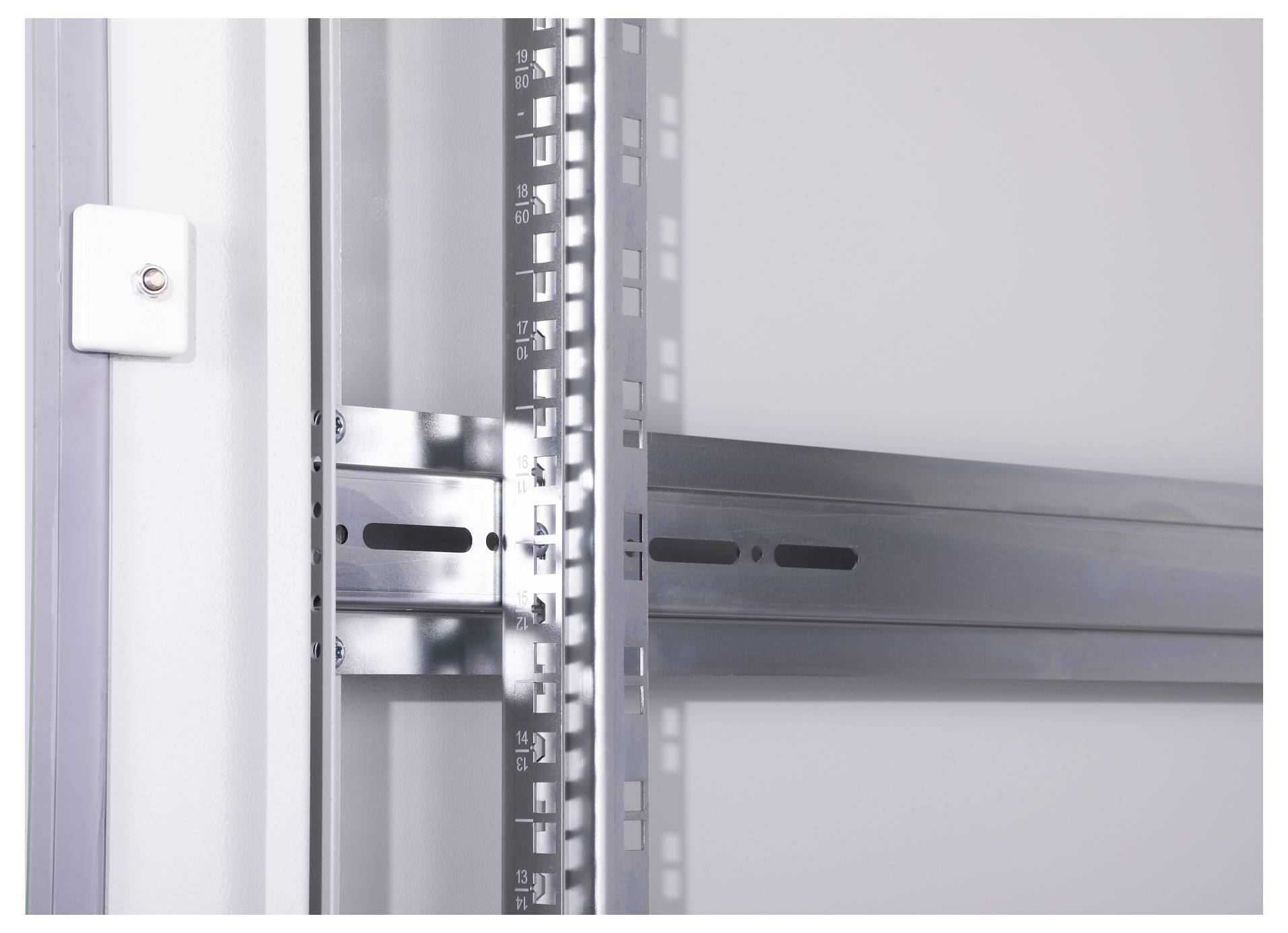

Metal rail fixed to a wall, showing the structure of a sliding door installation or storage system.

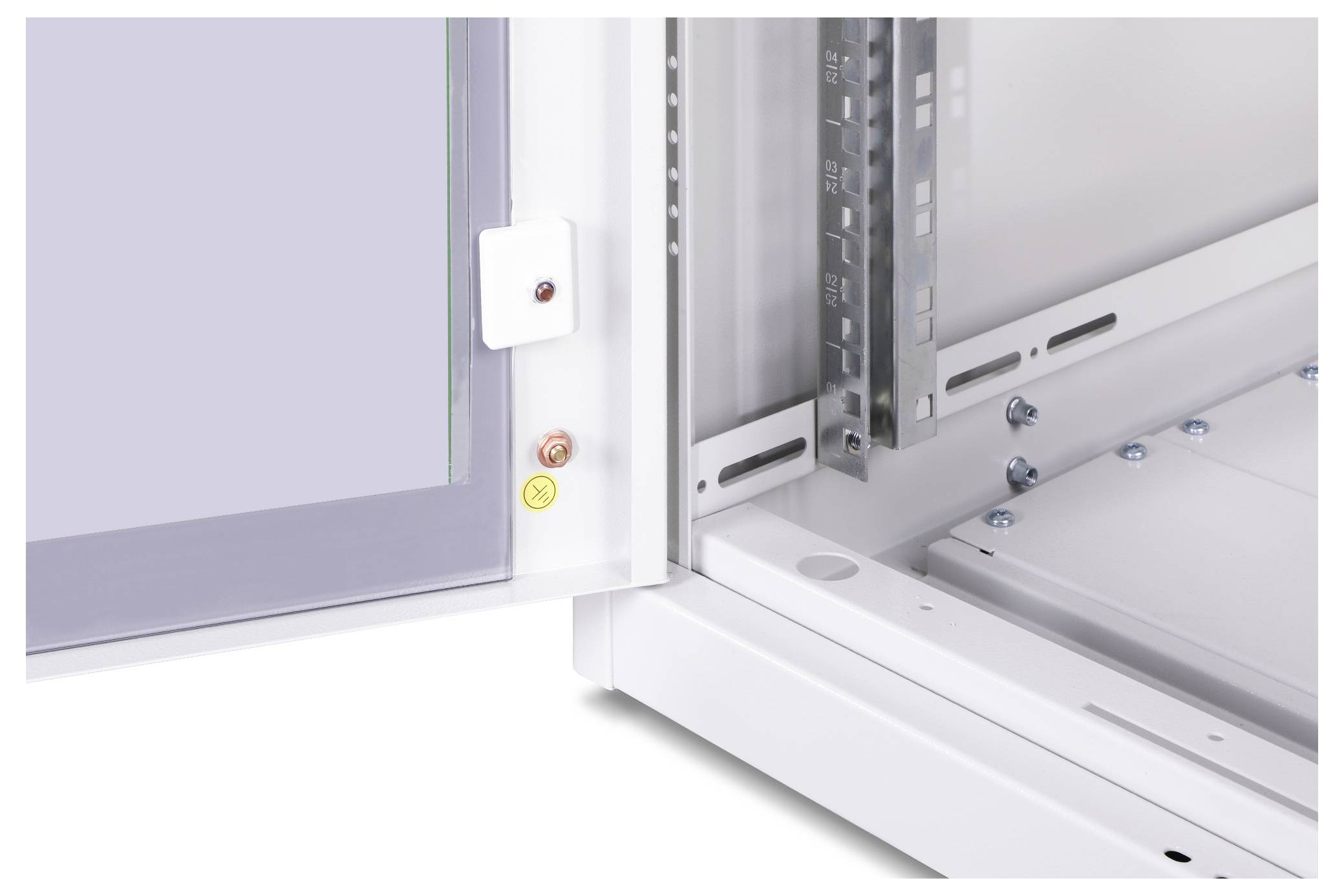

Opened white electrical enclosure with internal metal structure and protective cover. Screws and fastenings visible.

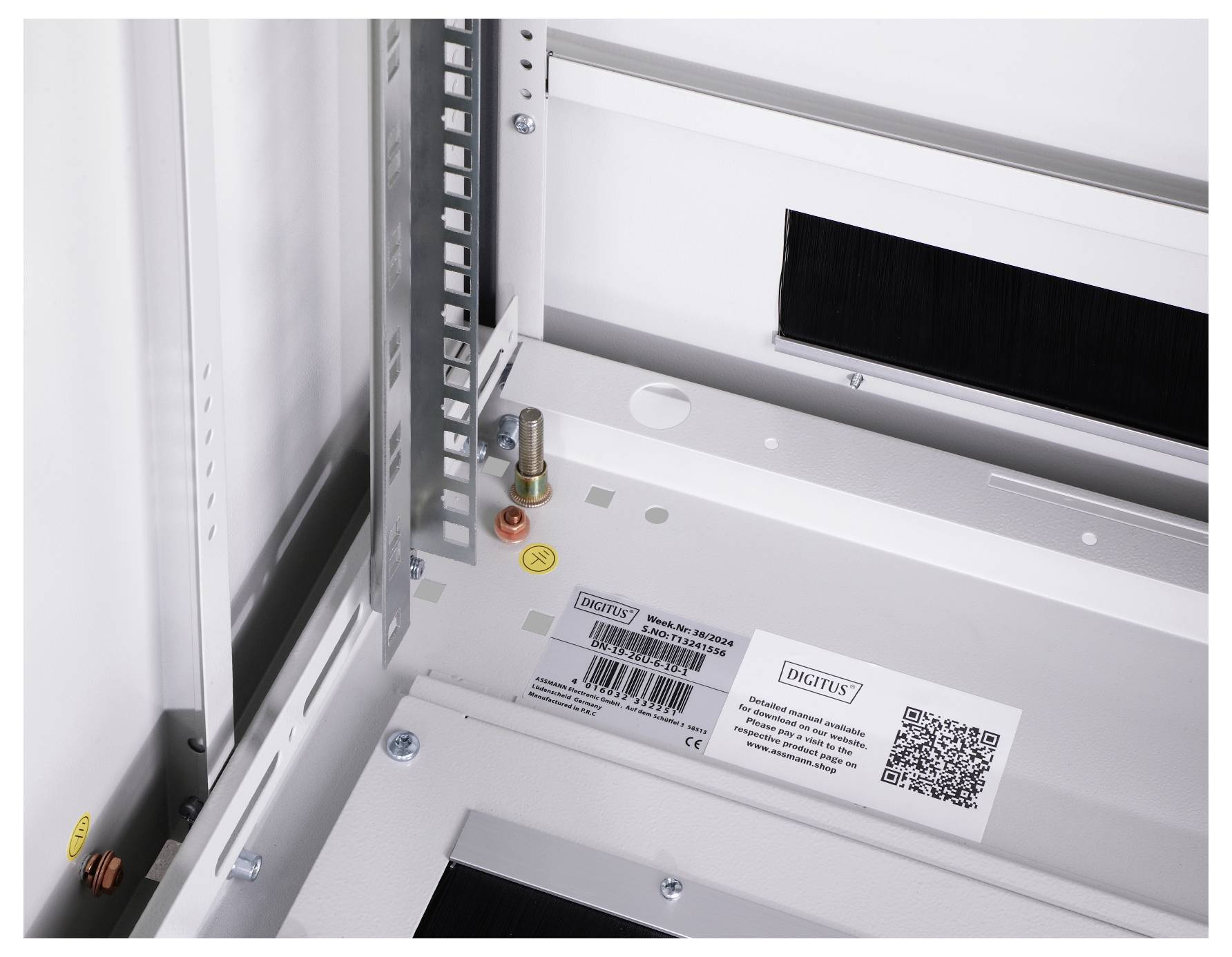

Interior view of an electrical cabinet with visible cable channels and a label featuring a QR code and the inscription 'DIGITUS'.

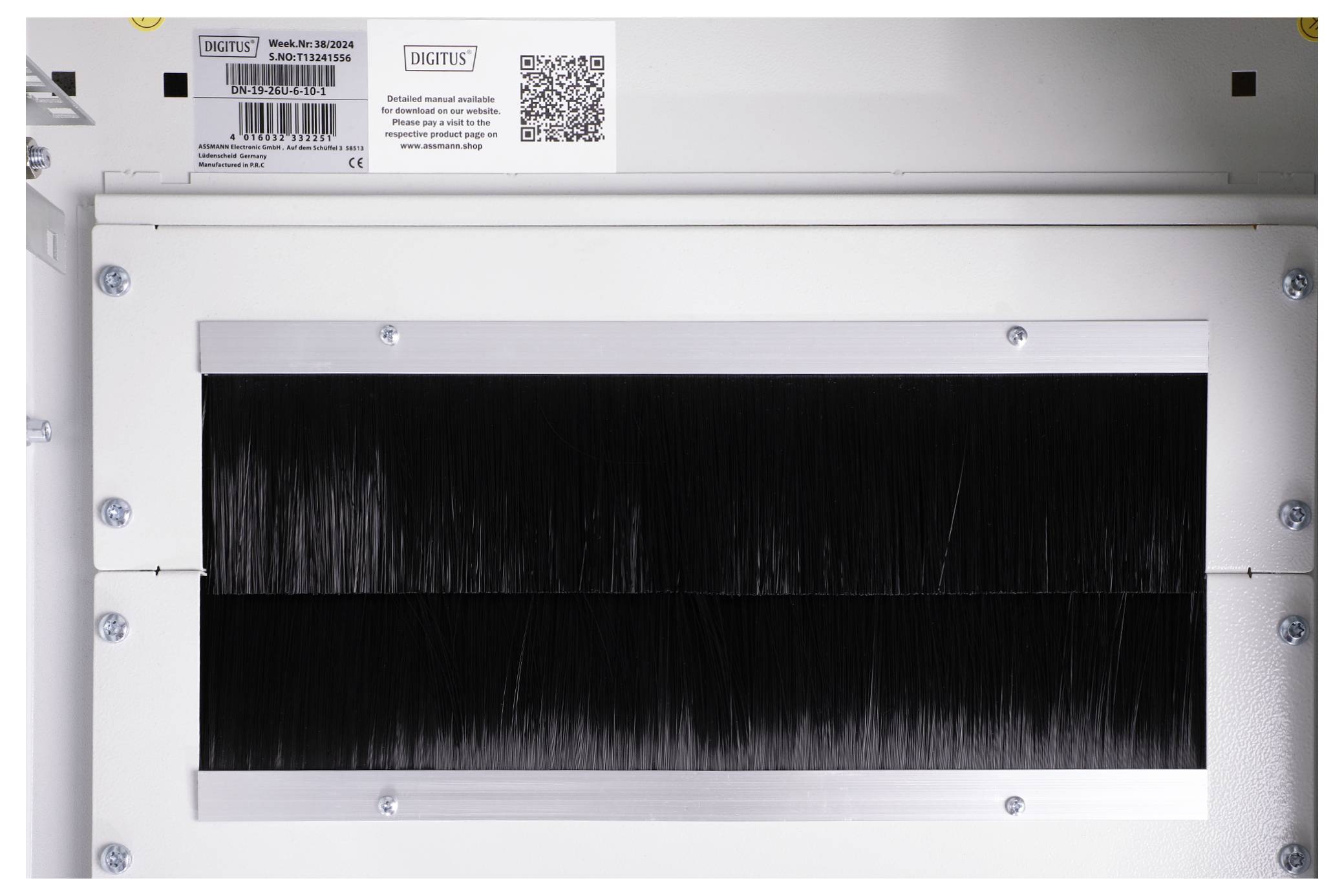

A cable management system with brush density for cable organisation. Labels and a QR code are located at the top.

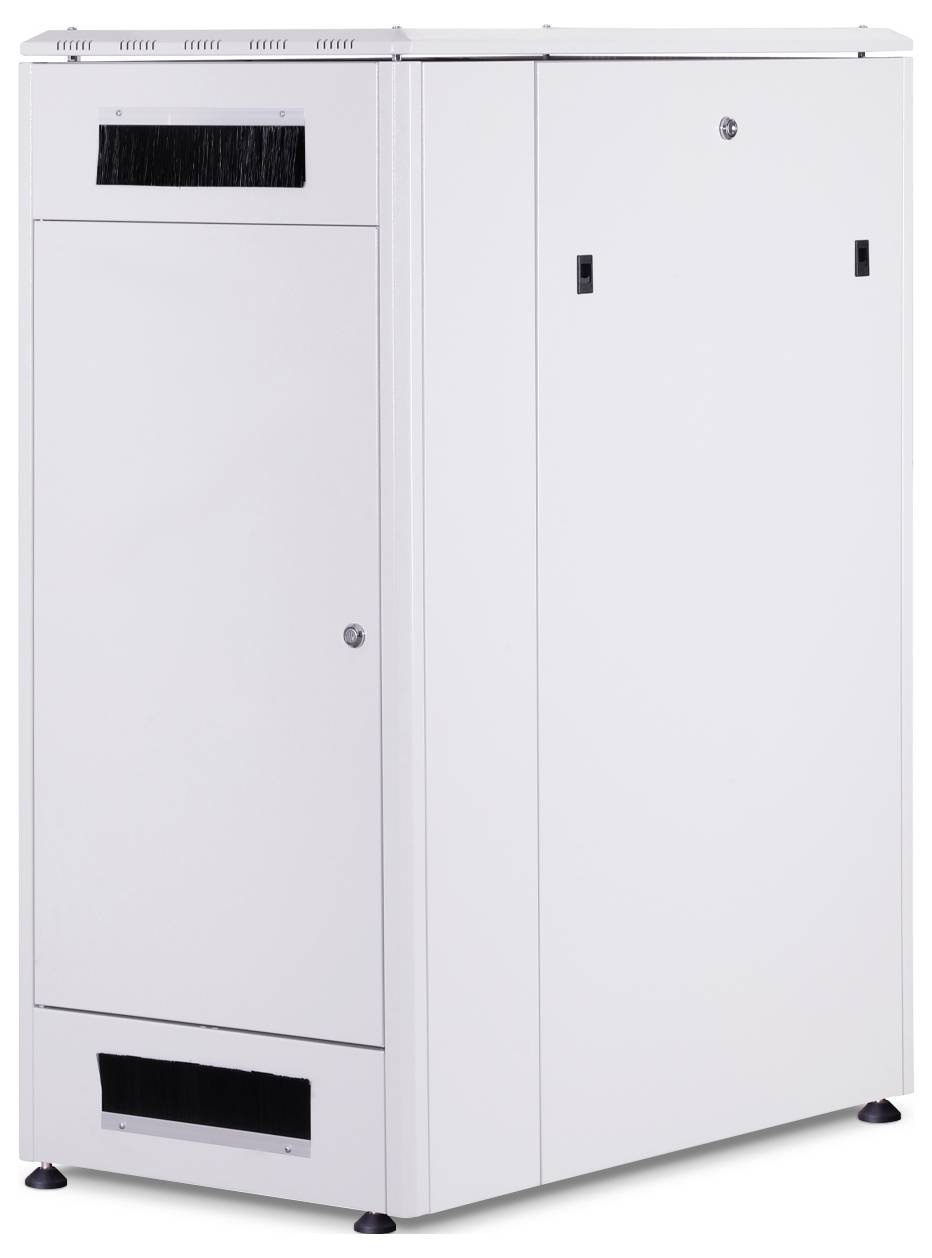

A large, white metal cabinet with ventilation openings and lockable doors, suitable for storing equipment or documents.

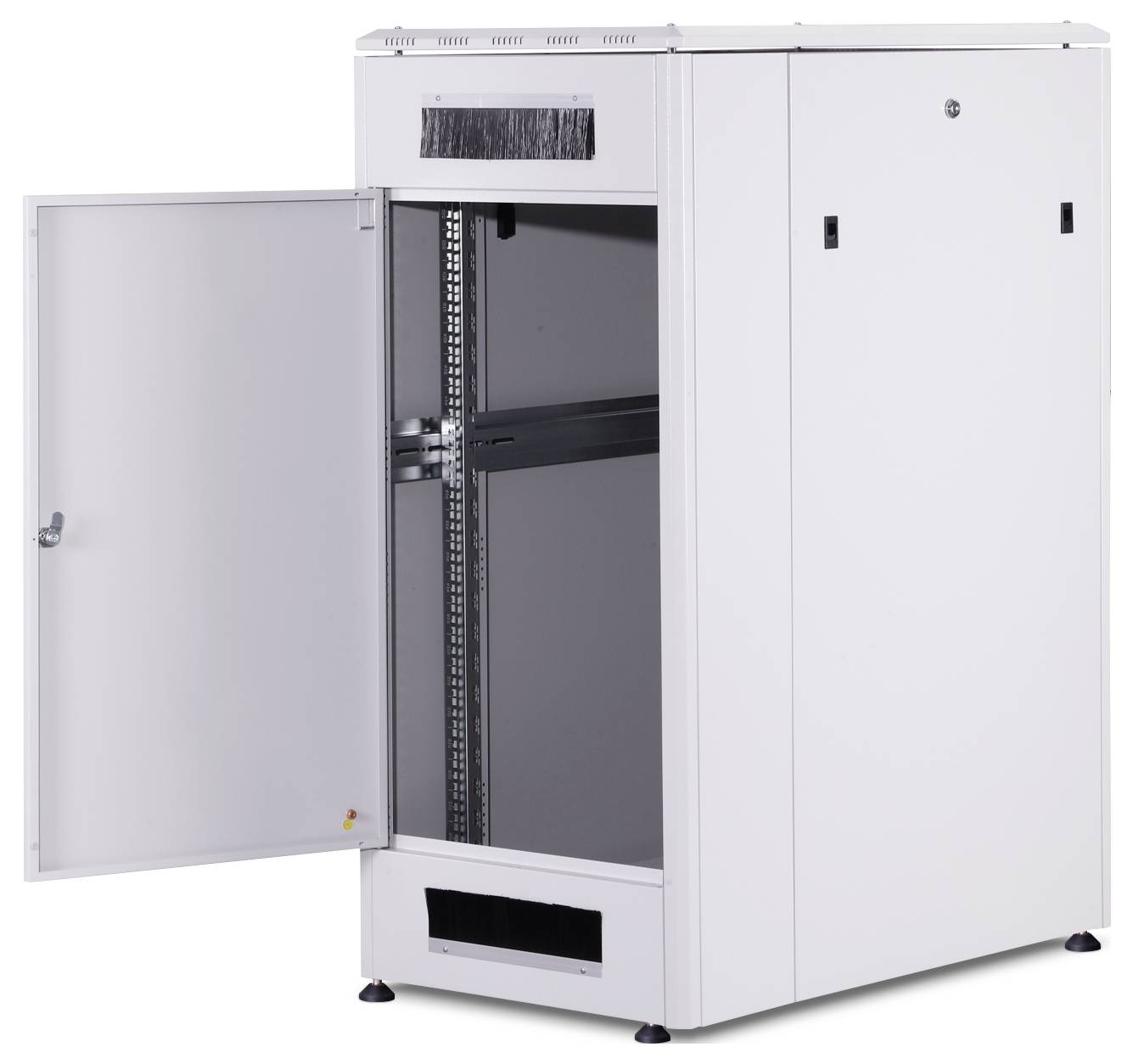

A white, open server rack with a metal door. Suitable for mounting network and server equipment in a data centre.

1/10

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Network Cabinet Unique Series - 600x1000 mm (WxD)

The DIGITUS® Unique Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany

Technical specifications

Product type: 19" server rack cabinet

Rack unit: 26 U

Width: 600 mm

Height: 1342 mm

Depth: 1000 mm

Material: Safety glass
Steel

Dim: (W x H x D) 600 x 1342 x 1000 mm

Weight: 78

Factory colour: Grey-white (RAL 7035)

Rack size: 483 mm (19")

Product type description: Rack

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 1345711 Digitus DN-19 26U-6/10-1 19" server rack cabinet (W x H x D) 600 x 1342 x 1000 mm 26 U Grey-white (RAL 7035)

User & Safety Instructions

User & Safety Instructions 1345711 Digitus DN-19 26U-6/10-1 19" server rack cabinet (W x H x D) 600 x 1342 x 1000 mm 26 U Grey-white (RAL 7035)

Description

The Network Cabinet Unique Series was designed and produced for cabling and networking components. Several optimizations result in a perfect performance between quality and added value. Each cabinet is designed with strength, ease of use and aesthetics in mind.The front door consists of a complete metal frame with safety glass. The door stop can be changed easily from left to right. The lockable pivot lever is ready for profile half cylinders (adapter included). All side panels are lockable and detachable. Every cabinet is equipped with galvanized 483 mm (19”) profile rails, mounted left and right on the front and rear side. They are adjustable in depth and with height unit marking. The vertical cable management ducts are mounted on the front side (on cabinets from 800 mm width). Patch- and installation cables can be routed from the ducts into patch panels or equipment through the frequently positioned access slots. The roof is ready for the installation of a fan unit. All cabinets of the Unique Series are delivered completely mounted. They are available in various height units from 22U up to 47U and a width of 600 or 800 mm and a depth of 600, 800 or 1000 mm. Standard colors are grey (RAL 7035) and black (RAL 9005), other colors are available on request.

· 1.5 mm strong sheet steel with a high loading capacity, powder coated
· Side sections detachable and lockable
· Ventilation slots for active and passive ventilation and exhaustion
· IP 20 rating
· Smoked safety glass door with steel frame with a swing handle lock
· Lockable backdoor and lockable side panels
· 483 mm (19") profile rails on the front and back side, adjustable in depth
· Cable entry in the middle of the bottom with movable sheet and rubber sealing
· Levelling feet, adjustable in height
· Including set of 28 x 483 mm (19") assembly screws
· Roof module for ventilation unit
· Complying with international standards IEC 297-1/2 and IEC 917-2-1
· 2 keys for opening doors and side panels
· Including set of 28 assembly screws
· Extensive range of accessories available

Features

1.5 mm robust sheet steel with high load capacity, powder-coatedSide panels can be removed and lockedProtection type IP20Lockable back door and side panels483 mm (19") profile rails on the front and rear side, adjustable depthCable feed in the center of the floor through sliding sheet with rubber sealHeight-adjustable feetIncl. Set with 28 pieces 483 mm (19") mounting screwsRoof module for ventilation unitComplies with IEC 297-1/2 (19" unit) and IEC 917-2-1 (metric unit)2 keys for doors and side wallsIncluding 28 mounting screwsCabinet type: Network cabinetFront door: Glass door

Scope of delivery

Network cabinet
2 keys for door and side walls
