Buy Digitus DN-19 FAN-4-HO-SW 19 inch 4 x Server rack cabinet fan 1 U Black

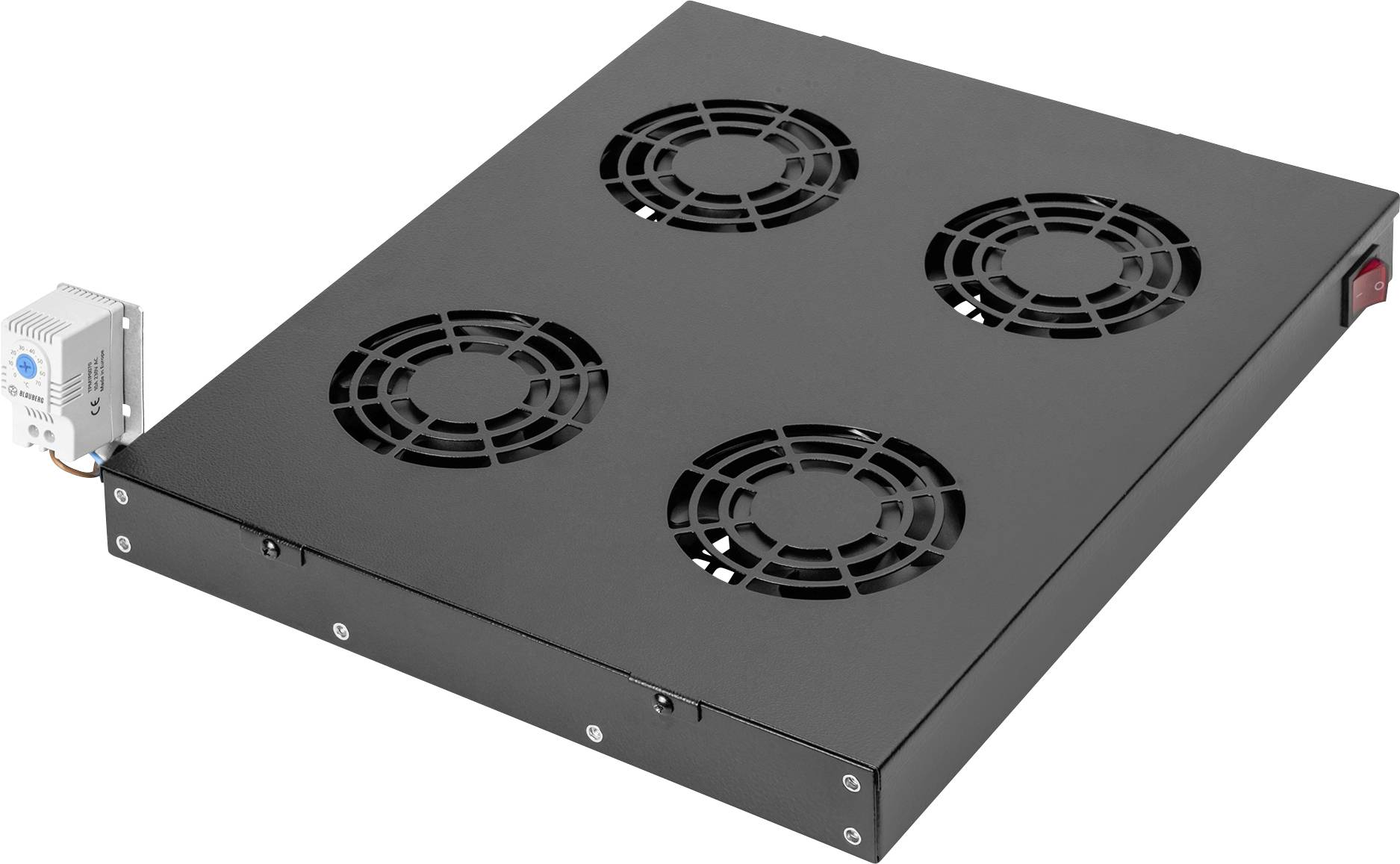

A black metal cooling fan panel with four circular fans, designed for ventilation in electronic devices or server racks.

Close-up of two circular ventilation grilles on a flat surface, indicating part of a device or machinery meant for airflow or cooling.

A close-up of a red on/off switch on a black device, next to a vent, suggesting control of device power or ventilation.

A white temperature control device with a rotary dial is set at approximately 60°C, attached to equipment, showing power connections.

'Black cooling fan unit with four circular vents, detachable power cord, mounting brackets, screws, and a small power switch box.'

1/5

Datasheet (PDF)

Dispatches on Thu, 6 Aug

83 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 176.46 / piece)

€ 176.46

plus VAT.

Report legal concerns

Highlights & Details

Roof Cooling Unit for variable 483 mm (19") installation

4 fans
Thermostat for temperature regulation

Technical specifications

Product type: Server rack cabinet fan

Suitable for server rack cabinet (inch): 19 inch

Rack unit: 1 U

Dim: (W x H x D) 490 x 50 x 400 mm

No. of fans: 4 x

Noise level: 47 dB

Material: Steel

Content: 1 pc(s)

Factory colour: Black

Width: 490 mm

Height: 50 mm

Depth: 400 mm

Weight: 5.833

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 993970 Digitus DN-19 FAN-4-HO-SW 19 inch 4 x Server rack cabinet fan 1 U Black

User & Safety Instructions

User & Safety Instructions 993970 Digitus DN-19 FAN-4-HO-SW 19 inch 4 x Server rack cabinet fan 1 U Black

Description

The Roof Ventilation Units are variable mountable into 483 mm (19") cabinets. Each fan unit comes with two sets of mounting brackets. With the standard set you can install your fan unit into any height unit space of your network- or server cabinet. The second bracket set makes the fan unit possible to be mounted into the roof of 483 mm (19") network- or server cabinets of the varioFLEX series. A switch as well as an adjustable thermostat provide best options for customizations. The model is available in standard color grey (RAL 7035) and black (RAL 9005), equipped with either two or four fans.

· For installation into 483 mm (19") unit
· incl. mounting brackets for varioFLEX roof installation
· 4 fans
· Noise level: 47 dBm
· Thermostat adjustable from 0 ~ +35°C
· On/off switch
