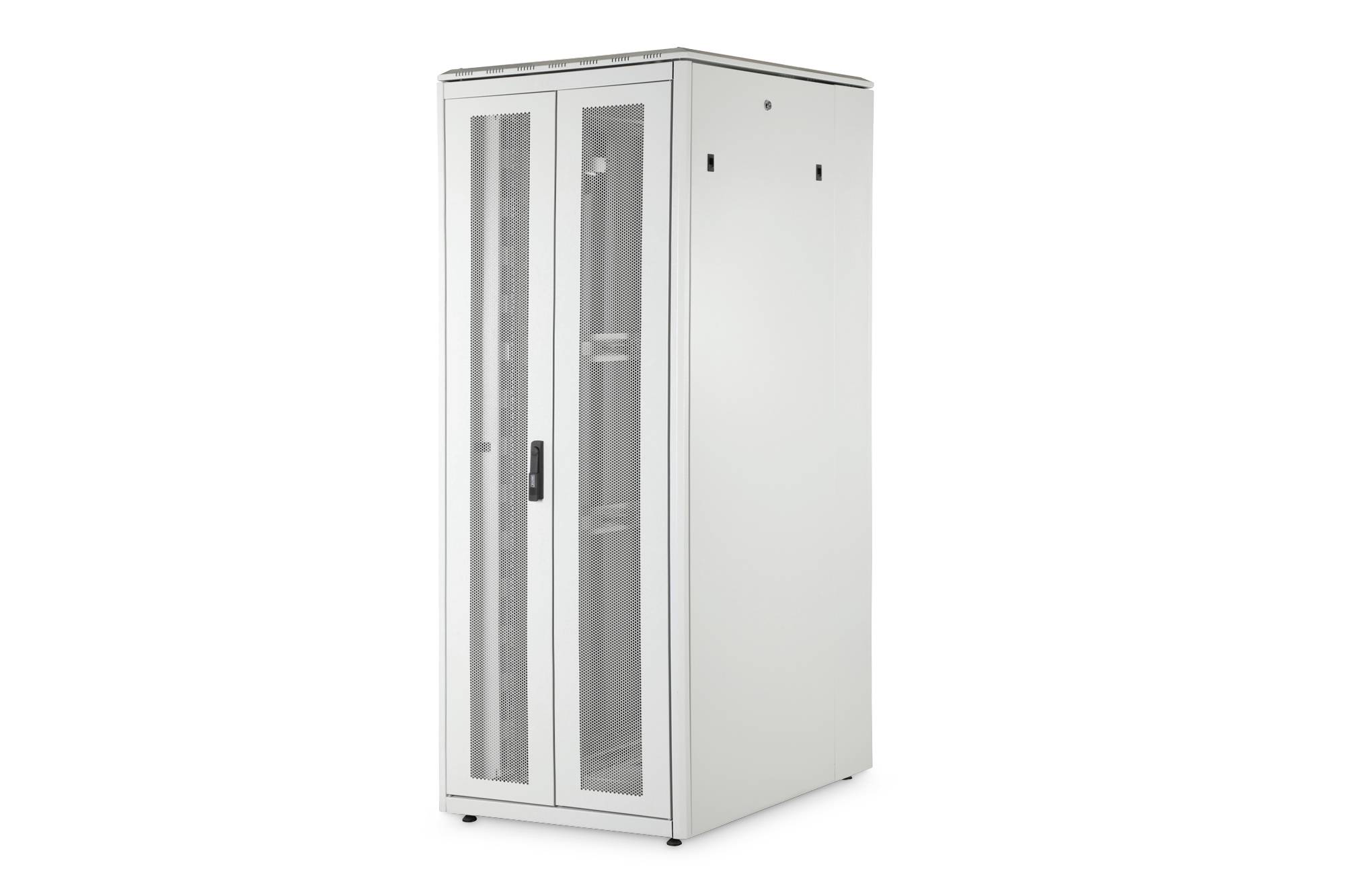

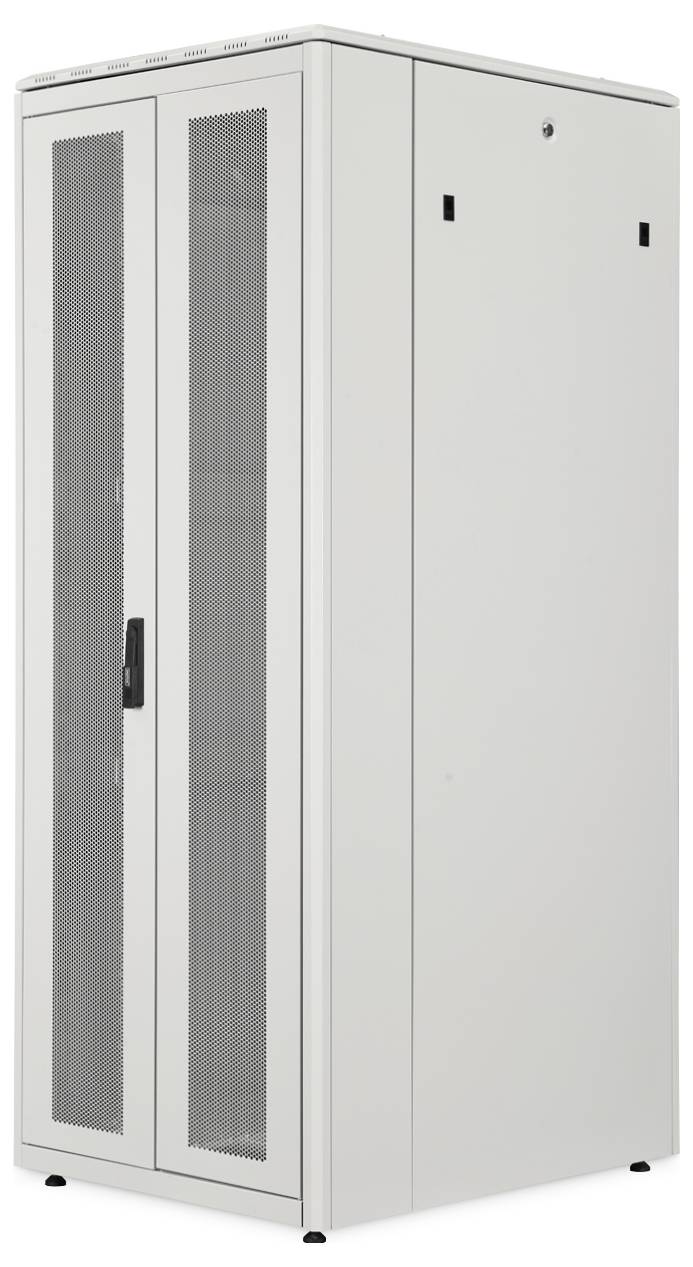

Name: Digitus DN-31306 19" server rack cabinet 42 U Grey, Grey (RAL 7035)
Brand: Digitus
SKU: 3773280

Highlights & Details

Digitus server cabinet unique server-N series - 800x1000 mm (WxD)

High load capacity of the 483 mm (19")-profile rails of up to 1200 kg
Pivot handle with profile half-cylinder lock incl. type 333 key on the front and rear doors
Modular, openable base chassis with removable 19" blind plates
Flexible cable routing options thanks to generous cable inlets with brushes in the floor and roof
Vertical cable channels with cable guides and screen installed in the front side
Integrated PDU brackets in the rear cabinet area on the left and right
Roof is prepared for the admission of a fan unit as well as an attached, removable cover
Ready to use immediately: The delivery is fitted (cabinet can be dismantled completely if required)

Technical specifications

Protection type IP20
Protection class (IK-shock resistance): IK07
Front and rear door made of 70% perforated steel

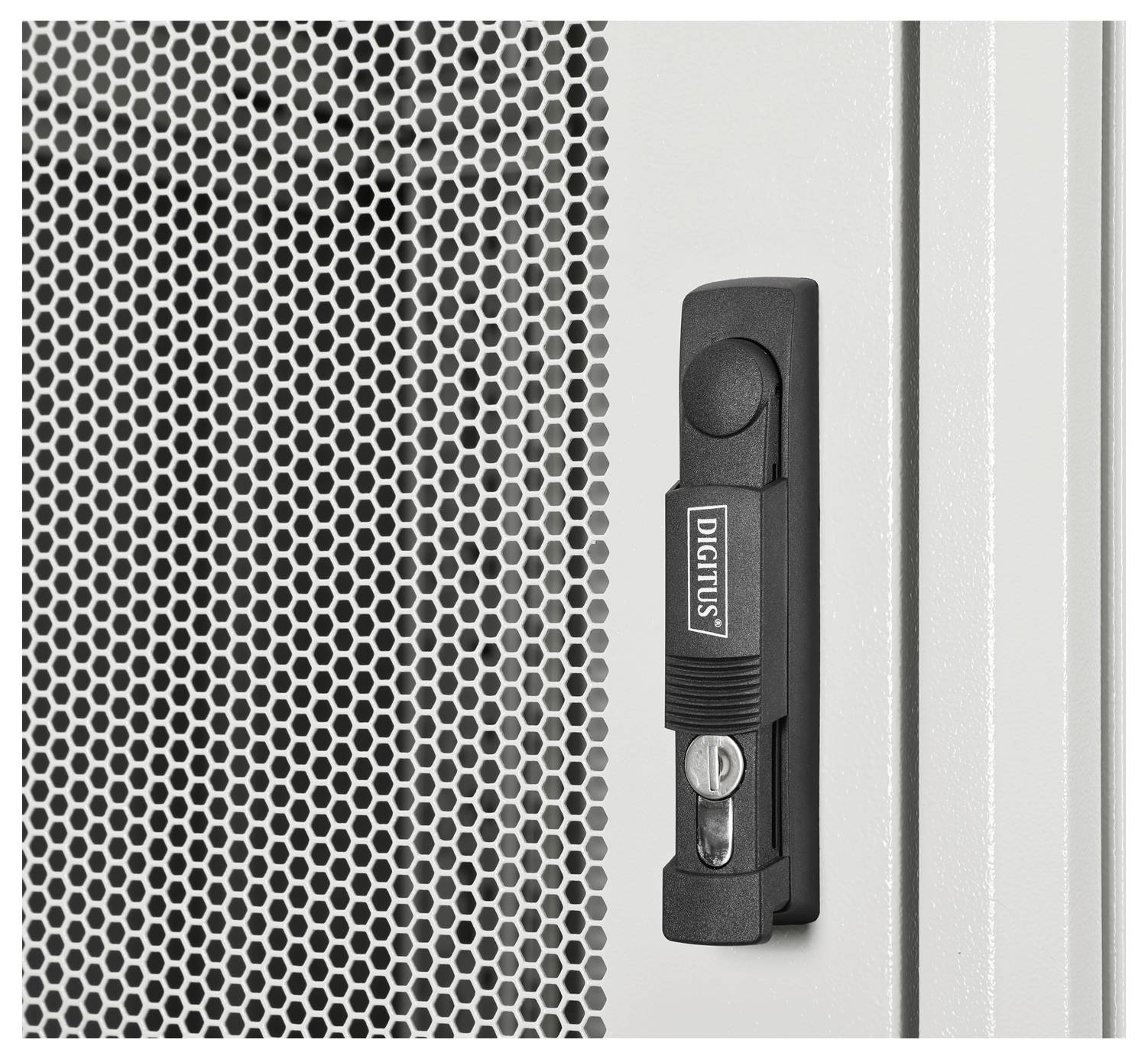

Pivot handle with profile half-cylinder lock incl. type 333 key on the front and rear doors
1-point lock on all doors
Removable side panels with type 333 Vorreiberschloss and additional snap-lock
Incl. 4 pieces of M10 leveling feet, enclosed

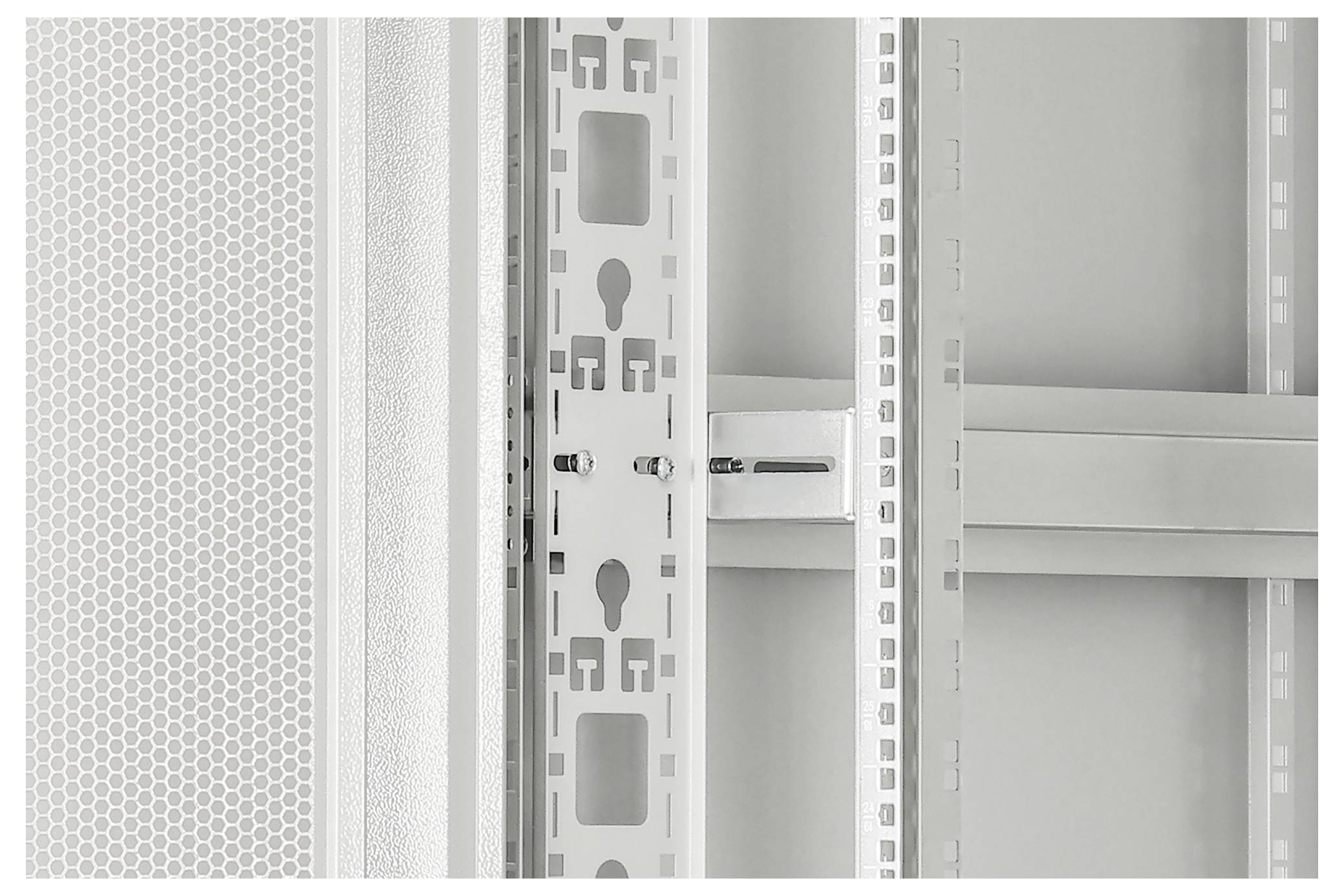

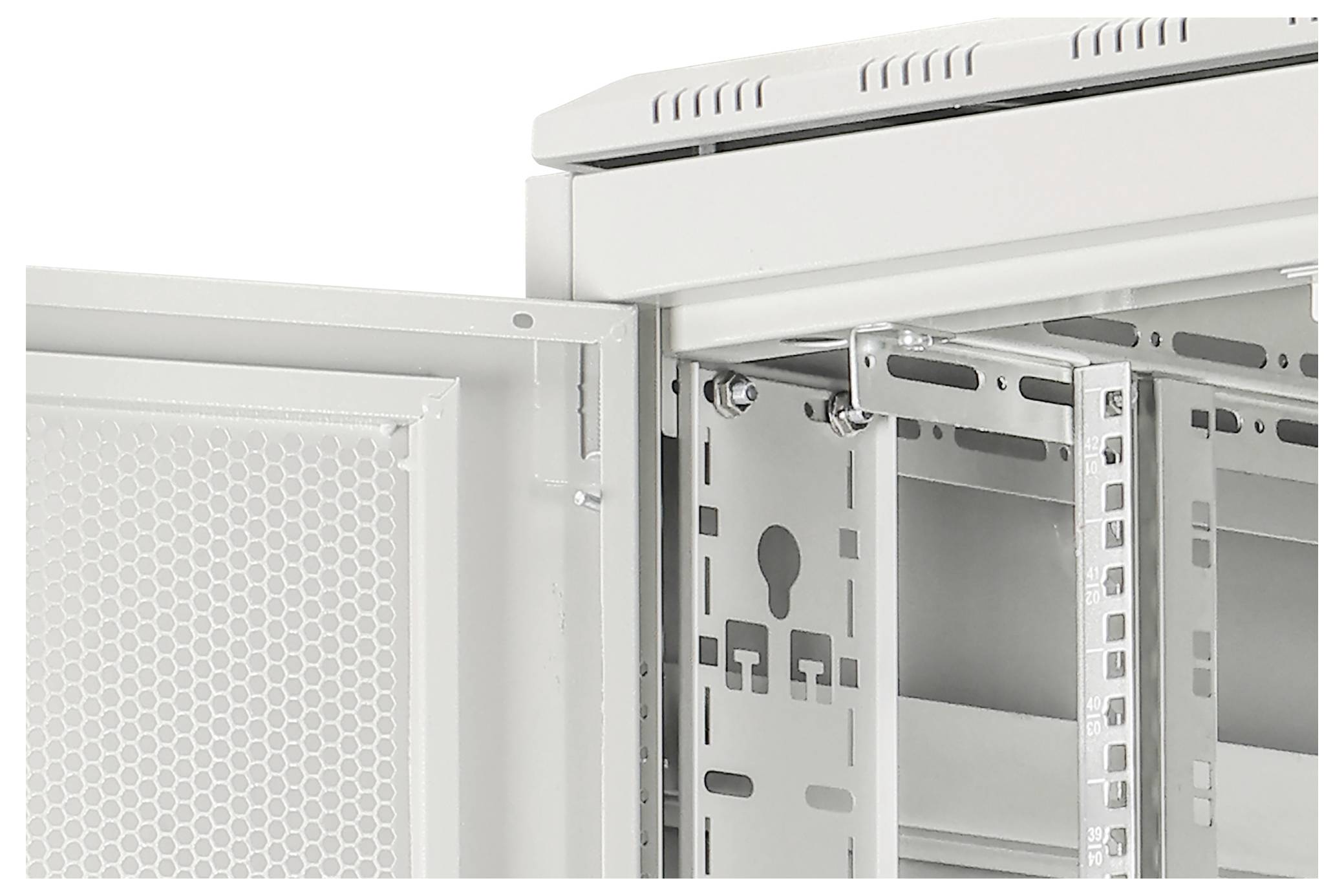

483 mm (19 ") rails installed at the front and rear within the cabinet, infinitely adjustable
483 mm (19 ") rails are galvanized and numbered in the opposite direction with the height units
483 mm (19 ") profile rails are connected with depth bars for increased stability
High load capacity of the 483 mm (19")-profile rails of up to 1200 kg
Mounting depth for components min.-max. 688-943 mm
Vertical cable channels with cable guides and screen installed in the front side

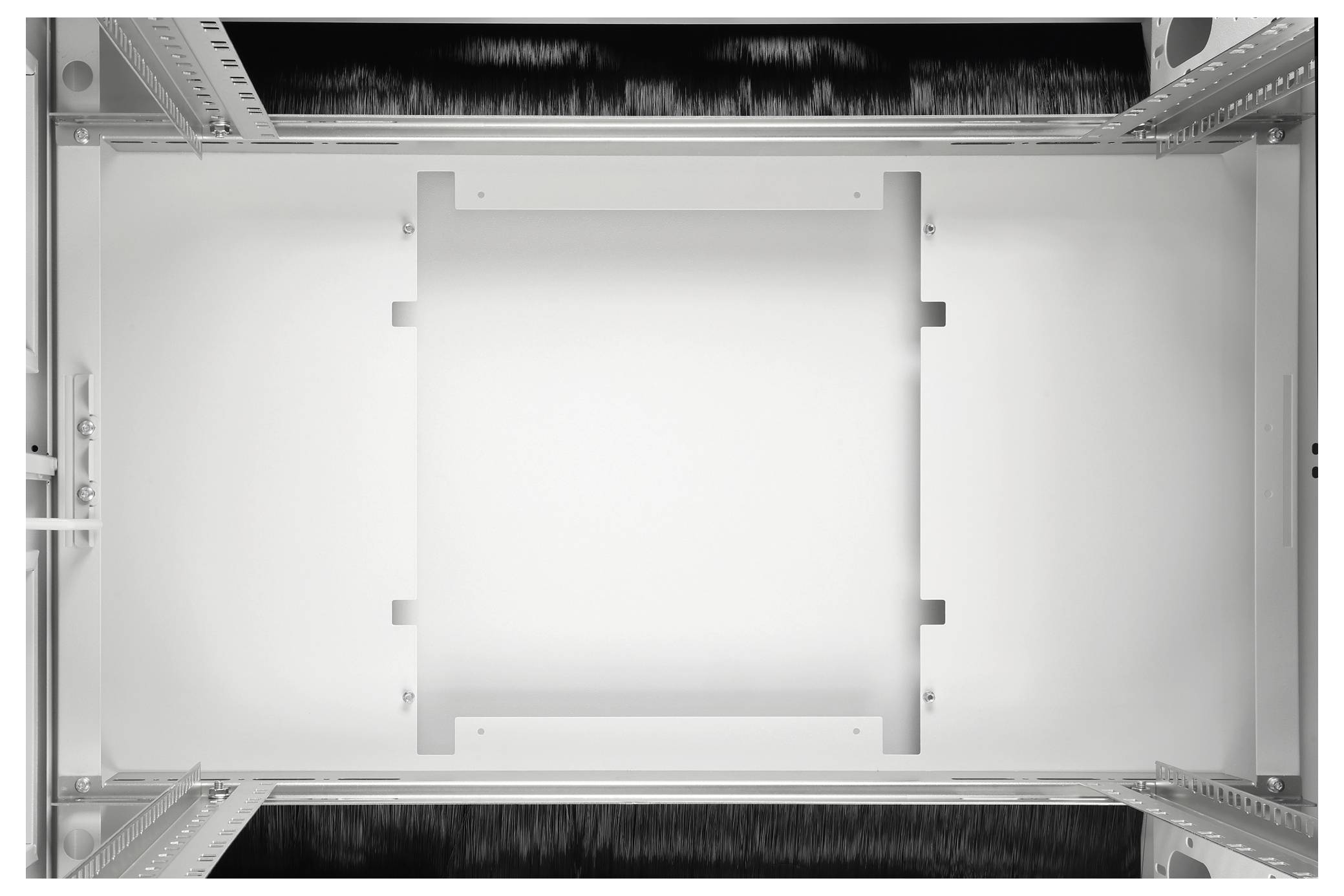

Modular, openable base chassis with removable 19" blind plates (450 x 670 mm)

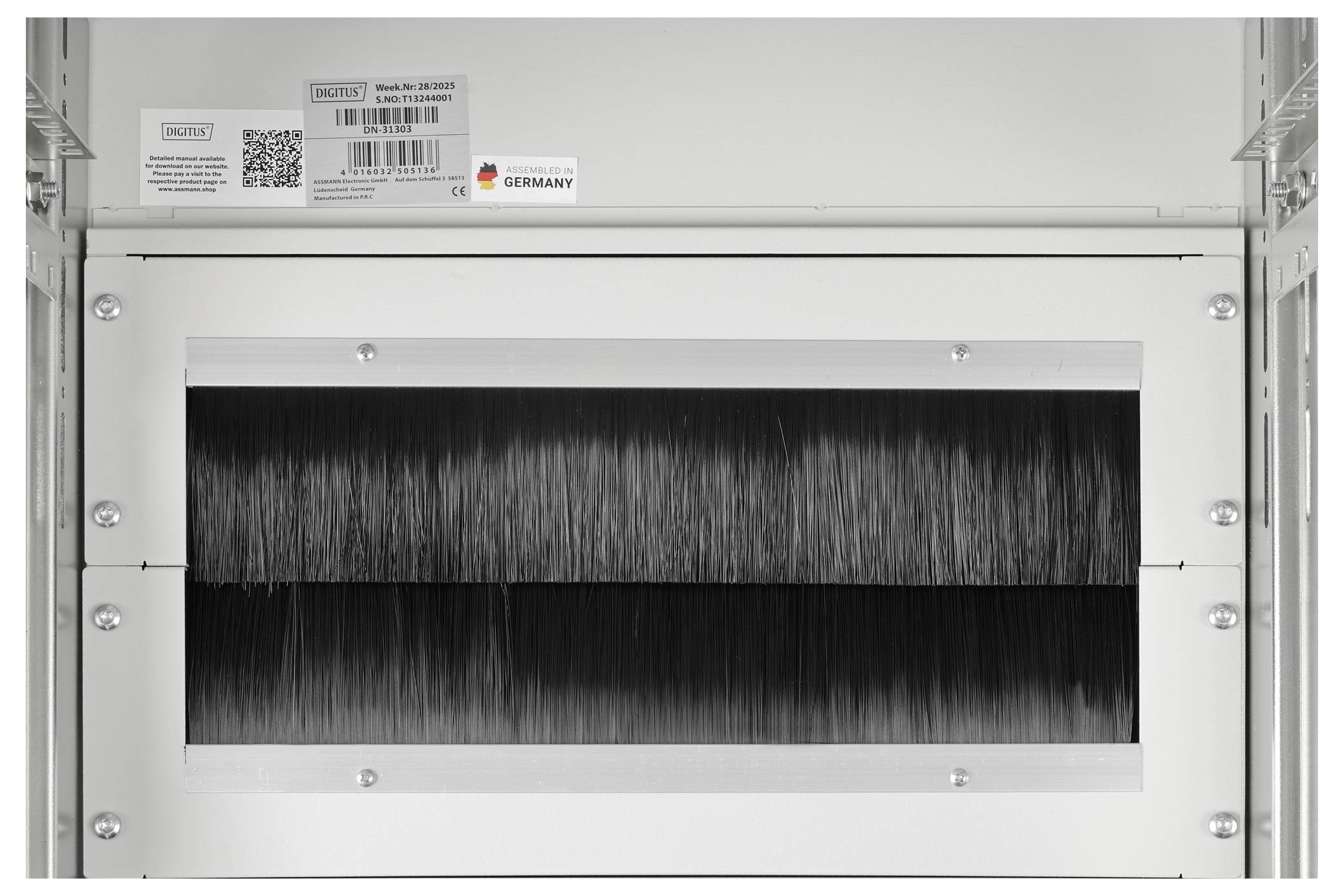

Bottom cable inlets: 400 x 170 mm (rear), 90 x 750 mm (side)
Cable inlets in roof: 90 x 750 mm (side)
Integrated PDU brackets in the rear cabinet area on the left and right
Roof is prepared for the admission of a fan unit as well as an attached, removable cover

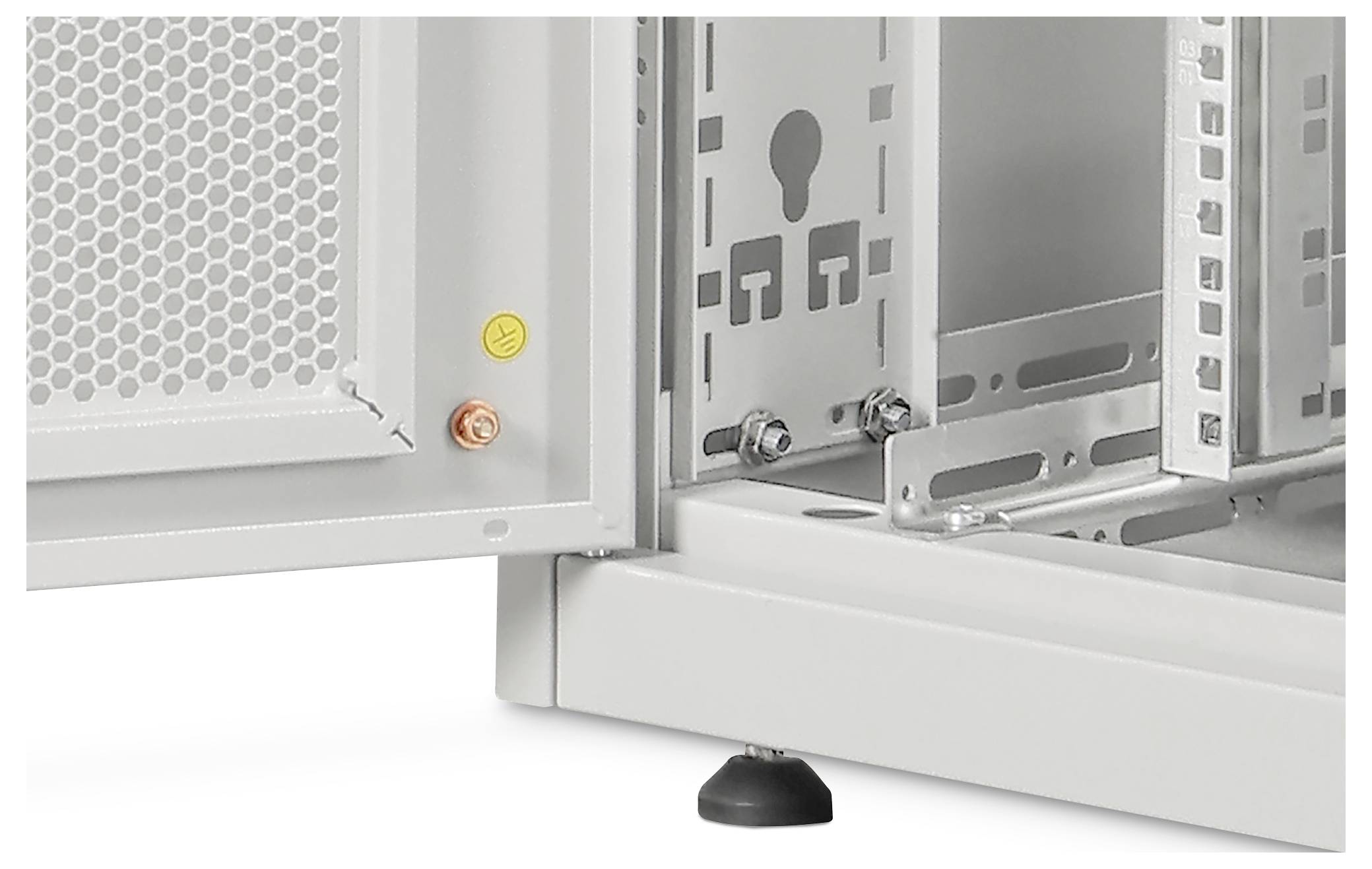

Ground points in the cabinet and on removable doors/walls
Ready to use immediately: The delivery is fitted (cabinet can be dismantled completely if required)

Product type: 19" server rack cabinet

Rack unit: 42 U

Material: Steel plate

Factory colour: Grey
Grey (RAL 7035)

Rack size: 483 mm (19")

UKCA: yes

Documents & Downloads

Datasheet

Datasheet 3773280 Digitus DN-31306 19" server rack cabinet 42 U Grey, Grey (RAL 7035)

User & Safety Instructions

User & Safety Instructions 3773280 Digitus DN-31306 19" server rack cabinet 42 U Grey, Grey (RAL 7035)

Description

The server cabinets of the Unique Server-N series were designed and produced for an especially comfortable and flexible network cabling. Sophisticated optimizations provide market-compliant stability with maximum flexibility. A modular, open floor chassis with screwed-on 483 mm (19") blind plates offers adequate space for all types of cables. In addition, brush cable inlets are located at the rear of the floor chassis. Large vertical cable channels with cable routing guides and cover, installed in the front side (from 800 mm cabinet width), as well as integrated brackets for power strips in the rear cabinet area, perfectly round off the various features of the server cabinet. Perforated steel doors, both front and rear, provide improved air circulation and thus optimal passive cooling. Two pairs of bent and galvanized galvanized, with height units that can be read in opposite directions 483 mm (19")-profile rails are installed in the interior. They can be adjusted in a continuously variable manner and are connected with additional depth braces in the cabinet. Each cabinet is a sturdy steel construction made of up to 1.5 mm thick steel sheet. The coloring is in the form of electrostatic powder coating in the standard colors gray (RAL 7035) and black (RAL 9005). Modular locking and removable side panels as well as doors improve accessibility. A door stop can be changed. Furthermore, due to the disasseeable design, the cabinets can be completely dismantled if required.

This text is machine translated.

Scope of delivery

Grounding cable-set
Installation set (screws, cage nuts, washers)
2 x key
4 x Leveling base, M10

Hints

Please provide a phone number when placing your order, to allow us to arrange for a delivery date.
