Digitus DN-93619-24 RJ45 module Keystone CAT 5e, CAT 6, CAT 6A, CAT 6a (CAT 7 cable) 24 pc(s)
EAN:
Part number:
Item no:
Number (Package size 24 pc(s))
Total (€ 92.43 / piece)
€
Only 3 Set(s) available
Highlights & Details
Cat 6A Keystone module, shielded with intelligent cable manager, set (24 pieces)
- Strain relief and cable fixing by means of intelligent cable management
- 360° shield contacting
- Suitable for field assembly (tool-free installation)
- Design-compatible - suitable for patch panel and junction box mounting
Technical specifications
- Material casing: Die-cast zinc – nickel-plated
- Contact material: Phosphorbronze
- Contact coating: Nickel, gold plated 0.5 μ
- Insertion force: Max. 30N (acc. To IEC 60603-7-51)
- Holding force: 7.7 kg between socket and plug
- Operating temperature -20 °C to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
- MATING CYCLES: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
- Copper wire diameter AWG (26/7 - 22/1), stranded wire and solid wire
- Dimensions (HxWxD) 21.0 x 14.5 x 34.5 mm
- Weight: 19.5 g
- F arbe: Silver
- Design: Socket (Jack)
- Connection type: LSA
- Shielded: Yes
- Category 6a (IEC)
- Suitable for round cable: Yes
- Suitable for stranded conductors: Yes
- Suitable for solid conductors: Yes
- Connector type RJ45 8(8)
- AWG range 26 … 22
- Compatible with
Keystone
- Product type
RJ45 module
CAT 5e
CAT 6
CAT 6A
CAT 6a (CAT 7 cable)
- Tool-free installation
Yes
Variants(All information is without VAT, plus shipping costs)
Specification
Digitus DN-93619-24 RJ45 module Keystone CAT 5e, CAT 6, CAT 6A, CAT 6a (CAT 7 cable) 24 pc(s)
This article
CAT 5e
Minimum order quantity: 1
Multiple: 1
€ 92.43*
Digitus DN-93617-24 RJ45 module Keystone CAT 6A
CAT 6A
Minimum order quantity: 1
Multiple: 1
€ 58.82*
Description
The shielded CAT 6A Keystone module set DN-93619-24 by DIGITUS® convinces by future-oriented standards and high-end quality for your network. The modules have a 360° shield contact, a locking lever made of metal and a resealable, intelligent cable manager for strain relief and cable fixing. The compact design allows a series installation of 24 units in 483 mm (19") 1HE panel. The tool-free installation takes place via LSA strips, color-coded according to EIA/TIA 568 A&B. Due to its compact design, the module also fits in design-compatible modular junction boxes.
This text is machine translated.
This text is machine translated.
Features
- Cat 6A with LSA-cutting terminals
- Metal locking lever
- Dust protection cap for RJ45 socket
- GHMT certified
- Tested with AWG 22/1 solid installation cable
Scope of delivery
- 24x CAT 6A Keystone module
Frequently Bought Together
(*All information is plus legal VAT) This article
Digitus DN-93619-24 RJ45 module Keystone CAT 5e, CAT 6, CAT 6A, CAT 6a (CAT 7 cable) 24 pc(s)
Conrad Electronic
€ 92.43*
![Digitus RJ45 connector Networks Adapter CAT 6a (CAT 7 cable) , CAT 6A, CAT 6 [1x LSA - 1x LSA] Silver](https://asset.conrad.com/media10/isa/160267/c1/-/en/002182604PI00/digitus-rj45-connector-networks-adapter-cat-6a-cat-7-cable-cat-6a-cat-6-1x-lsa-1x-lsa-silver.jpg)
Digitus RJ45 connector Networks Adapter CAT 6a (CAT 7 cable) , CAT 6A, CAT 6 [1x LSA - 1x LSA] Silver
Conrad Electronic
€ 6.29*

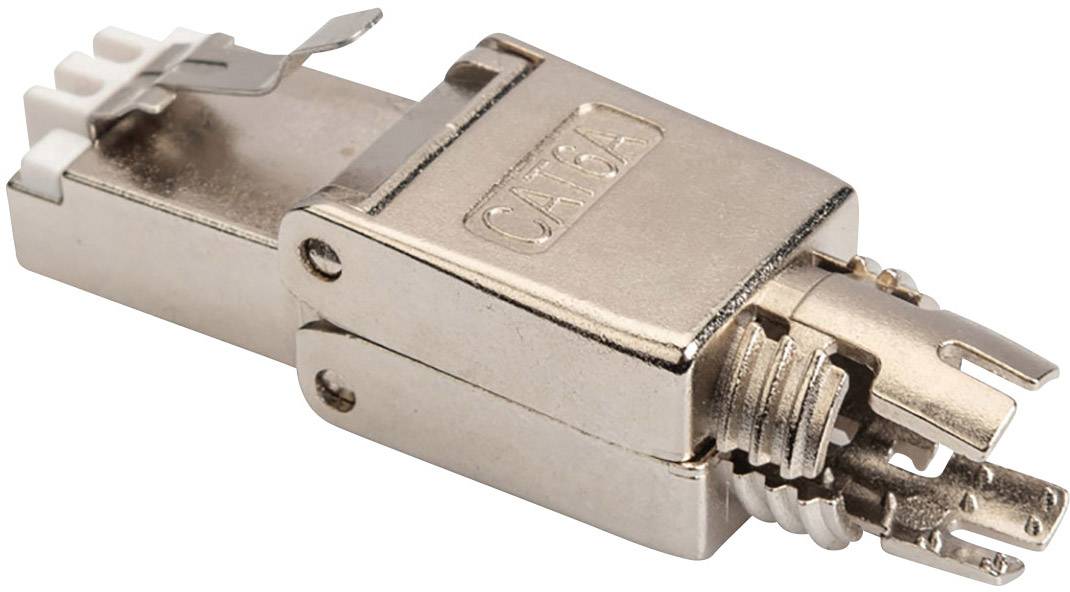

Digitus DN-93634 Digitus DN-93634 N/A DN-93634 Plug, straight No. of pins (RJ) 8P8C Silver 1 pc(s) DN-93634 Plug, straig
