Name: Digitus DS-55506 HDMI / RJ45 Adapter [1x HDMI socket - 2x HDMI socket] Black 4K UHD
Brand: Digitus
SKU: 2860265
Availability: InStock

Two black HDMI extenders by Digitus with multiple ports, including RJ45 and Micro-USB.

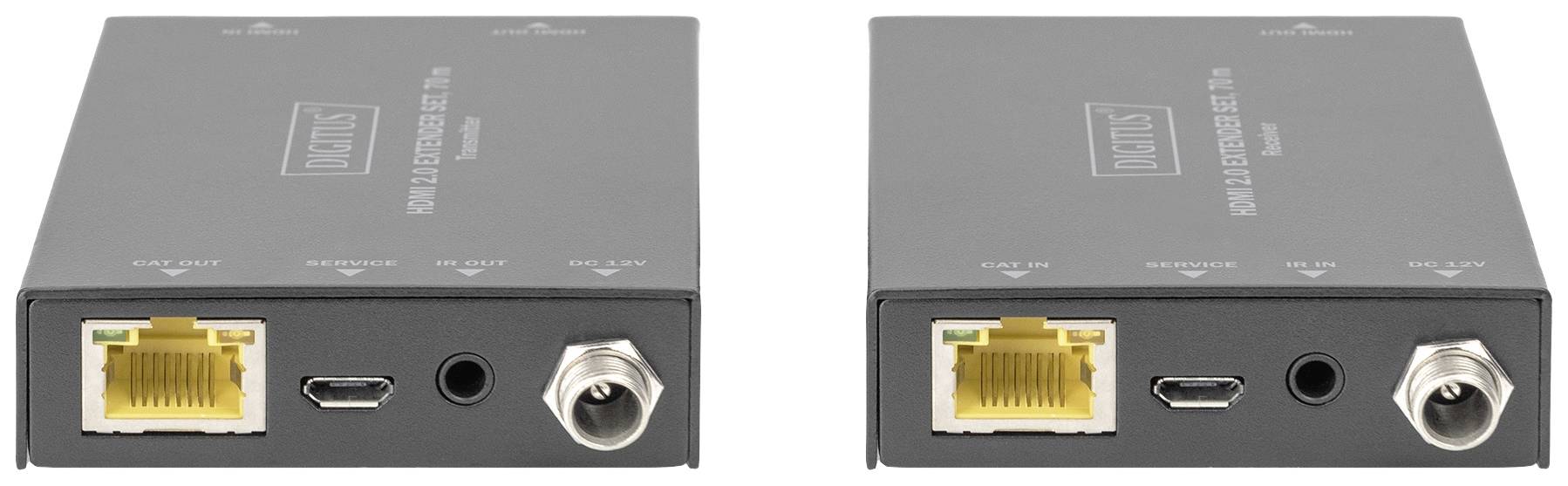

Two black network transceivers with Ethernet, USB, and BNC ports on the front and rear panels.

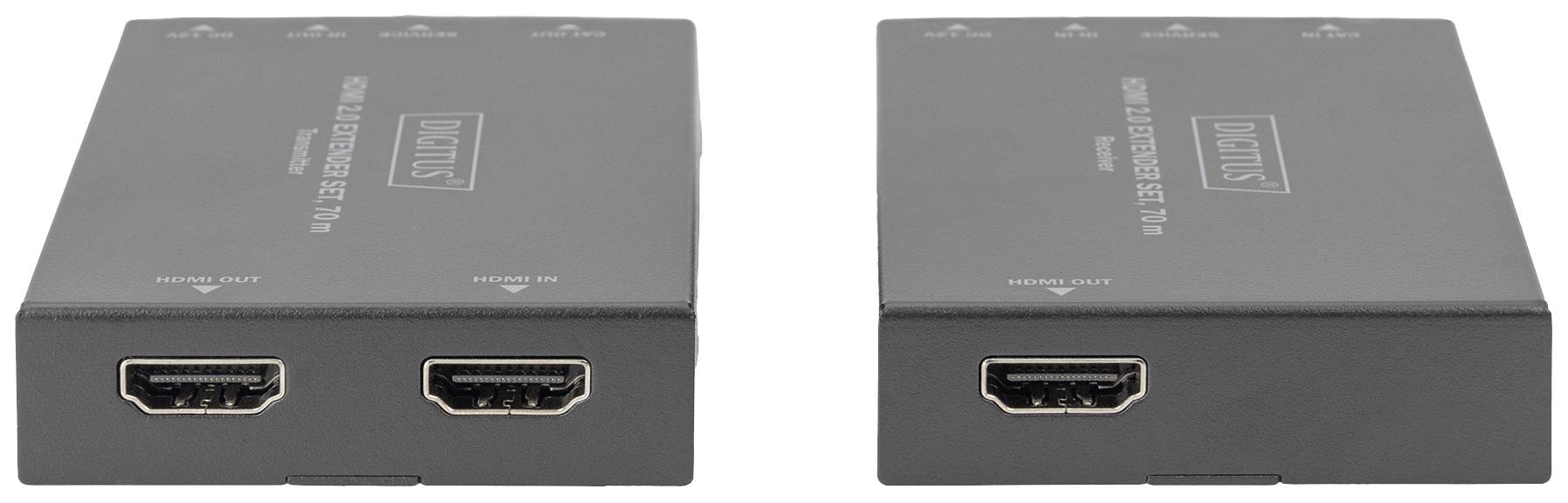

Two black HDMI extenders are lying side by side. Each has two HDMI ports. They are designed for transmitting video signals.

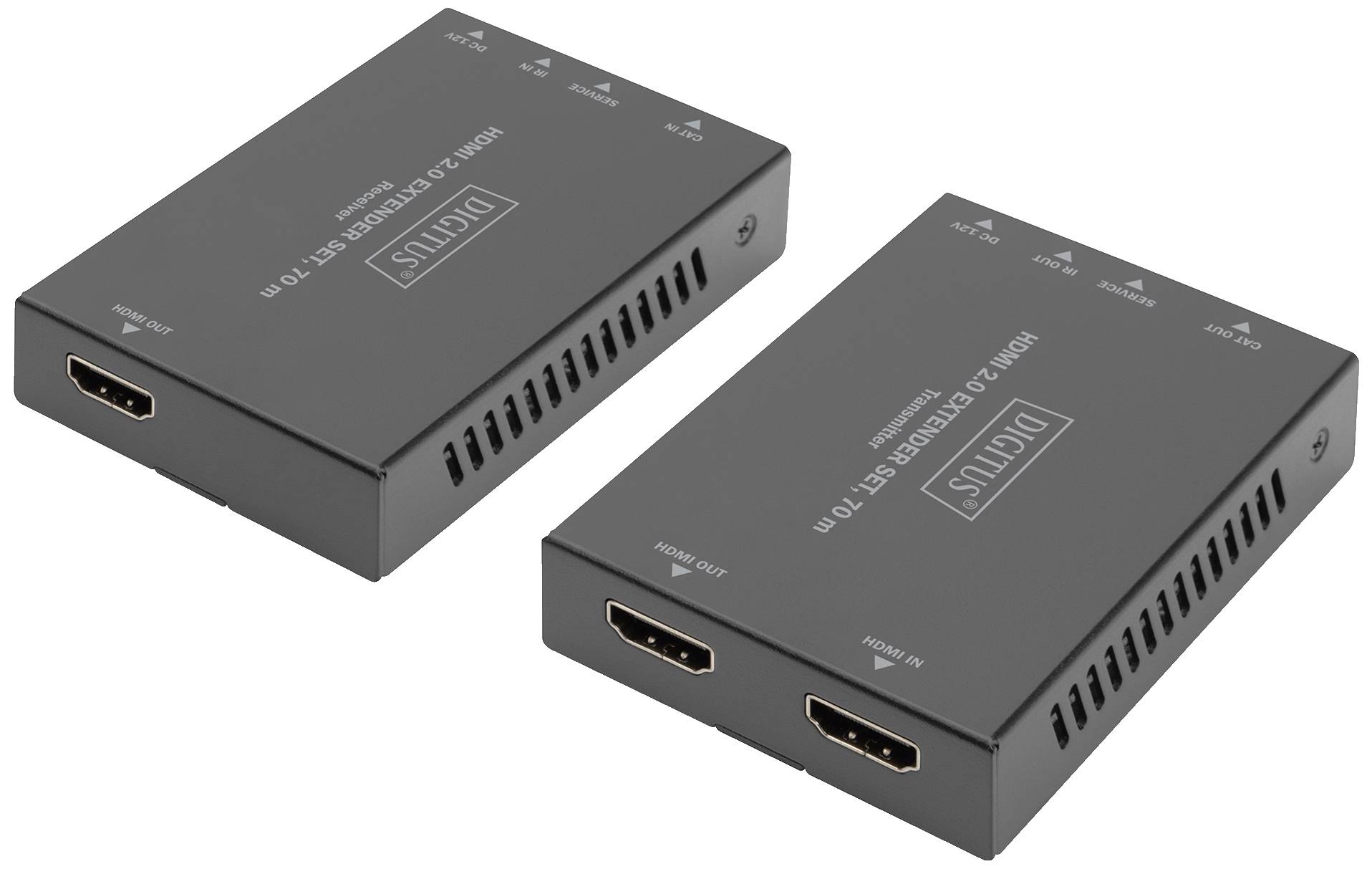

Two black HDMI extenders with the inscription 'HDMI 2.0 Extender Set 70 m'. They are arranged side by side.

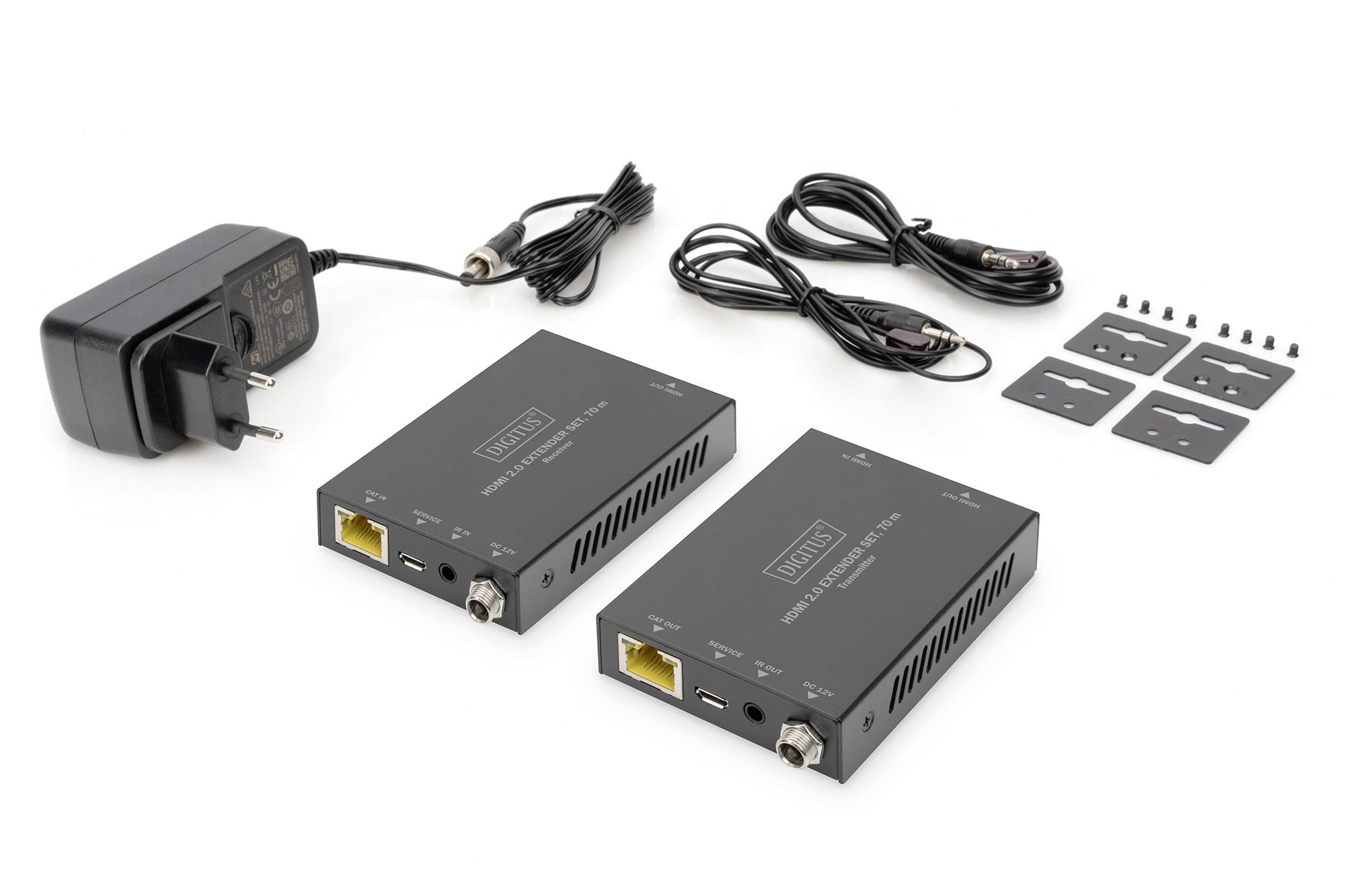

Two HDBaseT extenders with power supply and cables. Primary purpose: Extending HDMI signals over longer distances using network cables.

1/5

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

11 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 114.99 / piece)

€ 114.99

incl. VAT

14-day return policy included

Report legal concerns

Alternative article by SPEAKA PROFESSIONAL

SpeaKa Professional SP-HDE-200 HDMI™ HDMI extender via RJ45 network cable 70 m

Fast track dispatch on Thu 29 Oct

€ 42.99

incl. VAT plus

Highlights & Details

Digitus DS-55506 HDMI / RJ45 Adapter [1x HDMI socket - 2x HDMI socket] Black 4K UHD

HDMI 2.0
18 Gbps video bandwidth
Supports 4K2K/60 Hz, 4:4:4

Technical specifications

HDMI 2.0
18 Gbps video bandwidth
Supports 4K2K/60 Hz, 4:4:4
HDCP 2.2 / 1.4
Supports Cat5e, CAT 6, CAT 6A, CAT 7 network cable
Maximum transmission distance 70 m at a resolution of 4K/30Hz
Maximum transmission distance 60 m at a resolution of 4K/60Hz
PoC (Power over Cable) - only one unit requires an external power supply
Automatic EDID recognition
HDR support
Connections in the transmitter unit:
1x HDMI input (4K/60Hz) - signal source connector
1x HDMI Loop-Out / output - connection of local monitor (source device)
1x RJ45 output - connection CAT transfer cable
1x micro USB input - service/FW update
1x IR output - connection of IR transmitter
1x power supply input (DC 12V/1A) - connection of external power supply
Connections receiver unit:
1x HDMI output (4K/60Hz) - output device connection
1x RJ45 input - connection CAT transfer cable
1x micro USB input - service/FW update
1x IR input - IR receiver connection
1x power supply input (DC 12V/1A) - connection of external power supply
Suitable for wall mounting
ESD Protection
Operating temperature 0 -40°
Power consumption: Approx. 3.84 W
Housing: metal
Dimensions (1 unit): L 8.8 x W 6.1 x H 1.8 cm
Weight (1 unit): 160 g
Colour, black
KVM: No.
Power over Ethernet (PoE): No.

Product type: TV/monitor Adapter

Connection type: HDMI
RJ45

No. of A connectors: 1 x

Type A: HDMI socket

No. of B connections: 2 x

Type B: HDMI socket

Factory colour: Black

Video resolution: 1920 x 1080 Pixel
2040 x 1080 Pixel
2560 x 1440 Pixel
3840 x 2160 Pixel

Cable features: 4K UHD

Cable use: TV/monitor

Version: Adapter

Range of use: Monitors/TV adapters

HDMI version: HDMI 2.0

Cable version: HDMI Premium High Speed

Cable specs: HDMI 2.0

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2860265 Digitus DS-55506 HDMI / RJ45 Adapter [1x HDMI socket - 2x HDMI socket] Black 4K UHD

Description

The Digitus HDMI extender set enables HDMI signal transmission over a distance of up to 70 m (4K/30Hz). The extender set supports UHD resolution (4K2K/60 Hz, 4:4:4, 18 Gbps) via a CAT 6/7/8 cable (60m distance). Thanks to PoC, only one unit with an external power supply unit needs to be supplied with power. HDR, HDCP support and automatic EDID recognition are also part of the service spectrum. A local monitor can be connected via the HDMI loop out and the transmitter, in order to monitor the output at the receiver.

This text is machine translated.
