Digitus DS-55524 DisplayPort Adapter [1x DisplayPort socket - 1x DisplayPort socket] Silver 4K UHD 30 m

Silver HDMI adapter with an 'IN' and an 'OUT' socket, presumably for video transmission.

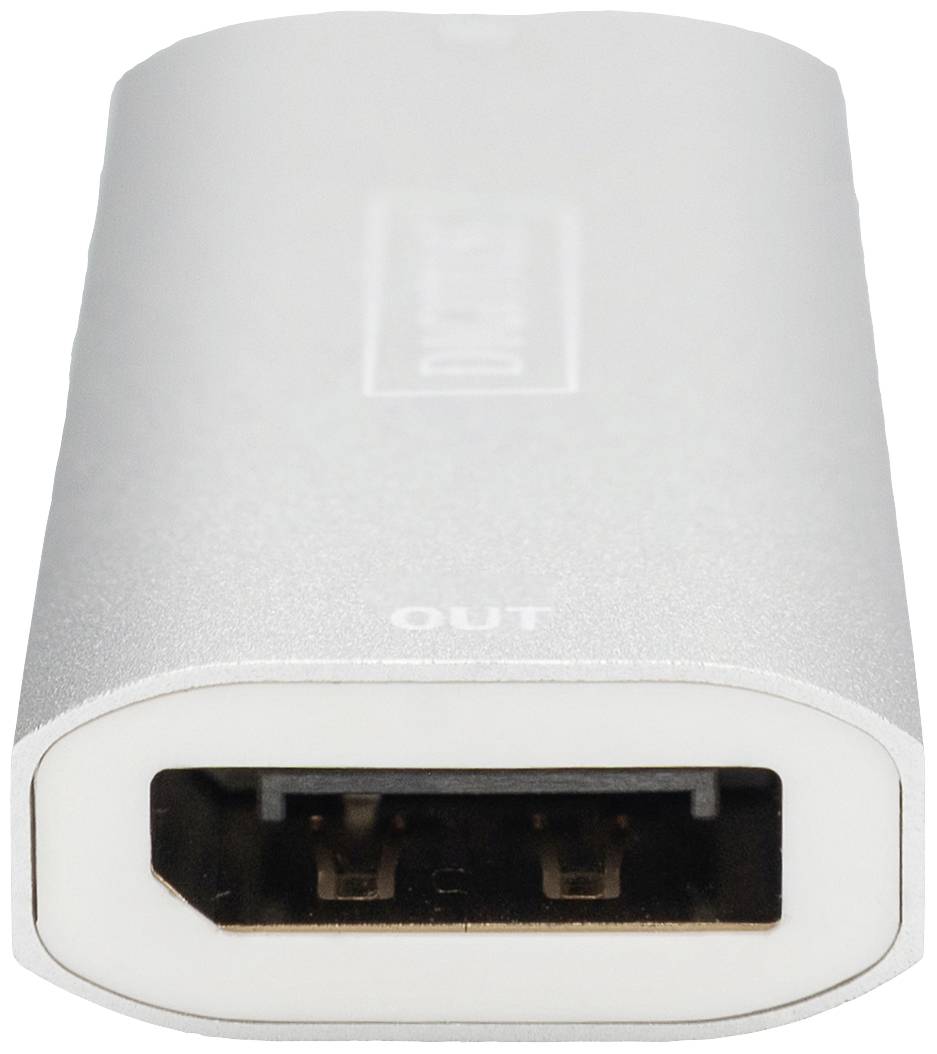

Silver HDMI adapter with an HDMI port on one side and 'OUT' labelling.

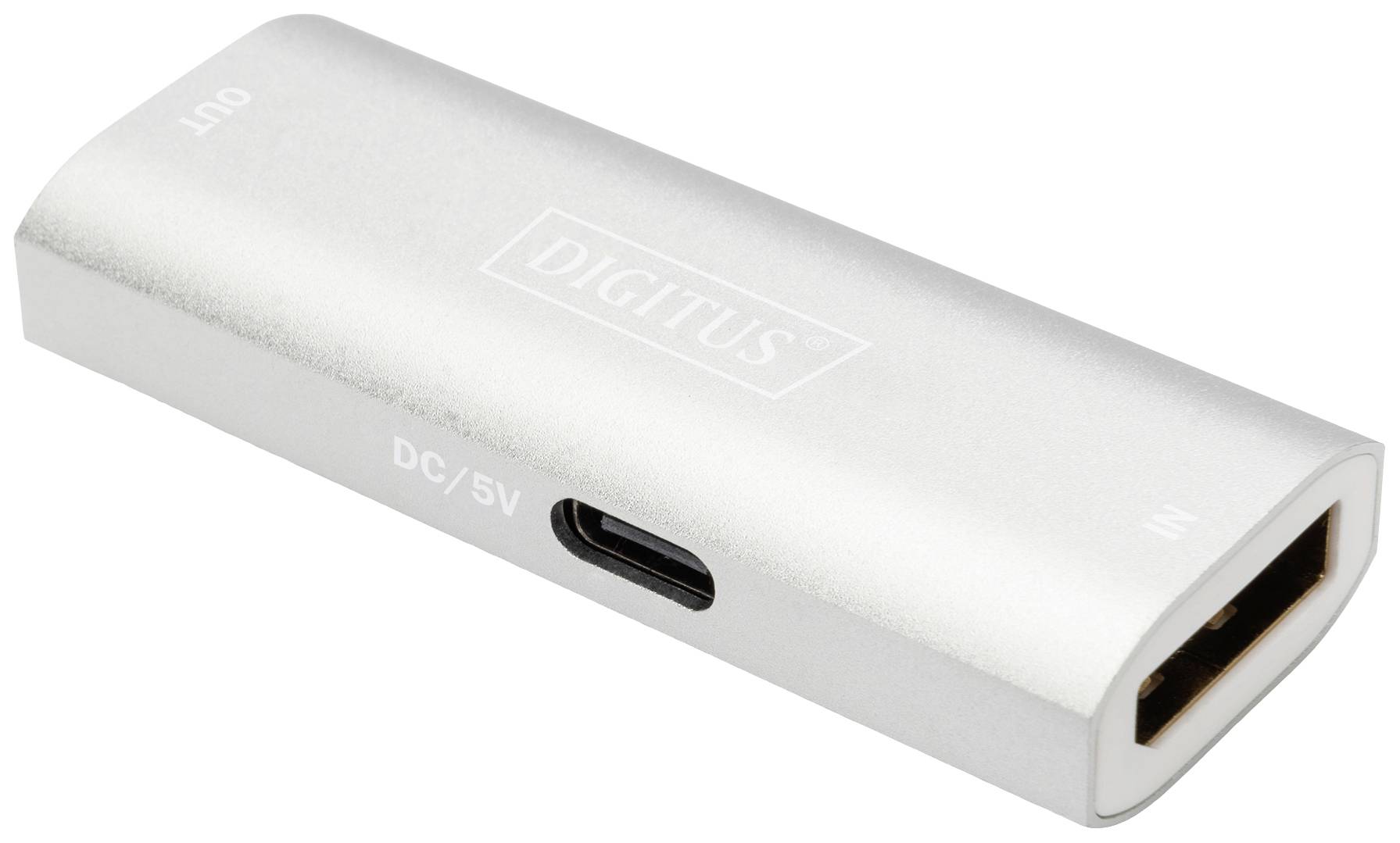

A silver HDMI converter by Digitus with a USB-C port for power supply. Labelled with 'OUT' on the left and 'IN' on the right.

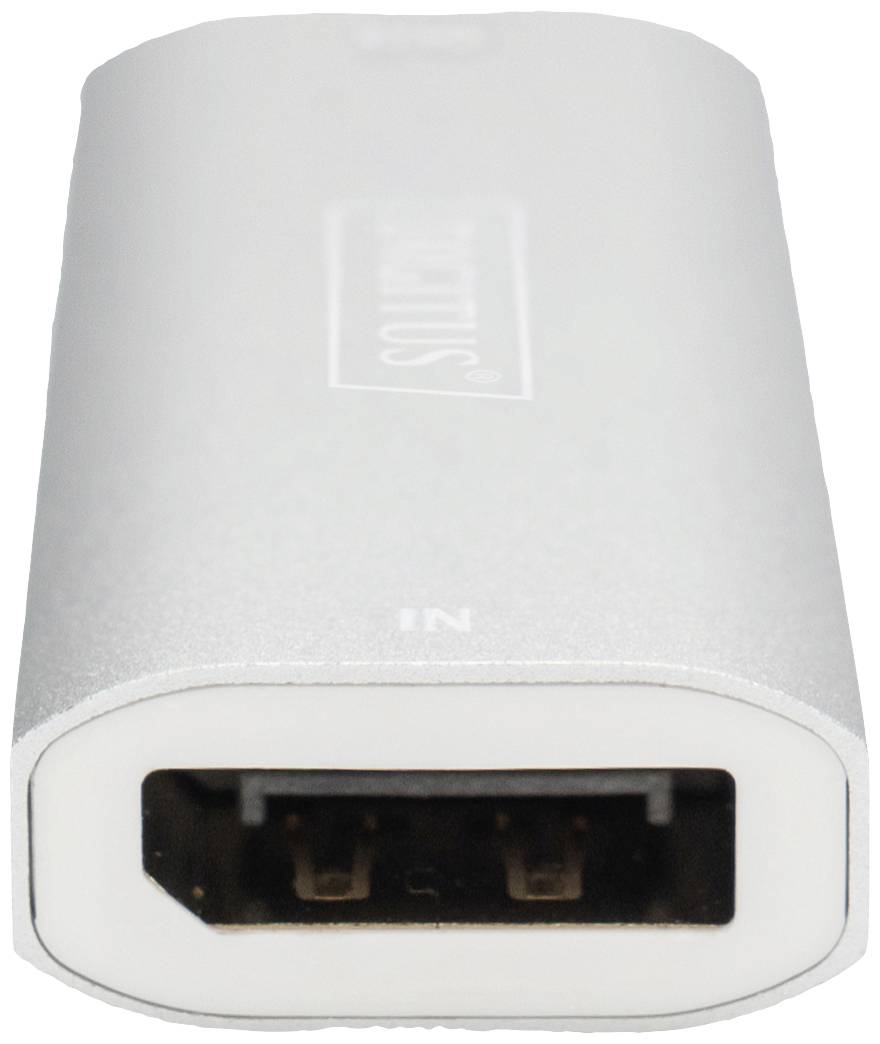

A silver adapter with an HDMI port, typical for connecting audiovisual devices.

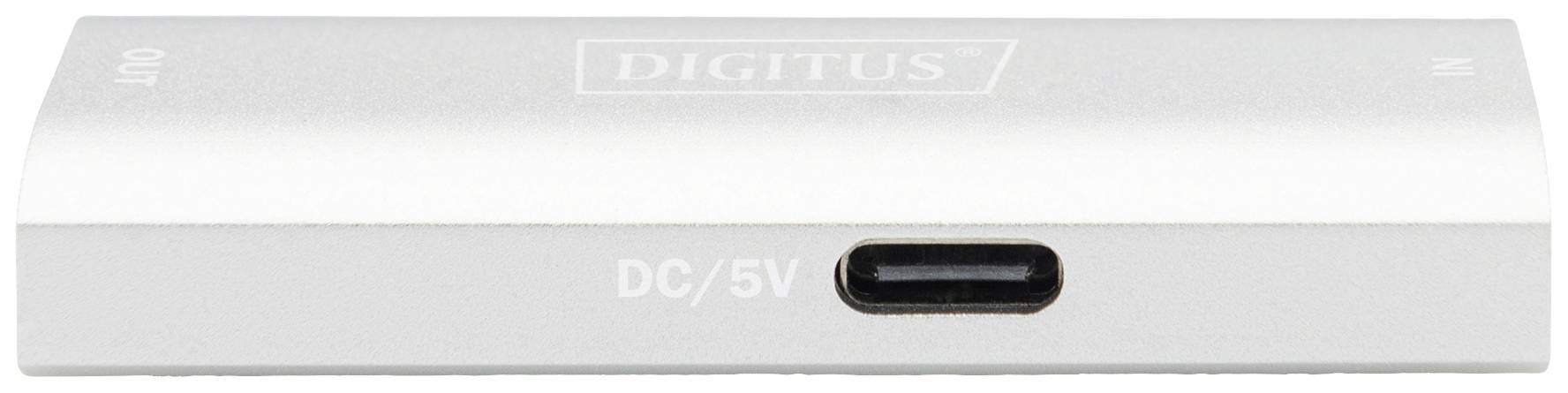

Small, silver device (brand 'Digitus') with USB-C port, labelled 'DC/5V'.

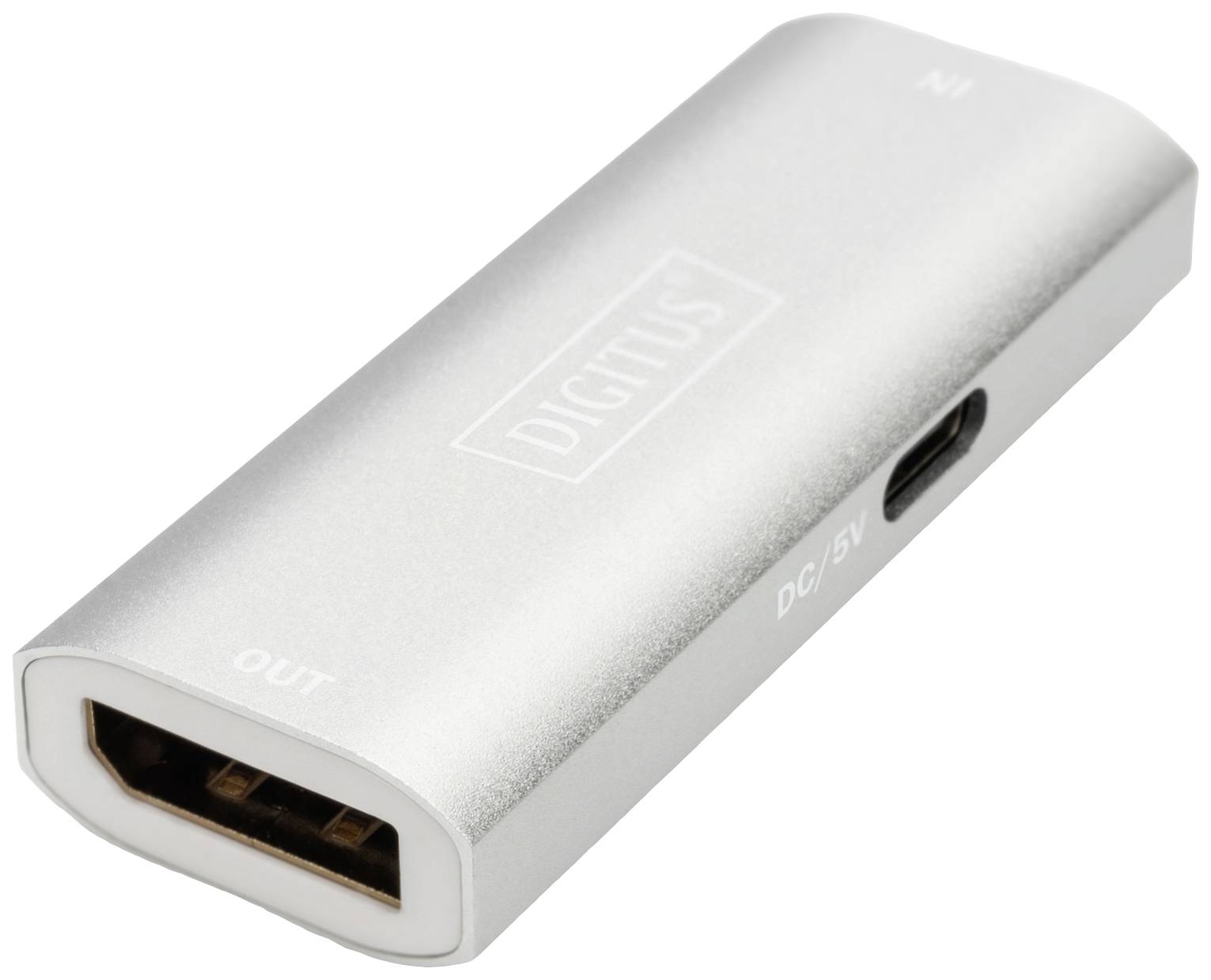

Silver Digitus HDMI adapter with input and output ports, along with a DC/5V connection on the side.

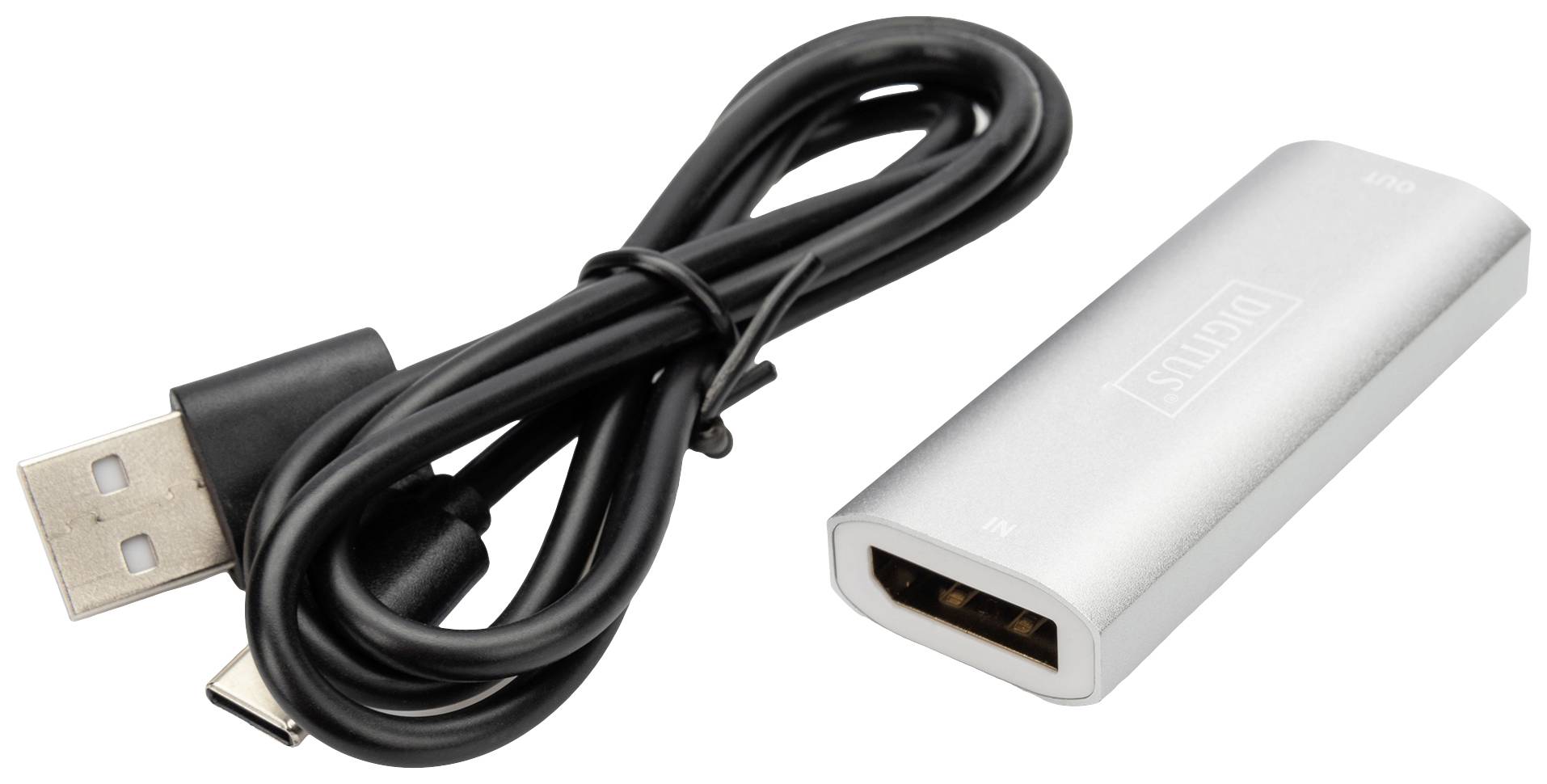

A silver-coloured USB-C adapter next to a black USB cable. The adapter has a USB-C port and is used for connecting devices.
1/7
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 6.99 / piece)
€ 6.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Digitus DS-55524 DisplayPort Adapter [1x DisplayPort socket - 1x DisplayPort socket] Silver 4K UHD 30 m

  • Supports 8K/30Hz, 4K/120Hz, 4K/60Hz
  • Extension 8K/30Hz: Up to 15 m (AWG 28 or higher DP cable)
  • 4K/60Hz extension: Up to 30 m (AWG 28 or higher DP cable)

Technical specifications

  • 1x DP input
  • 1x DP-Output
  • 1x USB-C input
  • Supports 8K/30Hz, 4K/120Hz, 4K/60Hz
  • Extension 8K/30Hz: Up to 15 m (AWG 28 or higher DP cable)
  • 4K/60Hz extension: Up to 30 m (AWG 28 or higher DP cable)
  • Supports HDR (High Dynamic Range)
  • VESA display port 1.4
  • Power supply via USB cable
  • Data rate 1.62 Gbps/2.7 Gbps/5.4 Gbps/8.1 Gbps
  • Aluminium casing
  • Dimensions: L 6 x W 2.3 x H 1.8 cm
  • Weight: 17 g
  • Colour: Silver.
  • KVM: No.
  • Power over Ethernet (PoE): No.
Product type

TV/monitor Adapter

Connection type

DisplayPort

No. of A connectors

1 x

Type A

DisplayPort socket

No. of B connections

1 x

Type B

DisplayPort socket

Cable length

30 m

Factory colour

Silver

Video resolution

1920 x 1080 Pixel

2040 x 1080 Pixel

2560 x 1440 Pixel

3840 x 2160 Pixel

Cable features

4K UHD

Cable use

TV/monitor

Version

Adapter

Range of use

Monitors/TV adapters

DisplayPort version

DisplayPort 1.4

HDMI version

HDMI 1.4a

Cable specs

DisplayPort 1.4

UKCA

yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2860279 Digitus DS-55524 DisplayPort Adapter [1x DisplayPort socket - 1x DisplayPort socket] Silver 4K UHD 30 m

Description

The repeater offers the option of extending a DP signal to up to 30 m. This corresponds to the VESA DisplayPort standard 1.4. Resolutions up to 8K/30Hz are supported. The power is supplied via USB using the enclosed cable.

This text is machine translated.

Features

  • Supports HDR (High Dynamic Range)
  • VESA display port 1.4
  • Power supply via USB cable
  • Plug & Play
  • Data rate 1.62 Gbps/2.7 Gbps/5.4 Gbps/8.1 Gbps

Scope of delivery

  • 1x 8K DisplayPort repeater
  • 1x USB cable, 80 cm
  • 1x QIG
