Name: DIN 43650 Black Molex WOD Industrial Solution Pins:2 1210500554 Molex Content: 1 pc(s)
Brand: Molex
SKU: 2447167
Availability: InStock

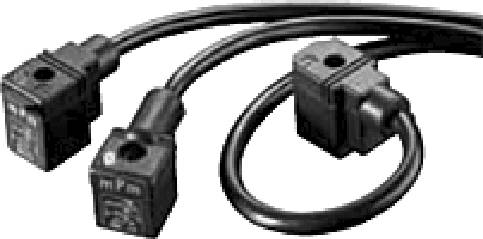

Three black electrical connectors with cables. Two connectors have short cables, the third has a longer, coiled cable.

Stroke drawing/circuit diagram

Packaging type

Piece

Product type

Square connector

Type

A standard

Connection

Plug

IP rating

IP65

Datasheet (PDF)

Dispatches on Thu 22 Oct

147 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Minimum order quantity: 10

Multiple: 1

Total (€ 12.27 / piece)

€ 122.70

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

DIN 43650

mPm DIN Valve Connector, Form A - 18mm, 2 Pole Plus Ground Position H6/H12 with C4 Circuit, to 1.0m (3.28') PVC Cable Pigtail, Yellow LED, Black Nitrile Gasket, 24V
This text is machine translated.

Our service for you

Technical specifications

Coupling type: With threadMaterial - cable sheath: PVCMaterial - Connector body: PolypropyleneMaximum current per connection: 5 A.Orientation: 90° - pigtailType: Assembled on one side

Packaging type: Piece

Pins: 2

Conductor material: Brass gold plated

Product type: Square connector

Type: A standard

Connection: Plug

: IP65

Number of pins: 2

Nominal voltage: 24 V

Display: LED

Total no. of pins: 2

Weight: 90.014 g

Manufacturer part #: 1210500554

Factory colour: Black

Content: 1 pc(s)

Cable Ø: 5.72 mm

Cable length: 1.00 m

Length: 1.0 m

RoHS-compliant: Yes

Circuit layout description: incl. yellow LED

Standard: DIN

Connector type: Plug

Max. temperature: +90 °C

Min. temperature: -40 °C

Type: Molex WOD Industrial Solution

Features: LED

Engineering Part No: E452N3N10011C4H

Engineering Series Name: DIN MOULDED

Engineering Series No: 121050

Documents & Downloads

Datasheet

Datasheet 2447167 DIN 43650 Black Molex WOD Industrial Solution Pins:2 1210500554 Molex Content: 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2447167 DIN 43650 Black Molex WOD Industrial Solution Pins:2 1210500554 Molex Content: 1 pc(s)

Circuit diagramm

Circuit diagramm 2447167 DIN 43650 Black Molex WOD Industrial Solution Pins:2 1210500554 Molex Content: 1 pc(s)

Description

mPm DIN Valve Connector, Form A - 18mm, 2 Pole Plus Ground Position H6/H12 with C4 Circuit, to 1.0m (3.28') PVC Cable Pigtail, Yellow LED, Black Nitrile Gasket, 24V

Description

mPm DIN Valve Connector, Form A - 18mm, 2 Pole Plus Ground Position H6/H12 with C4 Circuit, to 1.0m (3.28') PVC Cable Pigtail, Yellow LED, Black Nitrile Gasket, 24V
