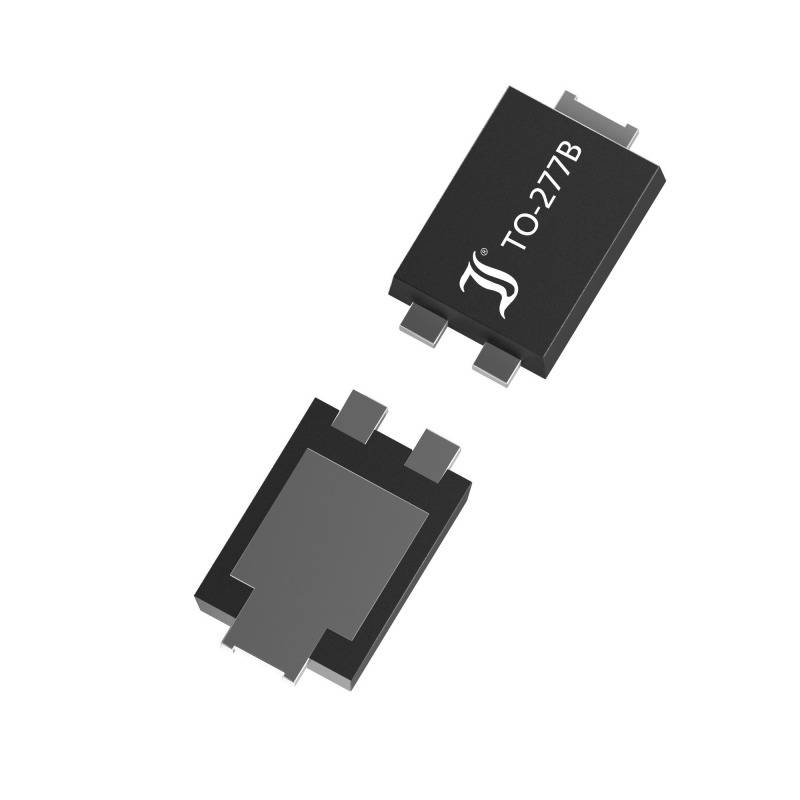

Diotec Schottky diode PPS1560 TO-277B 60 V Schottky
EAN:
Part number:
Item no:
Product type
Schottky diode
Enclosure
TO-277B
Reverse voltage U(R)
60 V
Forward current I(F)
15 A
Configuration (diode)
Schottky
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 0.47133
10
8% = € 0.04
€ 0.43339
25
11% = € 0.05
€ 0.41821
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 0.47133 / piece)
€ 0.47
plus VAT.
Highlights & Details
SCHOTTKY, TO-277B, 60V, 15A
Our service for you
Technical specifications
- Type SMDCasing TO-277B.Periodic Peak Reverse Voltage - VRRM 60 VContinuous current - IFAV 15.00 AJunction temperature - Tjmax 150 °CForward voltage - VF 0.69 VIF 15.00 ASurge current - IFSM 250.00 AReverse current - IR 500,000 µAVR 60 VLock layer capacity - CJ: PFVR V
- Type
PPS1560
- Product type
Schottky diode
- Enclosure
TO-277B
- Manufacturer
Diotec
- Reverse voltage U(R)
60 V
- Forward current I(F)
15 A
- Reverse leakage current I(r)
500 µA
- Configuration (diode)
Schottky
- Peak forward surge current I(FSM)
250 A
- Forward voltage U(F)
0.69 V
- Forward voltage reference
15.00 A
- Reverse leakage current I(r) reference
60 V
- Operating temperature (max.)
150 °C
- Mounting type
Surface-mount
- RoHS-compliant
Yes
- Content
1 pc(s)
