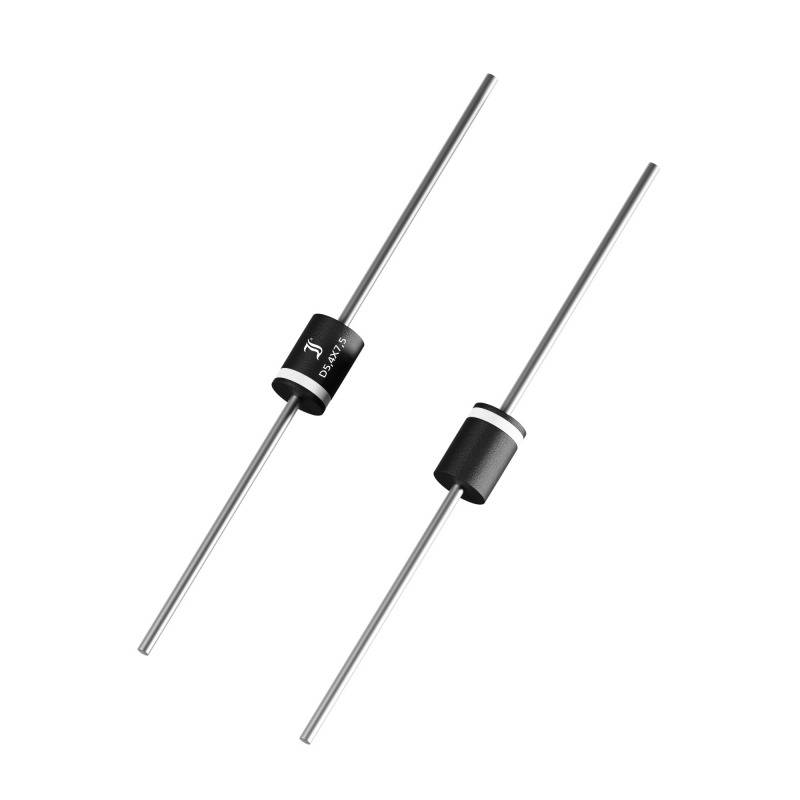

Image similar
Image similar
Diotec Schottky diode SB1540-3G D5.4x7.5 40 V Schottky
EAN:
Part number:
Item no:
Product type
Schottky diode
Enclosure
D5.4x7.5
Reverse voltage U(R)
40 V
Forward current I(F)
15 A
Configuration (diode)
Schottky
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
10
-
€ 0.59098
30
8% = € 0.05
€ 0.54341
50
11% = € 0.07
€ 0.52438
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 10
Total (€ 0.59098 / piece)
€ 5.91
plus VAT.
Technical specifications
- Type
SB1540-3G
- Product type
Schottky diode
- Enclosure
D5.4x7.5
- Manufacturer
Diotec
- Manuf. code
DIO
- Reverse voltage U(R)
40 V
- Forward current I(F)
15 A
- Reverse leakage current I(r)
200 µA
- Configuration (diode)
Schottky
- Peak forward surge current I(FSM)
300 A
- Forward voltage U(F)
0.55 V
- Forward voltage reference
15.00 A
- Reverse leakage current I(r) reference
40 V
- Diode capacitance C(D)
720 pF
- Operating temperature (max.)
150 °C
- Mounting type
Through-hole mounting
- RoHS-compliant
Yes
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2810523 Diotec Schottky diode SB1540-3G D5.4x7.5 40 V Schottky
User & Safety Instructions
User & Safety Instructions 2810523 Diotec Schottky diode SB1540-3G D5.4x7.5 40 V Schottky
