Buy Diotec Schottky diode SDB14HS-AQ SOD-323P 40 V Schottky

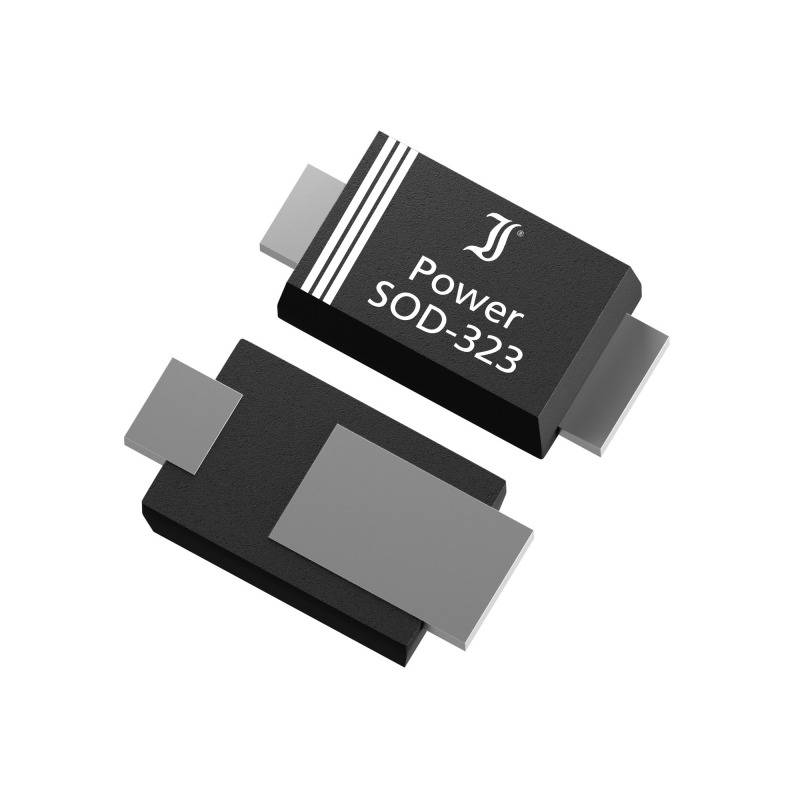

Two black electronic components labelled 'Power SOD-323', each with two metal terminals.

Image similar

Product type

Schottky diode

Enclosure

SOD-323P

Reverse voltage U(R)

40 V

Forward current I(F)

0.70 A

Configuration (diode)

Schottky

Datasheet (PDF)

Fast track dispatch on Mon, 21 Sep

2801 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 100

Total (€ 0.06272 / piece)

€ 6.27

plus VAT.

Report legal concerns

Highlights & Details

Our service for you

Technical specifications

Type: SDB14HS-AQ

Product type: Schottky diode

Enclosure: SOD-323P

Manufacturer: Diotec

Manuf. code: DIO

Reverse voltage U(R): 40 V

Forward current I(F): 0.70 A

Reverse leakage current I(r): 200 µA

Configuration (diode): Schottky

Peak forward surge current I(FSM): 4.40 A

Forward voltage U(F): 0.52 V

Forward voltage reference: 0.70 A

Reverse leakage current I(r) reference: 40 V

Diode capacitance C(D): 30 pF

Operating temperature (max.): 150 °C

Mounting type: Surface-mount

RoHS-compliant: Yes

Content: 1 pc(s)
