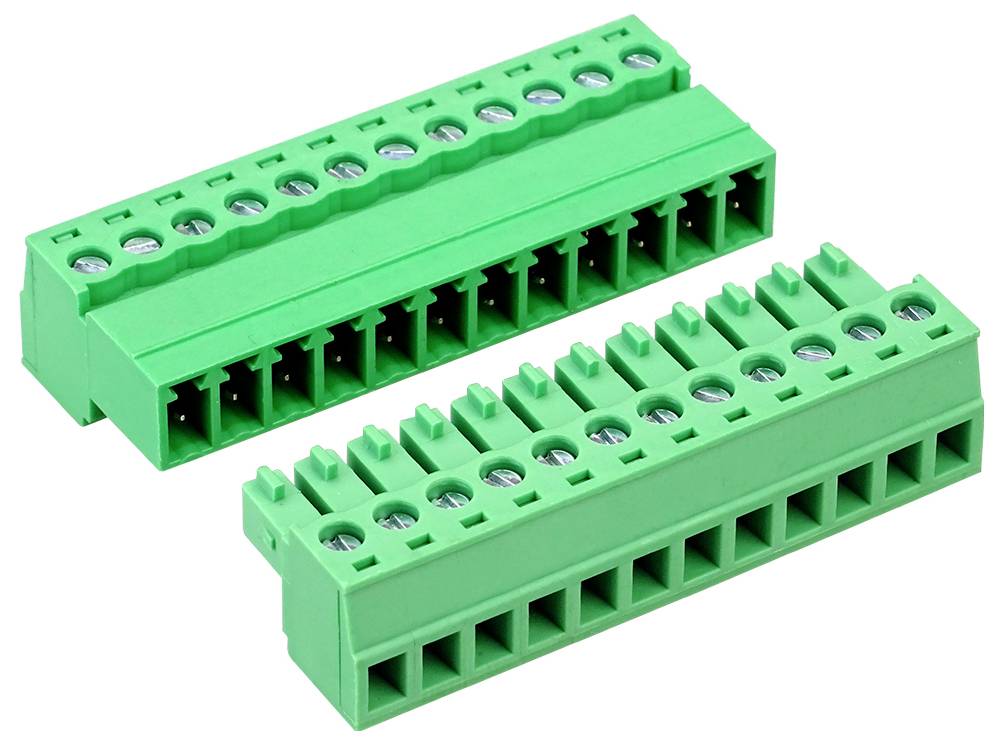

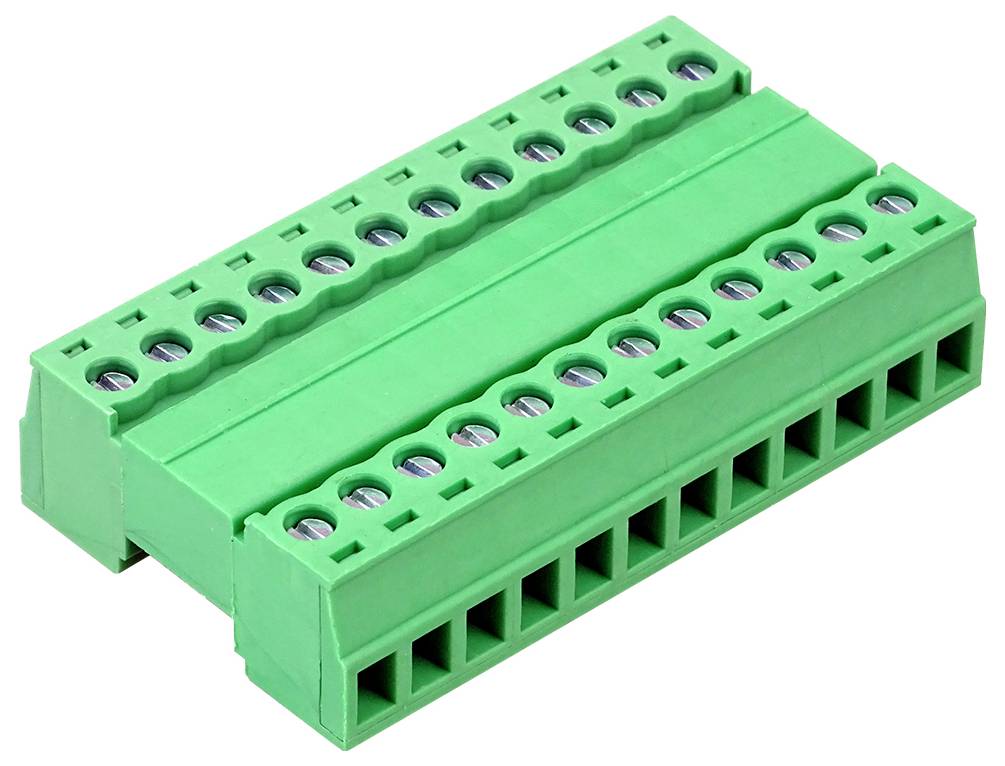

Donau Elektronik HNS381-12 Push-fit connector PA66, Brass, Steel 8 A 300 V
EAN:
Part number:
Item no:
Product type
Push-fit connector
Number of pins
12
Nominal current - rounded value
8 A
Nominal voltage
300 V
Type
Polarity-protected plug connector
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.93
5
6% = € 0.19
€ 2.74
10
9% = € 0.27
€ 2.66
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.93 / piece)
€ 2.93
plus VAT.
Highlights & Details
Plug connector 12-pin 0.08 - 1.5 mm²
- Number of pins: 12
- Polarity reversal protected plug connector with screw connection
- Screw M2, galvanized steel
- Contact material: Tin-plated brass
- Housing material PA66
- Temperature range -40°C to +105°C.
- Short-term temperature resistance: +250°C for 5 seconds
- Nominal voltage: 300 V
- Nominal current 8 A
Technical specifications
- Suitable cross-section: 0.08 mm² - 1.5 mm²
- Nominal voltage
300 V
- Type
Polarity-protected plug connector
- Product type
Push-fit connector
- Operating voltage
max. 300 V
- Number of pins
12
- Nominal current
8 A
- Nominal current - rounded value
8 A
- Material
PA66
Brass
Steel
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3789088 Donau Elektronik HNS381-12 Push-fit connector PA66, Brass, Steel 8 A 300 V
Description
The screw-terminal connectors are protected against polarity reversal and ensure reliable connections for demanding applications. The robust housing made of PA66 provides for high temperature and flame resistance, while screws made of zinc-plated steel and tin-plated brass contacts ensure long-term stable conductivity. With a temperature range from -40°C to +105°C and short-term to +250°C, the connectors Ideal are for industrial applications. They support operating currents up to 8A and a voltage of 300V as well as a cable cross-section from 0.08 mm² to 1.5 mm² - perfect for a wide range of wiring requirements.
