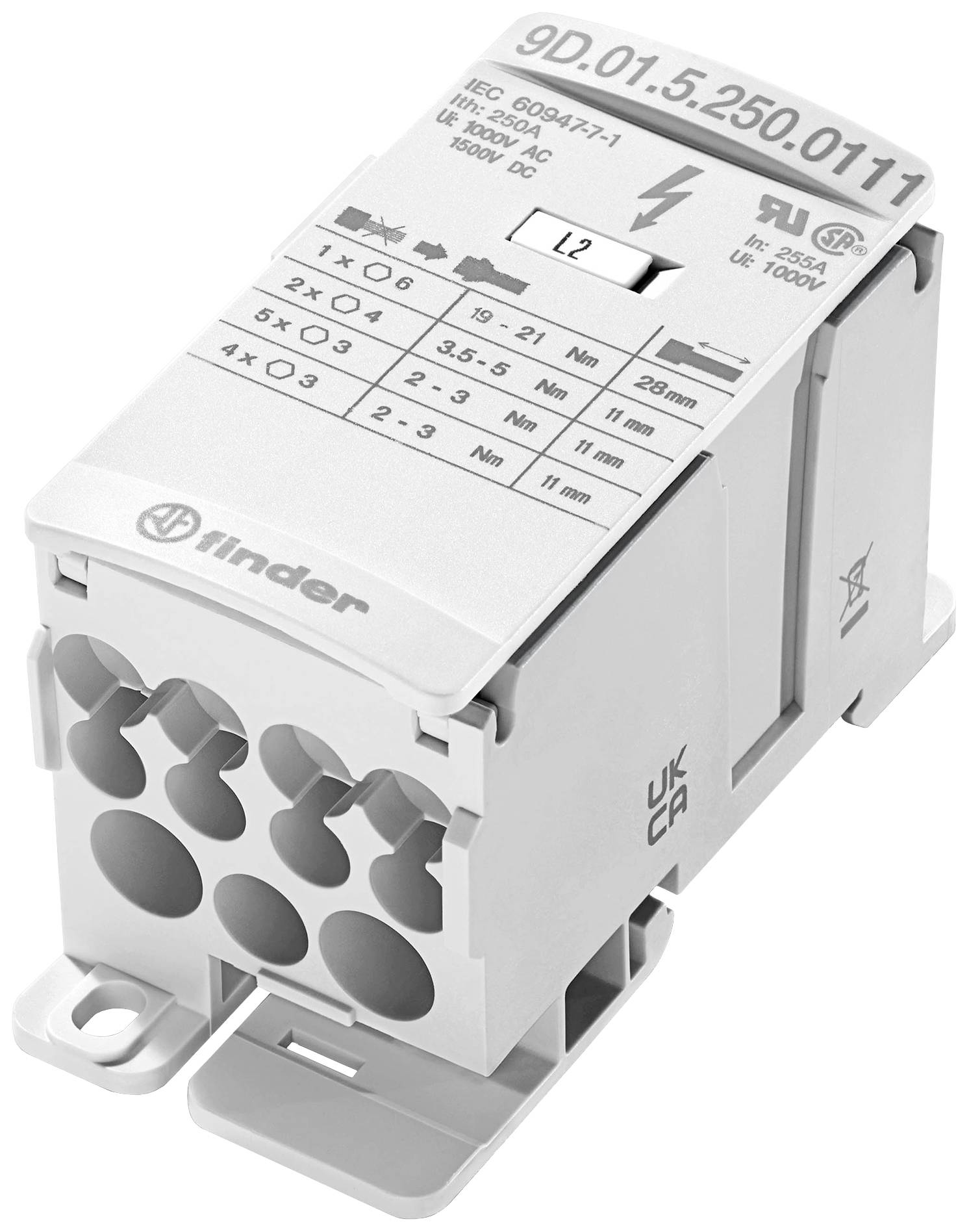

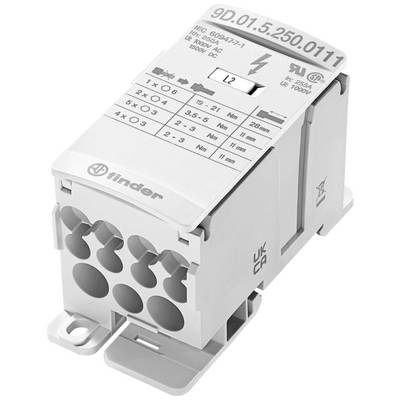

Finder 9D.01.5.250.0111 Splitter White 12-pin 35 mm² 250 A 1000 V AC, 1500 V DC Conductor type = L, N, PE
EAN:
Part number:
Item no:
Product type
Splitter
Number of pins
12
Nominal current - rounded value
250 A
Nominal voltage
1000 V AC
1500 V DC
Factory colour
White
Number
Total (€ 33.61 / piece)
€ 33.61
plus VAT.
Technical specifications
- Nominal voltage
1000 V AC
1500 V DC
- Product type
Splitter
- Factory colour
White
- Cross section
35 mm²
- Number of pins
12
- Dim
(W x H x D) 47.5 x 96 x 60 mm
- Nominal current
250 A
- Nominal current - rounded value
250 A
- Conductor type
L
N
PE
- Width
47.5 mm
- Height
96 mm
- Depth
60 mm
- Weight
0.0100 kg
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2861786 Finder 9D.01.5.250.0111 Splitter White 12-pin 35 mm² 250 A 1000 V AC, 1500 V DC Conductor type = L, N, PE
Description
250 A busbar connection block, connection and distribution of high current cables in switch cabinets and distributors, nominal current 250 A, inputs: 1, outputs: 11, for 35 mm mounting rail
