Name: Draytek Vigor 2962 (DualWAN) Gateway
Brand: Draytek
SKU: 3789887

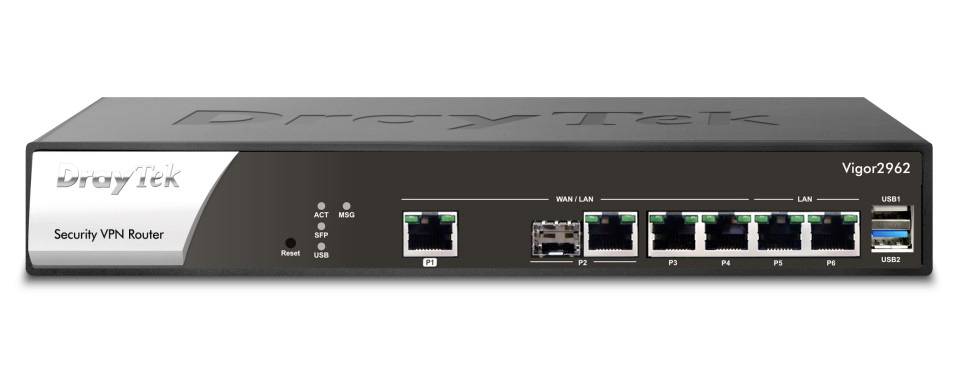

Front view of a DrayTek Security VPN Router, model Vigor2962, showing status lights, WAN/LAN ports, and USB ports.

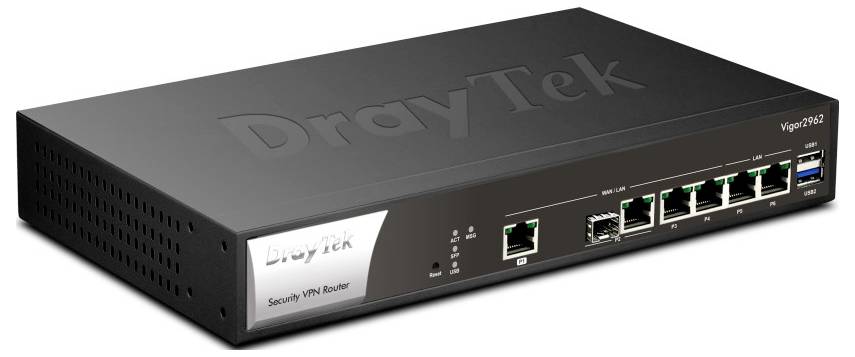

Black DrayTek Security VPN Router with multiple Ethernet ports and front status lights shown in perspective on a white background

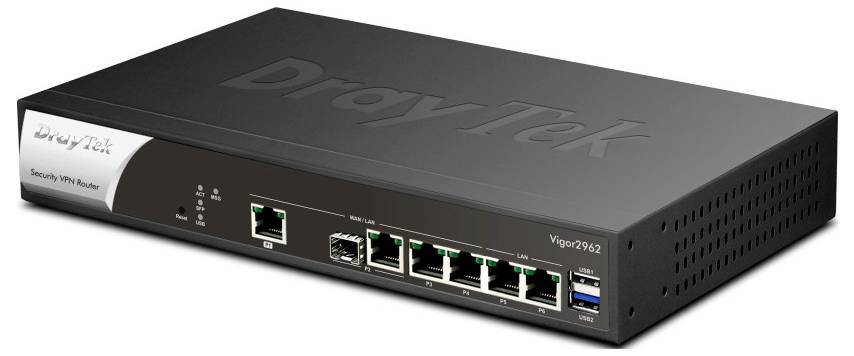

Black DrayTek Vigor2962 security router with front status lights, one WAN port, multiple Ethernet ports, and two USB ports shown in perspective.

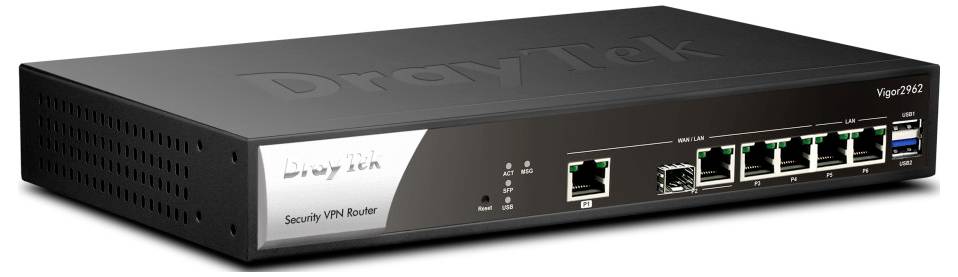

DrayTek Vigor2962 security VPN router shown in a product photo, with multiple Ethernet ports on the front panel.

1/5

Draytek

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

DrayTek Vigor 2962 cable router 2.5 gigabit Ethernet black, white

2.4 Gbit/s NAT throughput
1x 2.5 Gigabit port
200 VPN connections with IPSec throughput of 900 MBit/s.
50 SSL VPN connections with 300 MBit/s throughput
Dual WAN with high operating time through redundancy
Central management of Vigor switches and Vigor access points

Technical specifications

USB version 2.0/3.2 1st Gen 1 (3.1 Gen 1)

Product type: Gateway

10/100/1000 Mbps ports: 4 x

Factory colour: Black
White

Depth: 170 mm

Height: 45 mm

Width: 273 mm

No. of USB ports: 2 x

Power consumption (ON): 15 W

Power supply (details): 220 - 240 V

Safety: HTTPS
SSH

Weight: 1.7 kg

UKCA: yes

Operating temperature (T-T): 0 - 45 °C

Firewall: yes

URL filtering: yes

VPN tunnels quantity: 200

Ethernet WAN: yes

MAC address filtering: yes

Quality of Service (QoS) support: yes

Multicast support: yes

Traffic control: yes

Throughput: 2.2 Gbit/s

Policy-based routing: yes

Web-based management: yes

DHCP client: yes

DHCP server: yes

Reset button: yes

Quick start guide: yes

Firmware upgradeable: yes

Rack mounting: yes

DMZ support: yes

Port forwarding: yes

Operating relative humidity (H-H): 10 - 90 %

VLAN support: yes

DoS attack prevention: yes

Network address translation (NAT): yes

Storage temperature (T-T): -25 - 70 °C

Forwarding rate: 900 Mpps

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3789887 Draytek Vigor 2962 (DualWAN) Gateway

Description

The Vigor2962 is a high-performance Dual WAN router with four configurable Gigabit Ethernet (GbE) WAN/LAN ports, including one 2.5 GbE port, one SFP/GbE combo port, and two traditional GbE ports. The Vigor2962 improves load balancing through dual WAN and allows configuration options for possible failover scenarios such as Internet connection failure. This increases the Internet stability of your company, among other things.

It also provides hardware redundancy with high availability in order to avoid single-Point-of-failure, and the Vigor2962 supports hot standby as well as active standby mode. This means that a failover can be detected and automatically corrected within a very short time.

In addition, the router is also in a position to provide up to 200 simultaneous VPN tunnels for your branches, home office workers or similar and is thus immediately ready to use even in the most comprehensive network environments.
The unit comes in a metal housing and is easily mounted in a 19 inch patch cabinet.

This text is machine translated.

Features

Multiple WAN connections
The Vigor2962 has multiple connectivity options and offers 2 traditional WAN ports as well as up to 18 virtual WAN ports. It goes without saying that the usual failover and load balancing scenarios can be configured individually and conveniently.
Secure business network
However, a Stateful Packet Inspection (SPI) firewall is also implemented, in order to set flexible filter rules, among other things, so that packets can be accepted or rejected with respect to source IP, target IP, protocol, port number and even with respect to the contents of the package and can also prevent content filtering by URL keyword or application, that any other urgently needed network resources, such as unwanted network activity, are wasted.
Switchable ports
The router provides a total of four configurable WAN/LAN ports. Thus these can be adapted to the respective needs and re-configured accordingly, in order, for instance, to use the extremely fast 2.5 GbE port as uplink or to convert the SFP combo port in a conventional LAN-port if needed.
SSL VPN
Regardless of the respective network environment, the Vigor2962 is able to provide up to 50 simultaneous SSL VPN connections, which can also be used with the Draytek Smart VPN client.
Secure connection to home office or office
For example, high VPN performance is required in home offices so that there is no compromise on the quality of work, so that the employees can continue to follow their usual work processes in the same way as if they were on site. The use of a Vigor 2962 makes the matter a child's play, because the VPN performance is immense and the device can operate up to 200 VPN tunnels at the same time.
Quality of Service QoS and VLAN setup
QoS capabilities are a special feature, which allows you to control traffic according to priority, so that functions such as VoIP telephony, on request, always have priority. In addition, up to 20 VLAN can be set up within the configuration, as a result of which the operational radius and the respective application possibility are additionally extended.
Manage routers with VigorACS
Vigor2962 provides TR-069 support for management with VigorACS 2. In addition to the usual management options, a variety of configuration options are also provided, such as port configuration, QoS, VLAN, etc.
Central switch management
The router has a switch management, which makes it possible to manage up to 30 Vigor Switches centrally from the router interface. This gives you a quick overview of the LANs or VLANs that are operated on the switch. This feature affects all VigorSwitches.
Centralized AP management
The central AP management allows up to 50 DrayTek access points to be managed directly from the router, e.g. to carry out a firmware upgrade, create configuration backups, initiate a restart, send configurations to access points etc.
DrayOS
The Vigor2962 uses the proven DrayOS, which offers you the usual facilities, in order to configure and operate your respective products intuitively.
