Name: Eaton S711-34075AC EP-401521 Soft starter Motor power at 400 V 37 kW Motor power at 230 V 22 kW 200 V, 575 V Nominal cur
Brand: Eaton
SKU: 3553279
Availability: BackOrder

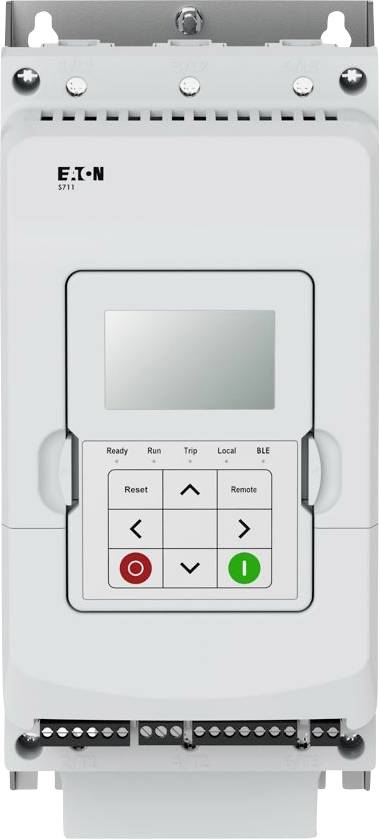

Electrical device with display and control buttons, labeled 'Reset,' 'Remote,' and 'Local.' Used for managing power systems.

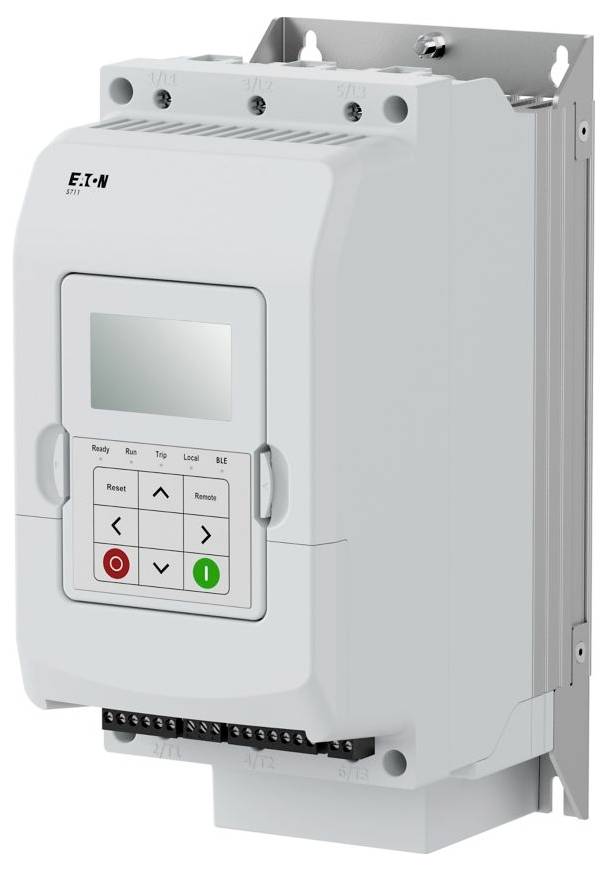

Electrical device with display and control buttons, labeled 'Eaton', mounted on a metal bracket, likely used for industrial automation.

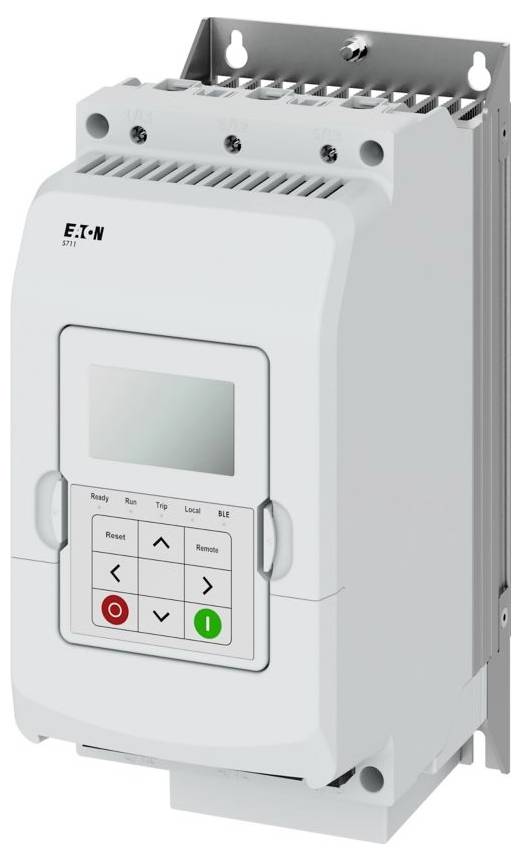

A digital control panel for an electrical device featuring a screen, control buttons, and a sturdy casing mounted on a bracket.

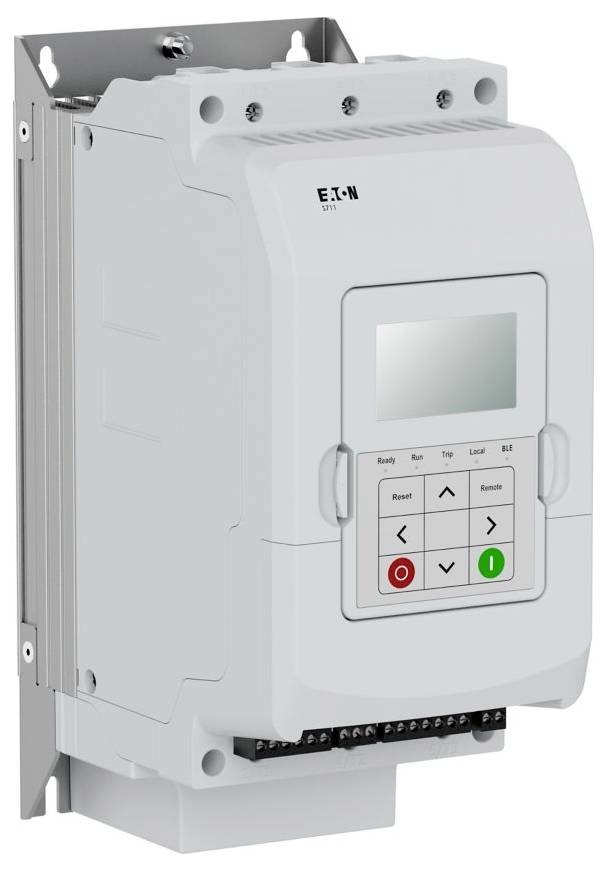

'A motor protection relay with a digital display and button controls, used for monitoring and controlling electrical systems.'

1/4

Datasheet (PDF)

Dispatches on Thu 29 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 1,619.00 / piece)

€ 1,619.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Soft starter, 75 A, 200 - 600 V AC, US = 110-240 V AC, with control device, size 2, IP20

3-phase controlled
Adjustable trigger class (5 to 30)
Integrated bypass for all sizes Delta switching and star triangle
3 x relay outputs (2 - programmable)
4 x digital inputs (2 - programmable)
1 x PTC input
Keyboard with graphical surface (removable)
Integrated - Bluetooth LE (low energy) & Modbus RTU
Optional cards (Modbus TCP, PROFINET, Ethernet IP)

Technical specifications

Motor voltage: 200 V

Product type: Soft starter

Motor power at 230 V: 22 kW

Motor power at 400 V: 37 kW

Operating voltage: Voltage type: Alternating current

Nominal voltage: 200 V
575 V

Operating phases: 3

Manufacturer part #: EP-401521

Nominal current: 75 A

Nominal current - rounded value: 75 A

Type: S711-34075AC

Motor power at 230V / 400V: 22 / 37 kW

Dim: (L x W x H) 281 x 128 x 190 mm

Width: 128 mm

Height: 190 mm

Length: 281 mm

Max. temperature: 60 °C

Min. temperature: -25 °C

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Motor power at 400 V

Operating voltage

Motor power at 230 V

Motor power at 230V / 400V

Nominal voltage

Eaton S711-34075AC EP-401521 Soft starter Motor power at 400 V 37 kW Motor power at 230 V 22 kW 200 V, 575 V Nominal current 75 A

Item no:3553279

Dispatches on Thu 29 Oct

Conrad Electronic

This article

75 A

37 kW

Voltage type: Alternating current

22 kW

22 / 37 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,619.00^*

Eaton S711-34012AC EP-401515 Soft starter Motor power at 400 V 5.5 kW Motor power at 230 V 3 kW 200 V, 575 V Nominal current 12 A

Item no:3553273

Dispatches on Thu 29 Oct

Conrad Electronic

12 A

5.5 kW

Voltage type: Alternating current

3 kW

3.5 / 5.5 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,089.00^*

Eaton S711-34012DC EP-401532 Soft starter Motor power at 400 V 5.5 kW Motor power at 230 V 3 kW 200 V, 575 V, 24 V Nominal current 12 A

Item no:3553290

Dispatches on Thu 29 Oct

Conrad Electronic

12 A

5.5 kW

Voltage type DC

3 kW

3 / 5.5 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,089.00^*

Eaton S711-34017AC EP-401516 Soft starter Motor power at 400 V 7.5 kW Motor power at 230 V 4 kW 200 V, 575 V Nominal current 17 A

Item no:3553274

Dispatches on Thu 29 Oct

Conrad Electronic

17 A

7.5 kW

Voltage type: Alternating current

4 kW

4 / 7.5 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,145.00^*

Eaton S711-34017DC EP-401533 Soft starter Motor power at 400 V 7.5 kW Motor power at 230 V 4 kW 200 V, 575 V, 24 V Nominal current 17 A

Item no:3553291

Dispatches on Thu 29 Oct

Conrad Electronic

17 A

7.5 kW

Voltage type DC

4 kW

4 / 7.5 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,145.00^*

Eaton S711-34025AC EP-401517 Soft starter Motor power at 400 V 11 kW Motor power at 230 V 7.5 kW 200 V, 575 V Nominal current 25 A

Item no:3553275

Dispatches on Thu 29 Oct

Conrad Electronic

25 A

11 kW

Voltage type: Alternating current

7.5 kW

7.5 kW / 11 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,225.00^*

Eaton S711-34025DC EP-401534 Soft starter Motor power at 400 V 11 kW Motor power at 230 V 7.5 kW 200 V, 575 V, 24 V Nominal current 25 A

Item no:3553292

Dispatches on Thu 29 Oct

Conrad Electronic

25 A

11 kW

Voltage type DC

7.5 kW

7.5 / 11 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,225.00^*

Eaton S711-34032AC EP-401518 Soft starter Motor power at 400 V 15 kW Motor power at 230 V 7.5 kW 200 V, 575 V Nominal current 32 A

Item no:3553276

Dispatches on Thu 29 Oct

Conrad Electronic

32 A

15 kW

Voltage type: Alternating current

7.5 kW

7.5 / 15 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,295.00^*

Eaton S711-34032DC EP-401535 Soft starter Motor power at 400 V 11 kW Motor power at 230 V 7.5 kW 200 V, 575 V, 24 V Nominal current 35 A

Item no:3553293

Dispatches on Thu 29 Oct

Conrad Electronic

35 A

11 kW

Voltage type DC

7.5 kW

7.5 / 15 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,295.00^*

Eaton S711-34047AC EP-401519 Soft starter Motor power at 400 V 22 kW Motor power at 230 V 15 kW 200 V, 575 V Nominal current 47 A

Item no:3553277

Dispatches on Thu 29 Oct

Conrad Electronic

47 A

22 kW

Voltage type: Alternating current

15 kW

15 / 22 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,395.00^*

Documents & Downloads

Datasheet

Datasheet 3553279 Eaton S711-34075AC EP-401521 Soft starter Motor power at 400 V 37 kW Motor power at 230 V 22 kW 200 V, 575 V Nominal cur

User & Safety Instructions

User & Safety Instructions 3553279 Eaton S711-34075AC EP-401521 Soft starter Motor power at 400 V 37 kW Motor power at 230 V 22 kW 200 V, 575 V Nominal cur

Description

Simple start-up (full-text parameters in 8 languages). Copy and paste the configuration with the Smartphone APP (S711 Connect).
10 predefined applications "Quick Start-up Menu". HMI panel installation with IP65 degree of protection and without additional accessories. Removable AUX connections. Only 2 versions for AC or DC control. Flexible fieldbus communication. Onboard event logging. Cybersecurity on board.
