Buy Peter Electronic SAS 3 20700.40003 Soft starter Motor power at 400 V 3.0 kW Motor power at 230 V 1.5 kW 400 V AC Nominal

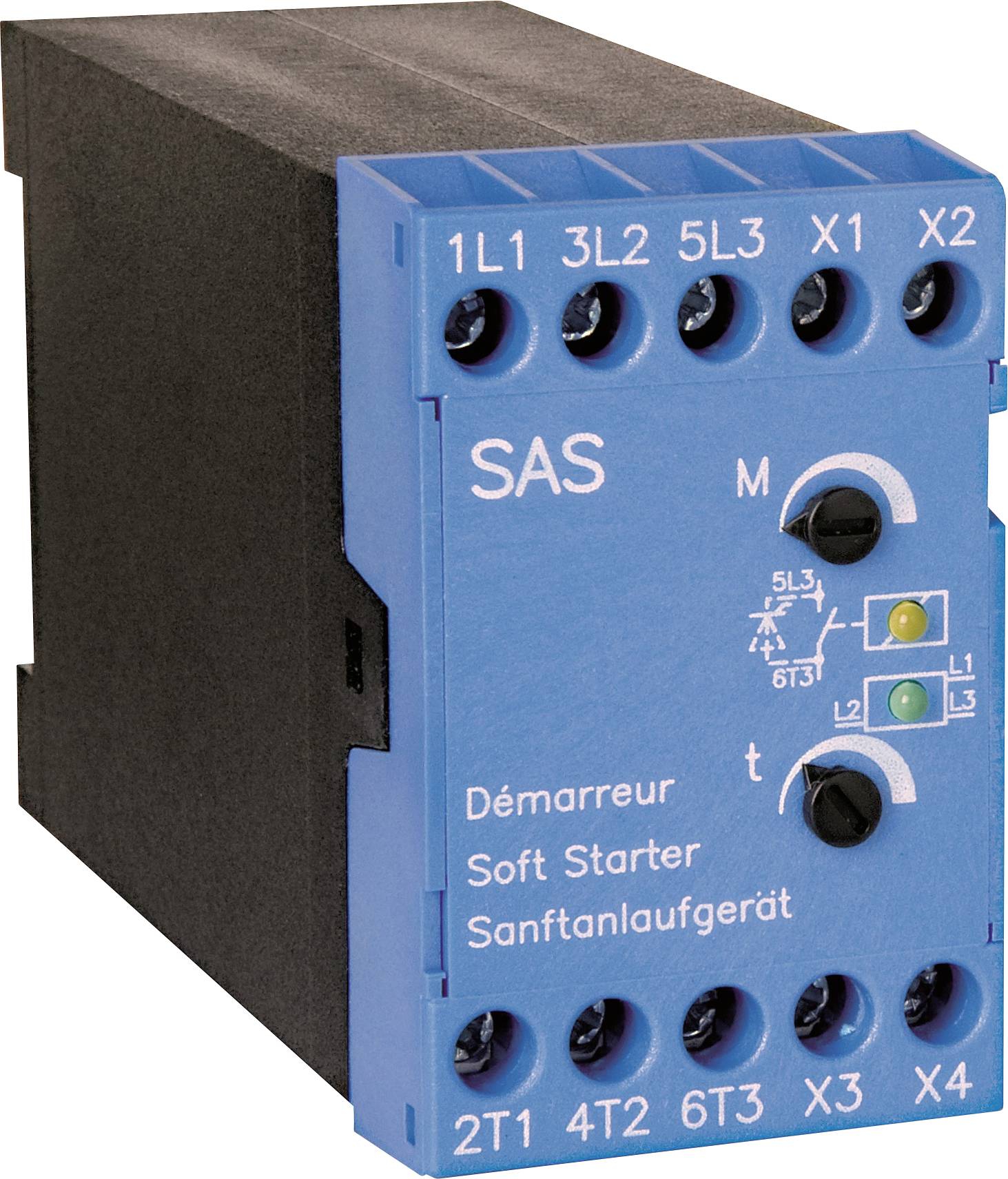

Blue SAS soft starter module with labeled terminals and adjustment knobs on a black housing.

Two blue electrical modules with the inscription 'SAS', developed as soft-start devices for motors, each with multiple connection terminals.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 130.24 / piece)

€ 155.46

-16 %

€ 130.24

plus VAT.

Only 8 Piece(s) available

Report legal concerns

Technical specifications

Start-up time: 0.5 - 5 s

Product type: Soft starter

Motor power at 230 V: 1.5 kW

Motor power at 400 V: 3.0 kW

Operating voltage: 230/400 V AC

Nominal voltage: 400 V AC

Operating phases: 1

Manufacturer part #: 20700.40003

Nominal current: 6.5 A

Nominal current - rounded value: 6.5 A

Type: SAS 3

Dim: (L x W x H) 122 x 45 x 73 mm

Width: 45 mm

Height: 73 mm

Length: 122 mm

Documents & Downloads

Datasheet

Datasheet 198899 Peter Electronic SAS 3 20700.40003 Soft starter Motor power at 400 V 3.0 kW Motor power at 230 V 1.5 kW 400 V AC Nominal

User & Safety Instructions

User & Safety Instructions 198899 Peter Electronic SAS 3 20700.40003 Soft starter Motor power at 400 V 3.0 kW Motor power at 230 V 1.5 kW 400 V AC Nominal

Description

The soft start equipment of the SAS series are characterized by the following features: Two-phase controlled soft starter devices · All equipment for pole-changing motors · Switched from 400 V to 230 V networks · switching equipment terminal arrangement · For snapping onto 35 mm standard rail · Integrated bypass relay · No network neutral conductor (N) required · Protection class IP 20 Applications: Packaging machines, rolling doors, belt drives, conveyors, door operators of passenger and freight elevators, Trafosoftstart.
