Name: Eaton S711-34210AC EP-401526 Soft starter Motor power at 400 V 110 kW Motor power at 230 V 60 kW 200 V, 575 V Nominal cu
Brand: Eaton
SKU: 3553284
Availability: BackOrder

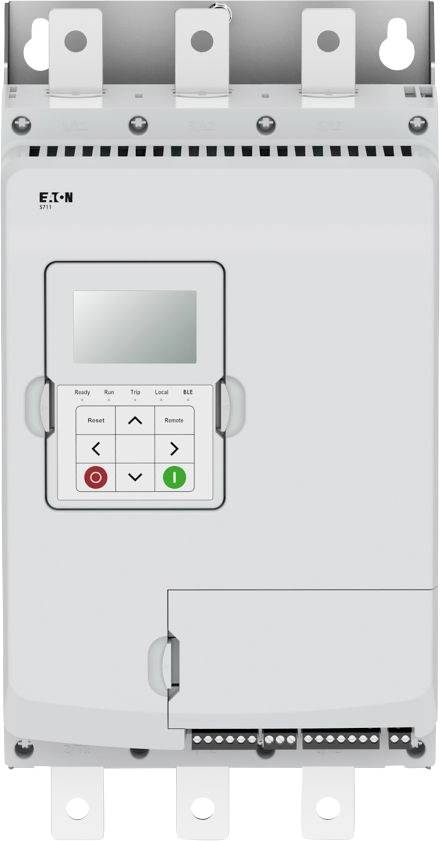

Industrial electrical device with display and control buttons, showing three upper connectors and one lower connector, likely used for power management.

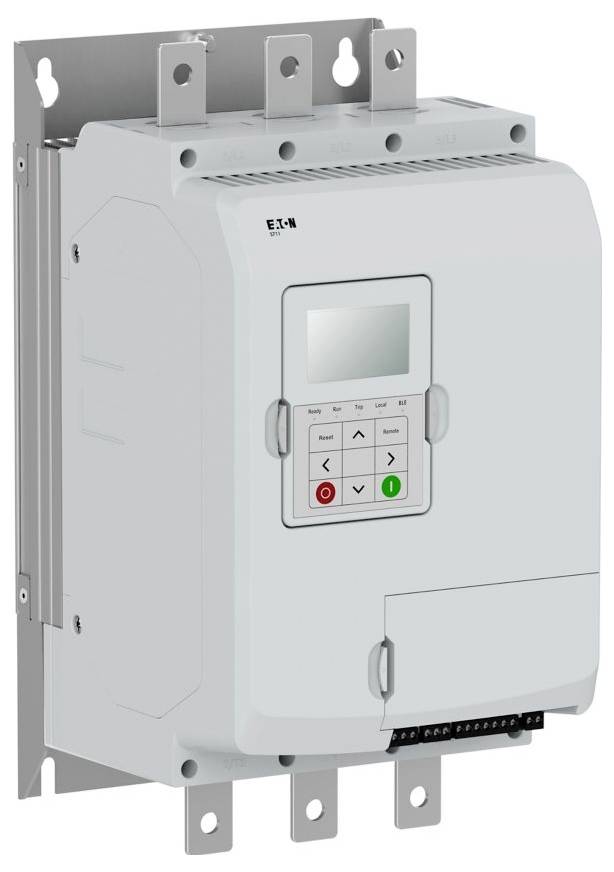

'The image shows an industrial motor controller unit with a display screen and button panel mounted on a metal frame.'

1/2

Datasheet (PDF)

Available soon

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 3,189.00 / piece)

€ 3,189.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Soft starter, 210 A, 200 - 600 V AC, US = 110-240 V AC, with control device, size 3, IP00

3-phase controlled
Adjustable trigger class (5 to 30)
Integrated bypass for all sizes Delta switching and star triangle
3 x relay outputs (2 - programmable)
4 x digital inputs (2 - programmable)
1 x PTC input
Keyboard with graphical surface (removable)
Integrated - Bluetooth LE (low energy) & Modbus RTU
Optional cards (Modbus TCP, PROFINET, Ethernet IP)

Technical specifications

Product type: Soft starter

Motor power at 230 V: 60 kW

Motor power at 400 V: 110 kW

Operating voltage: Voltage type: Alternating current

Nominal voltage: 200 V
575 V

Operating phases: 3

Manufacturer part #: EP-401526

Nominal current: 210 A

Nominal current - rounded value: 210 A

Type: S711-34210AC

Motor power at 230V / 400V: 60 / 110 kW

Dim: (L x W x H) 385 x 202 x 218 mm

Width: 202 mm

Height: 218 mm

Length: 385 mm

Max. temperature: 60 °C

Min. temperature: -25 °C

UKCA: not relevant

Variants(All information include VAT, plus shipping costs)

Nominal current - rounded value

Motor power at 400 V

Operating voltage

Motor power at 230 V

Motor power at 230V / 400V

Nominal voltage

Eaton S711-34012AC EP-401515 Soft starter Motor power at 400 V 5.5 kW Motor power at 230 V 3 kW 200 V, 575 V Nominal current 12 A

Item no:3553273

Dispatches on Thu 29 Oct

Conrad Electronic

12 A

5.5 kW

Voltage type: Alternating current

3 kW

3.5 / 5.5 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,089.00^*

Eaton S711-34012DC EP-401532 Soft starter Motor power at 400 V 5.5 kW Motor power at 230 V 3 kW 200 V, 575 V, 24 V Nominal current 12 A

Item no:3553290

Dispatches on Thu 29 Oct

Conrad Electronic

12 A

5.5 kW

Voltage type DC

3 kW

3 / 5.5 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,089.00^*

Eaton S711-34017AC EP-401516 Soft starter Motor power at 400 V 7.5 kW Motor power at 230 V 4 kW 200 V, 575 V Nominal current 17 A

Item no:3553274

Dispatches on Thu 29 Oct

Conrad Electronic

17 A

7.5 kW

Voltage type: Alternating current

4 kW

4 / 7.5 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,145.00^*

Eaton S711-34017DC EP-401533 Soft starter Motor power at 400 V 7.5 kW Motor power at 230 V 4 kW 200 V, 575 V, 24 V Nominal current 17 A

Item no:3553291

Dispatches on Thu 29 Oct

Conrad Electronic

17 A

7.5 kW

Voltage type DC

4 kW

4 / 7.5 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,145.00^*

Eaton S711-34025AC EP-401517 Soft starter Motor power at 400 V 11 kW Motor power at 230 V 7.5 kW 200 V, 575 V Nominal current 25 A

Item no:3553275

Dispatches on Thu 29 Oct

Conrad Electronic

25 A

11 kW

Voltage type: Alternating current

7.5 kW

7.5 kW / 11 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,225.00^*

Eaton S711-34025DC EP-401534 Soft starter Motor power at 400 V 11 kW Motor power at 230 V 7.5 kW 200 V, 575 V, 24 V Nominal current 25 A

Item no:3553292

Dispatches on Thu 29 Oct

Conrad Electronic

25 A

11 kW

Voltage type DC

7.5 kW

7.5 / 11 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,225.00^*

Eaton S711-34032AC EP-401518 Soft starter Motor power at 400 V 15 kW Motor power at 230 V 7.5 kW 200 V, 575 V Nominal current 32 A

Item no:3553276

Dispatches on Thu 29 Oct

Conrad Electronic

32 A

15 kW

Voltage type: Alternating current

7.5 kW

7.5 / 15 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,295.00^*

Eaton S711-34032DC EP-401535 Soft starter Motor power at 400 V 11 kW Motor power at 230 V 7.5 kW 200 V, 575 V, 24 V Nominal current 35 A

Item no:3553293

Dispatches on Thu 29 Oct

Conrad Electronic

35 A

11 kW

Voltage type DC

7.5 kW

7.5 / 15 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,295.00^*

Eaton S711-34047AC EP-401519 Soft starter Motor power at 400 V 22 kW Motor power at 230 V 15 kW 200 V, 575 V Nominal current 47 A

Item no:3553277

Dispatches on Thu 29 Oct

Conrad Electronic

47 A

22 kW

Voltage type: Alternating current

15 kW

15 / 22 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,395.00^*

Eaton S711-34047DC EP-401536 Soft starter Motor power at 400 V 22 kW Motor power at 230 V 15 kW 200 V, 575 V, 24 V Nominal current 47 A

Item no:3553294

Dispatches on Thu 29 Oct

Conrad Electronic

47 A

22 kW

Voltage type DC

15 kW

15 / 22 kW

200 V

Piece(s)

Minimum order quantity: 1

Multiple: 1

€ 1,395.00^*

Documents & Downloads

Datasheet

Datasheet 3553284 Eaton S711-34210AC EP-401526 Soft starter Motor power at 400 V 110 kW Motor power at 230 V 60 kW 200 V, 575 V Nominal cu

User & Safety Instructions

User & Safety Instructions 3553284 Eaton S711-34210AC EP-401526 Soft starter Motor power at 400 V 110 kW Motor power at 230 V 60 kW 200 V, 575 V Nominal cu

Description

Simple start-up (full-text parameters in 8 languages). Copy and paste the configuration with the Smartphone APP (S711 Connect).
10 predefined applications "Quick Start-up Menu". HMI panel installation with IP65 degree of protection and without additional accessories. Removable AUX connections. Only 2 versions for AC or DC control. Flexible fieldbus communication. Onboard event logging. Cybersecurity on board.

This text is machine translated.
