Name: Eaton SDAINLM45(RDC24) Star-delta combo 22 kW Compatible with (relay brand): Eaton 1 pc(s)
Brand: Eaton
SKU: 2307166
Availability: BackOrder

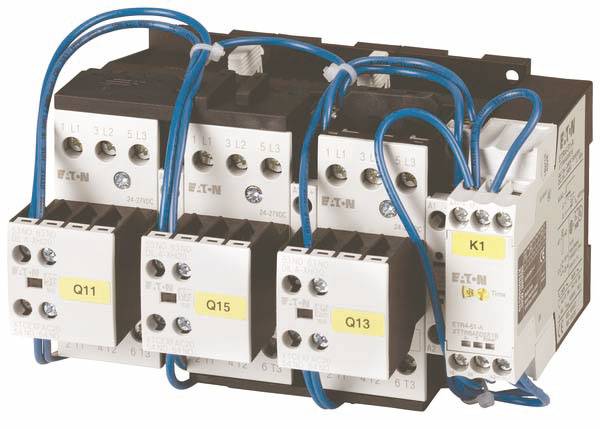

An electrical device with several wired components, including three switches labelled 'Q11', 'Q15' and 'Q13', connected to 'K1'.

Image similar

Product type

Star-delta combo

Power

22 kW

Connection

Screws

Type

SDAINLM45(RDC24)

Auxiliary contact type

3 makers

Datasheet (PDF)

Dispatches on Tue 27 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 985.00 / piece)

€ 985.00

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Current type: DC actuation
Voltage type for operation: DC
rated operating current IE at AC-3, 400 V: 45 A.

Product type: Star-delta combo

Type: SDAINLM45(RDC24)

Auxiliary contact type: 3 makers

Control voltage (min.): 24 V DC

Control voltage (max.): 24 V DC

Control voltage range: 24 - 24 V DC

Switching voltage (min.): 24 V AC

Switching voltage (max.): 690 V AC

Max. switching capacity: 30000 W

Permanent current (max.): 45 A

: 22 kW

Compatible with: Eaton

Compatible with series: Eaton DILM25 series

Connection: Screws

Response time: 20 s

: IP00

Width: 158 mm

Height: 95 mm

Depth: 138 mm

Dim: (W x H x D) 158 x 95 x 138 mm

Content: 1 pc(s)

RoHS-compliant: Yes

: 158 mm

: Star-delta contactor

: 95 mm

: 138 mm

: 22 kW

: 9

: 0

: 3

: 0

: 45 A

: 45 A

: 0

: FALSE

: 0-0 V

: 0-0 V

: 24-24 V

: AC

: IP00

: Screw connection

: Screw connection

: 24-690 V

: 24-690 V

: 0-0 V

: DC

: Other

: 0 kW

UKCA: not relevant
