encitech DB09-SS-K 2101-0181-11 D-SUB receptacles 180 ° Number of pins: 9 Solder bucket 1 pc(s) Tray

A metal plug with nine round pins arranged in three rows, typically used for serial interface connections.

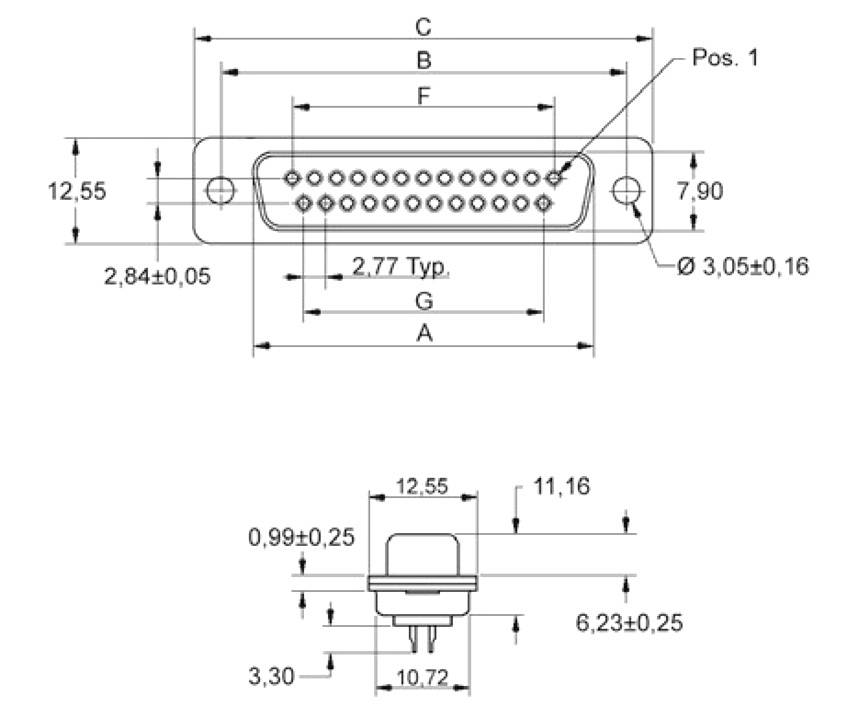

'Technical drawing of a connector with dimensions in millimetres. Shows positions and measurements of pins and connections.'
Side view of a technical component with multiple pins at the bottom and a flat top surface. It shows details of the construction.
1/3
Packaging type
Tray
Product type
D-SUB receptacles
Connector type
Power strip, straight
Number of pins
9
Connection
Solder bucket
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
121 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 1.99 / piece)
€ 1.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

D-Sub socket strip

  • D-SUB receptacles
  • No. of rows: 2
  • Number of pins: 9

Technical specifications

  • Threaded bolts UNC 4-40 rear
Packaging type

Tray

Product type

D-SUB receptacles

Connector type

Power strip, straight

Number of pins

9

Connection

Solder bucket

Connection angle

180°

No. of rows

2

Content

1 pc(s)

Mating cycles

100

Manufacturer part #

2101-0181-11

Contact type

Punched contacts

Contact material

Copper alloy

Contact surface

Gold plated

Test voltage

1000 V AC

Features

+ screws

Temperature range

-55 °C to 105 °C

Type

DB09-SS-K
