encitech DTZK15-PCLG-K 6560-6105-02 D-SUB housing Number of pins: 15 Diecast zinc 180 ° Metal 1 pc(s)

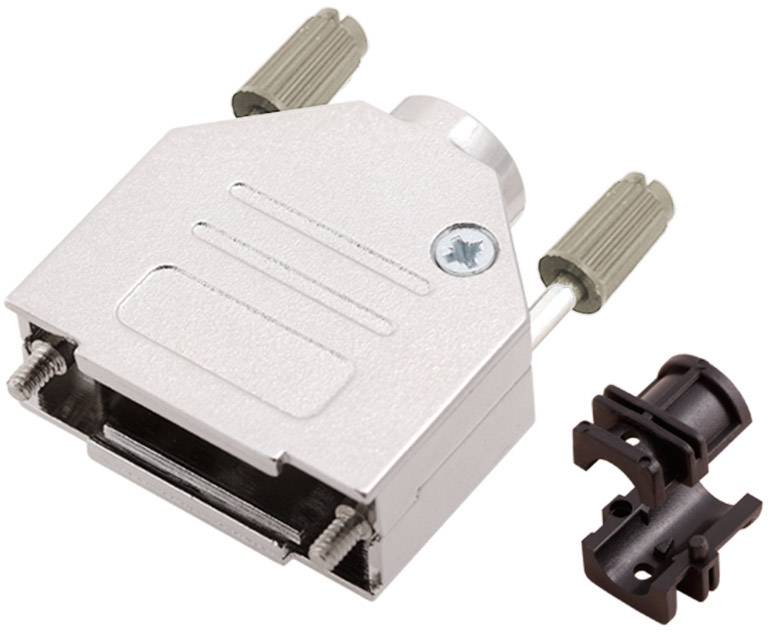

Metal plug housing with screws and plastic side holder, suitable for securing and protecting electronic connections.

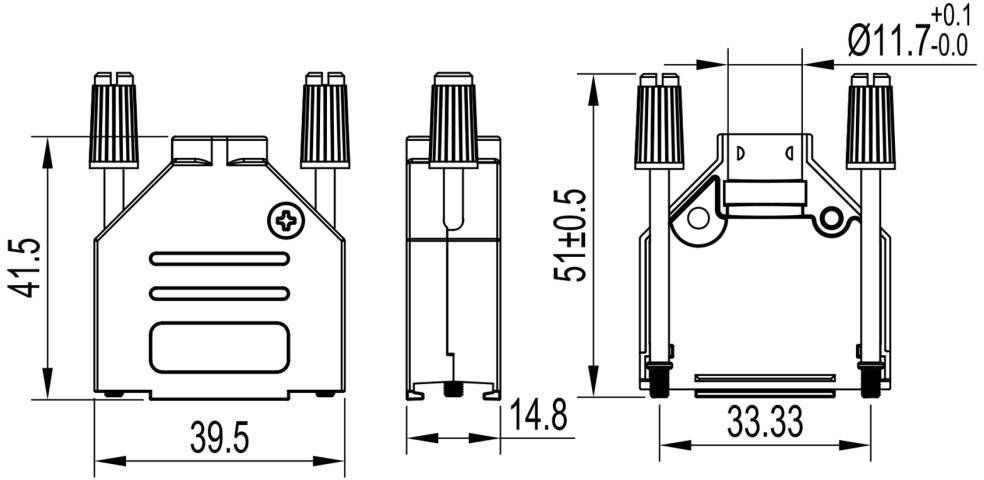

Technical drawing of a connector with dimensions: width 39.5 mm, height 41.5 mm, depth 14.8 mm, contact spacing 33.33 mm.

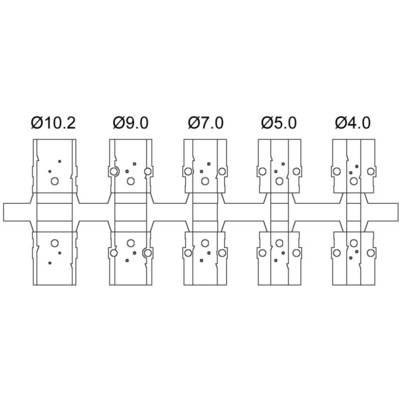

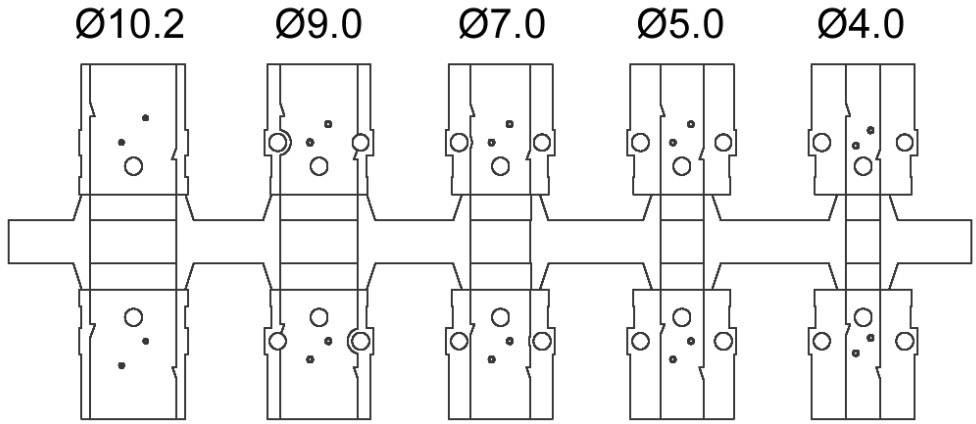

Diagram shows five tools with different drilling diameters: Ø10.2, Ø9.0, Ø7.0, Ø5.0, Ø4.0.
1/3
Image similar
Product type
D-SUB housing
Number of pins
15
Case material
Diecast zinc
Cable outlets
180 °
Connection angle
180 °
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 5 Nov
4 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 6.49 / piece)
€ 6.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
Only 4 Piece(s) available
14-day return policy included
Report legal concerns

Highlights & Details

D-SUB housing series DZK

  • Number of pins: 15
  • Diecast zinc

Technical specifications

Product type

D-SUB housing

Number of pins

15

Case material

Diecast zinc

Cable outlets

180°

Factory colour

Metal

Connection angle

180°

Content

1 pc(s)

Shielded

Yes

Manufacturer part #

6560-6105-02

Features

+ 4-40 knurl head screw

+ cable sleeve

Temperature range

-40 °C to 120 °C

Type

DTZK15-PCLG-K

Cable diameter (details)

11.50 mm
