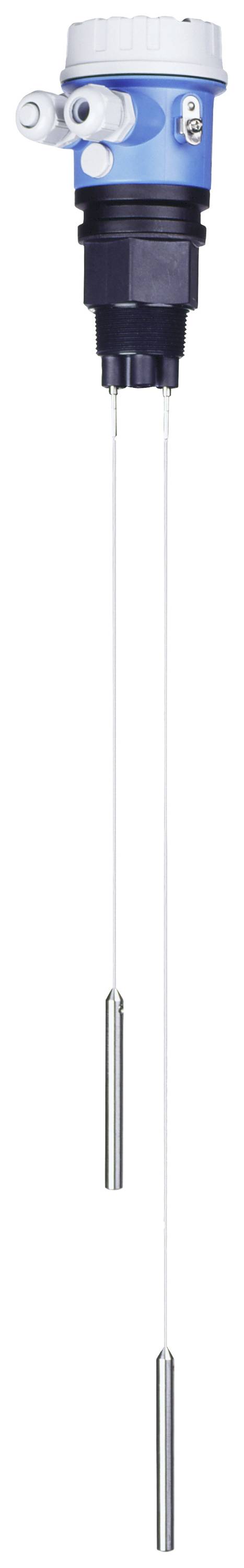

A sensor with cables for level measurement in containers, primarily in industrial applications.

A sensor with cables for level measurement in containers, primarily in industrial applications.

Image similar

Product type

Conductive level gauge

Packaging type

Piece

Type

FTW32

Connector

Cable gland

Material

Stainless steel

Endress+Hauser

Dispatches on Tue 27 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 285.00 / piece)

€ 285.00

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Conductive liquid level switch Lilipoint T FTW32-A1D3DA0A

Approval: Non-explosive area
Process connection: Thread ISO228 G1-1/2, PPS
Measuring point: 3x rope, 316Ti
Probe length: 10 m
Cable inlet: Screwing M20
Electronic output: Separate instrumentation

Technical specifications

Medium conductance min. 10 µS/cm
Max. Tensile strength 500 N
Process pressure: Up to 10 bar

Packaging type: Piece

Product type: Conductive level gauge

Type: FTW32

Connector: Cable gland

Material: Stainless steel

Material properties: rust-proof

Cable length: 10 m

Max. operating pressure: 10 bar

Content: 1 pc(s)

RoHS-compliant: Yes

Thread size: G1 1/2"

Max. temperature: +70 °C

Min. temperature: -40 °C

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2886197 Endress+Hauser Conductive level gauge FTW32 FTW32-A1D3DA0A 1 pc(s)

Description

The Lilipoint FTW32 is a limit indicator for conductive liquids (from 10 µS/cm). With up to 5 rods measuring tasks such as overfill protection, dry run protection, two-point control of pumps or multi-point detection can be realized. The device does not need to be calibrated and the lack of moving parts in the tank increases a long service life and reliable operation.

This text is machine translated.

Features

Capture up to five points with one probe
Two point control and additional MAX and MIN detection

Description

The Lilipoint FTW32 is a limit indicator for conductive liquids (from 10 µS/cm). With up to 5 rods measuring tasks such as overfill protection, dry run protection, two-point control of pumps or multi-point detection can be realized. The device does not need to be calibrated and the lack of moving parts in the tank increases a long service life and reliable operation.

This text is machine translated.

Features

Capture up to five points with one probe
Two point control and additional MAX and MIN detection
