Endress+Hauser RIA16-AA1A RIA16 Display 1 pc(s)
EAN:
Part number:
Item no:
Sales and shipping:
Number
Total (€ 298.32 / piece)
€
Highlights & Details
Loop-fed display for 4-20 mA
- Supply mode 2 wire
- LCD display 26 mm
- Input type: Analogue input 4-20 mA
- Output type: Binary output (open collector, electronic)
- Approval: Non-explosive area
- Housing: Plastic, glass-fiber reinforced
- Cable inlet M16 internal thread
Technical specifications
- Product type
Display
- Width
199 mm
- Height
133 mm
- Depth
96 mm
- Type
RIA16
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2886277 Endress+Hauser RIA16-AA1A RIA16 Display 1 pc(s)
User & Safety Instructions 2886277 Endress+Hauser RIA16-AA1A RIA16 Display 1 pc(s)
Description

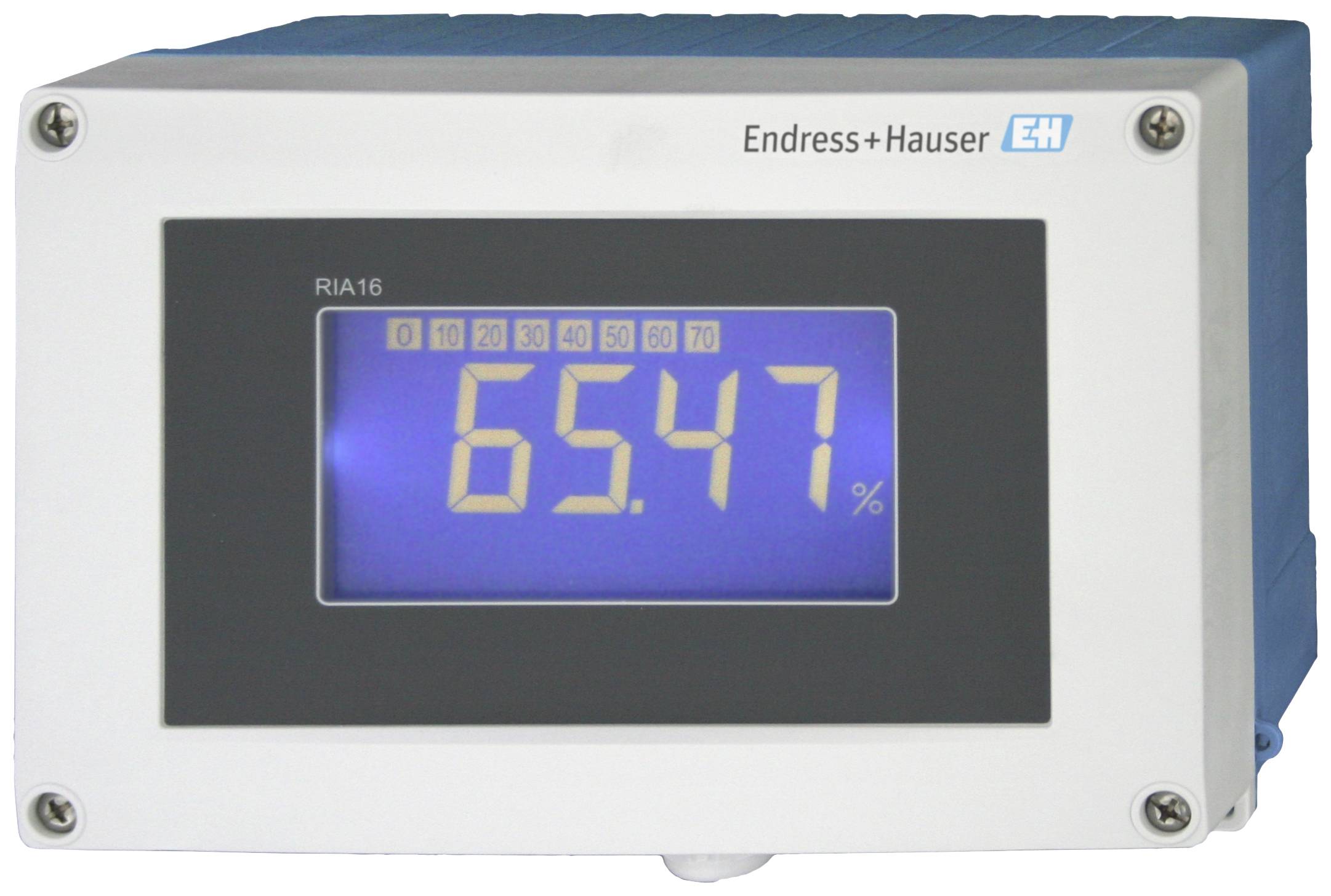

The field indicator of the RIA16 indicates the measured signal on the large backlit display. A bar chart graphically displays the value and thus enables a quick process overview. An editable plain text field displays additional information such as technical unit or TAG. Limit value violations are also signaled and an open collector can be switched. The display is powered directly from the 4...20 mA loop and requires no separate power supply. The device is available with Ex approval for applications in potentially explosive areas.
