Endress+Hauser RIA16-GR1A Sensor gauge RIA16 1 pc(s)
EAN:
Part number:
Item no:
Product type
Sensor gauge
Type
RIA16
Max. operating voltage
35 V DC
Operating voltage
35 V DC (max)
IP rating
IP67
Number
Total (€ 298.32 / piece)
€ 298.32
plus VAT.
14-day return policy included
Highlights & Details
Display / display RIA16-GR1A EX-free area + EAC marking plastic, glass-fiber reinforced M16 inner thread
- Approval: Ex-free area + EAC marking
- Housing: Plastic, glass-fiber reinforced
- Cable inlet M16 internal thread
Technical specifications
- Product type
Sensor gauge
- Type
RIA16
- Max. operating voltage
35 V DC
- Operating voltage
35 V DC (max)
IP67
- Content
1 pc(s)
- Length
96 mm
- Width
199 mm
- Height
133 mm
- RoHS-compliant
Yes
- Material
Plastic (fibreglass reinforced)
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2989178 Endress+Hauser RIA16-GR1A Sensor gauge RIA16 1 pc(s)
User & Safety Instructions 2989178 Endress+Hauser RIA16-GR1A Sensor gauge RIA16 1 pc(s)
Description

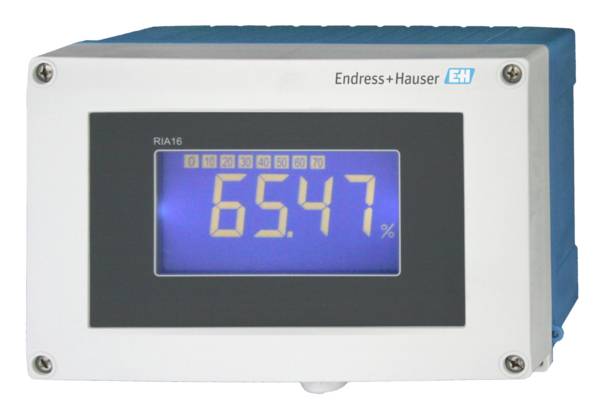

The RIA16 field indicator displays the measured signal on the large backlit display. A bar chart graphically displays the value and thus enables a quick process overview. An editable plain text field displays additional information such as technical unit or TAG. Limit value violations are also signaled and an open collector can be switched. The display is powered directly from the 4...20 mA loop and requires no separate power supply. The device is available with Ex approval for applications in potentially explosive areas.
This text is machine translated.
This text is machine translated.
Features
- 5-digit measurement display with dimension, bar-graph and background lighting.
- No external power supply required.
