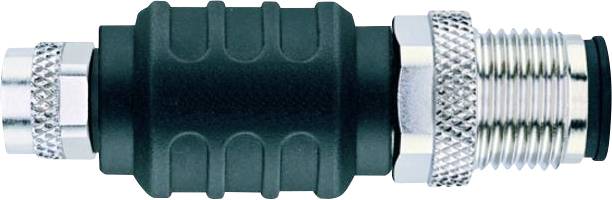

A metal and plastic connector, cylindrical in shape, featuring threaded ends and a black rubber middle section, likely used in cables or machinery connections.

A metal and plastic connector, cylindrical in shape, featuring threaded ends and a black rubber middle section, likely used in cables or machinery connections.

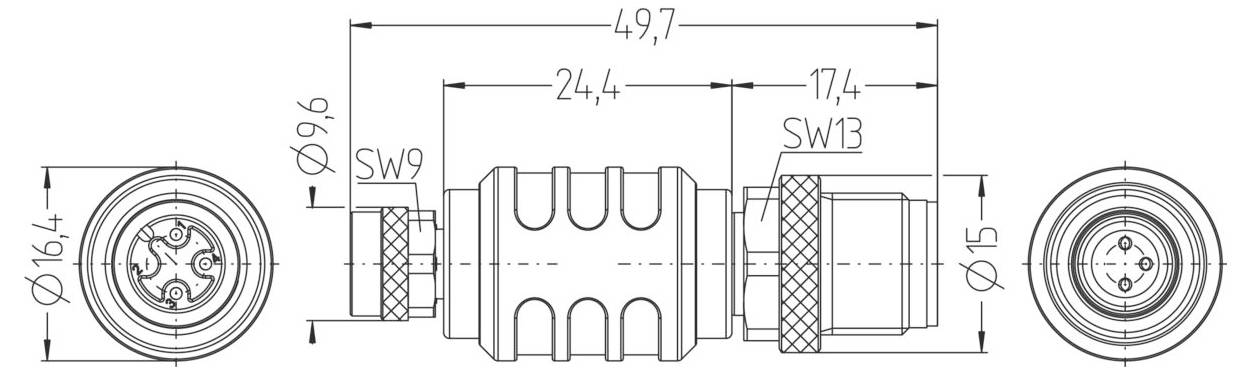

'Technical drawing of a connector with dimensions: overall length 49.7, width 16.4, other key measurements 24.4 and 17.4, labeled SW9 and SW13.'

1/2

Product type

Sensor/actuator adapter

Connector type

Adapter

Connection side A

M8 socket, straight

Connection side B

M12 plug, straight

No. of pins

3

Datasheet (PDF)

Escha

Fast track dispatch on Wed 14 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 23.99 / piece)

€ 23.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Material seal (bush): FPM/FKM
Rated voltage (page A | page B): 50VAC ; 60VDC
Insulation resistance (side A | side B): ≥108 Ω
Material grip body (side A | side B): Plastic, TPU, BK
Material contacts (side A | side B): Metal, CuZn, gold-plated
Material contact carrier (page A | page B): Plastic, TPU, BK
Material over-throw (side A | side B): Metal, CuZn, nickel-plated
Mechanical life (page A | page B): >100 mating cycles
Number of pins (page A | page B): 3
Protection type (mounted) (side A | side B): IP65, IP67, IP68
Connector (side A | side B): Socket, M8;plug, M12
Current rating per pin (at 40°C) (side A | side B): 4.0 A.
Ambient temperature (page A | page B): -30°C...+90°C.
Pollution level (page A | page B): 3
Coding (page A | page B): A.
Standards (page A | page B): IEC 61076-2-101;IEC 61076-2-104

Type: AL-SKP3-AL-WAS3

Product type: Sensor/actuator adapter

Connector type: Adapter

Connection side A: M8 socket, straight

Connection side B: M12 plug, straight

No. of pins: 3

Nominal voltage: 50 V AC
60 V DC

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connection: M8 socket

Thread type connection side: M8

Thread type (wiring and installation): M8

Coding: A

Contact material: CuZn

Features: A-coded

Min. temperature: -30 °C

Max. temperature: 90 °C

Manufacturer part #: 8008079

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553350 Escha 8008079 Sensor/actuator adapter M8 Adapter No. of pins (RJ): 3 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553350 Escha 8008079 Sensor/actuator adapter M8 Adapter No. of pins (RJ): 3 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.

This text is machine translated.

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.

This text is machine translated.
