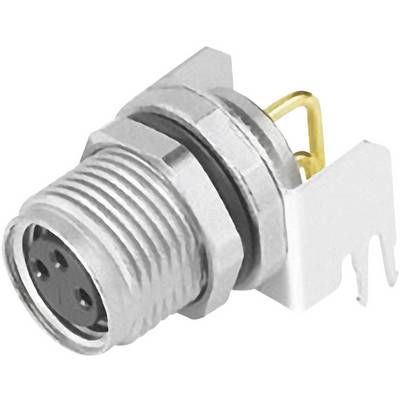

Round, silver connector part with multiple pins, suitable for electronic connections or device applications.

Image similar

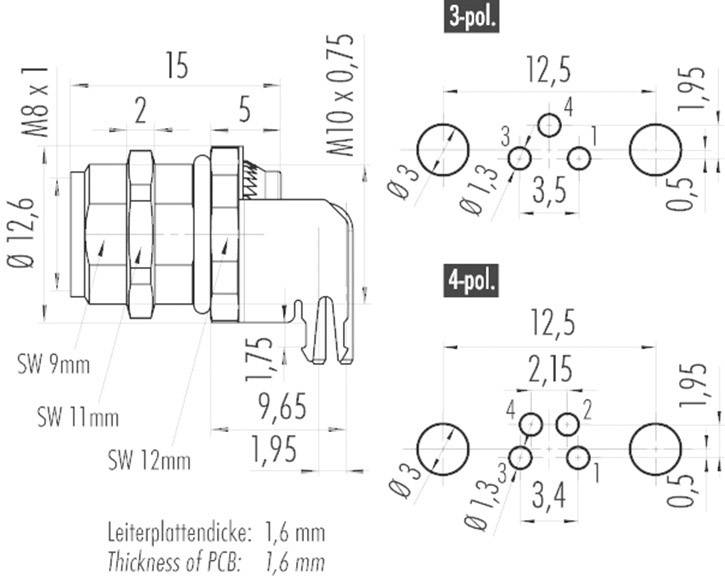

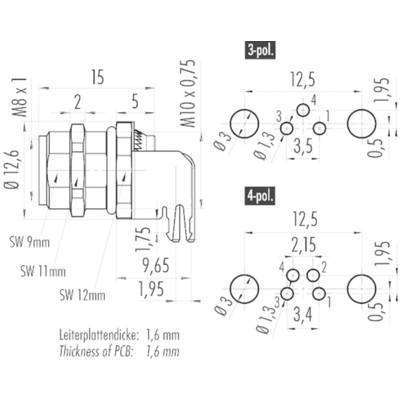

'Technical drawing of a connector. Dimensions and distances specified. Circuit board thickness: 1.6 mm. Various views.'

1/2

Image similar

Product type

Sensor/actuator built-in connector

Connector type

Socket, right angle

Connector standard

Sensor connector

Connection side A

M8 socket, right angle

Connection side B

Customisable

Datasheet (PDF)

Fast track dispatch on Thu, 9 Jul

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 20.16 / piece)

€ 20.16

plus VAT.

Only 9 Piece(s) available

Report legal concerns

Technical specifications

Type: 09 3420 82 04

Product type: Sensor/actuator built-in connector

Connector type: Socket, right angle

Connector standard: Sensor connector

Connection side A: M8 socket, right angle

Connection side B: Customisable

No. of pins: 4

Nominal voltage: 60 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connection: Soldering

Thread type connection side: M8

Thread type (wiring and installation): M10

Contact material: CuSn

Contact surface: Gold plated

Sensor/actuator connectivity fittings: M10 front panel fitting

: IP67

Min. temperature: -40 °C

Max. temperature: +85 °C

Seal type: Screw-on

Manufacturer part #: 09 3420 82 04

Content: 1 pc(s)
