A T-shaped metal and plastic pneumatic fitting, with threaded ends and a central connector at the bottom, used for air system connections.

A T-shaped metal and plastic pneumatic fitting, with threaded ends and a central connector at the bottom, used for air system connections.

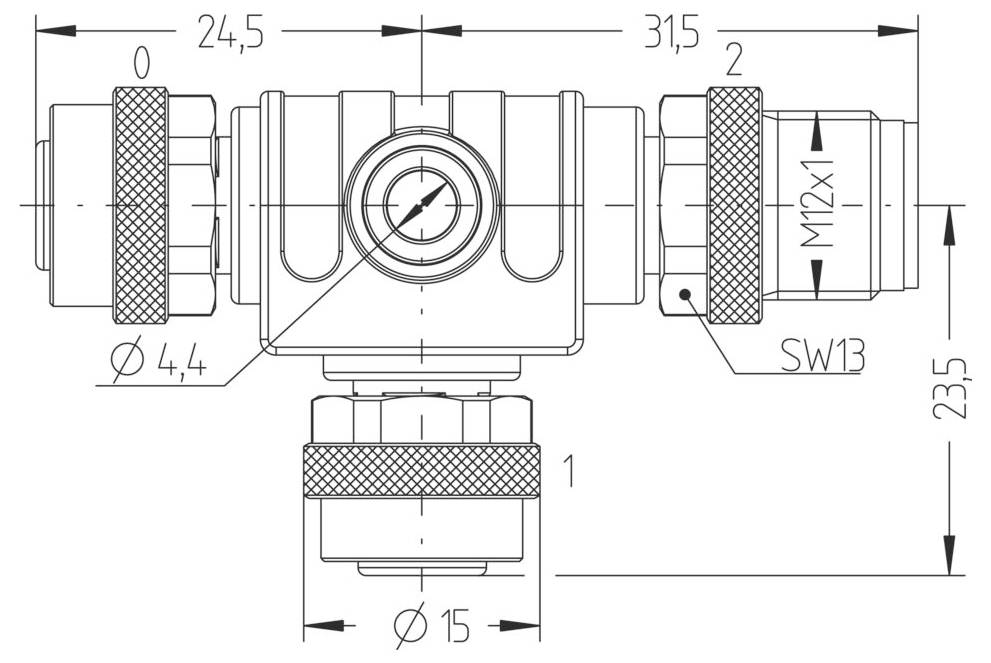

Technical drawing of a T-shaped pipe fitting with dimensions labeled, including 24.5 mm, 31.5 mm, 23.5 mm, and 15 mm. Includes M12x1 threading.

1/2

Product type

Sensor/actuator splitter/adapter

Connector type

Adapter

Connection side A

M12 socket, straight

Connection side B

M12 socket, straight

No. of pins

5

Datasheet (PDF)

Escha

Fast track dispatch on Wed 14 Oct

22 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 28.99 / piece)

€ 28.99

incl. VAT

14-day return policy included

Report legal concerns

Technical specifications

Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material grip body: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Protection type (mounted): IP65, IP67, IP68
Ambient temperature: -30°C...+90°C
Pollution level 3
Rated voltage (side A | side B): 60V
Material contacts (side A | side B): Metal, CuZn, gold-plated
Material contact carrier (page A | page B): Plastic, TPU, BK
Material over-throw (side A | side B): Metal, CuZn, nickel-plated
Number of pins (page A | page B): 5
Current rating per pin (at 40°C) (side A | side B): 4 A.
Coding (page A | page B): A.
Output (side A | side B): Socket, M12

Type: FKM5-FKM5-FSM5

Product type: Sensor/actuator splitter/adapter

Connector type: Adapter

Connection side A: M12 socket, straight

Connection side B: M12 socket, straight

No. of pins: 5

Jacket material: TPU

Nominal voltage: 60 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connection: Socket

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

Contact material: CuZn

Contact surface: Gold plated

Features: A-coded

Min. temperature: -30 °C

Max. temperature: 90 °C

Manufacturer part #: 8011661

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553358 Escha 8011661 Sensor/actuator splitter/adapter M12 Adapter No. of pins (RJ): 5 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553358 Escha 8011661 Sensor/actuator splitter/adapter M12 Adapter No. of pins (RJ): 5 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.

This text is machine translated.

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.

This text is machine translated.
