Name: Escha 8019720 Sensor/actuator connector M8 No. of pins (RJ): 3 1 pc(s)
Brand: Escha
SKU: 3553365
Availability: InStock

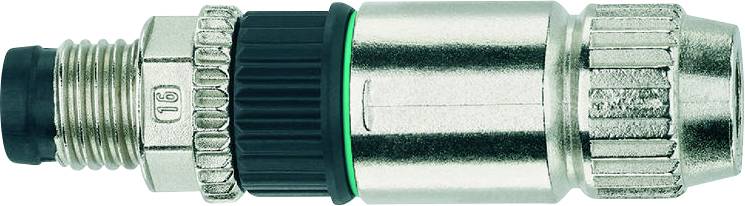

A cylindrical metal connector with a screw thread and black plastic ridged section, used for industrial or electronic applications.

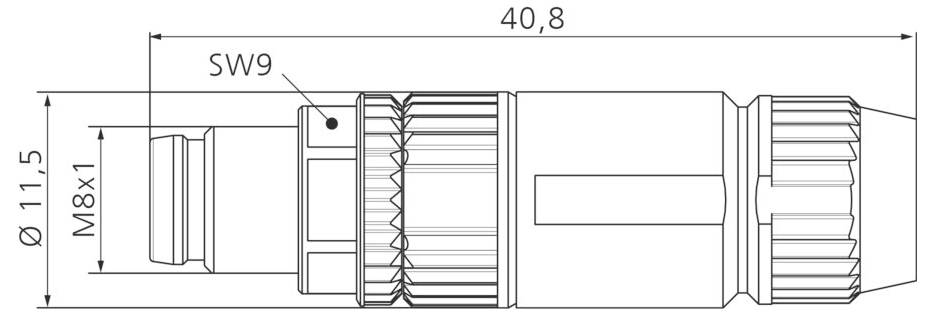

Technical drawing of a cylindrical connector, length 40.8 mm, diameter 11.5 mm, with label 'SW9'. Marked M8x1 threading.

1/2

Product type

Sensor/actuator connector

Connection side A

M8 plug, straight

No. of pins

Nominal voltage

32 V

Nominal current

4.0 A

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

2 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 16.99 / piece)

€ 16.99

incl. VAT

Only 2 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 32V
Insulation resistance ≥108 Ω
Material: Die-cast zinc, nickel-plated
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, PA, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-104 standard
Number of poles: 3
Protection class (mounted) IP67
Plug connector: Plug, straight, M8
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -40°C...+85°C
Pollution level 3
Coding: A
Constant resistance 10 mΩ
Material over-throw: Metal, GD-ZN, nickel-plated
Connection type: Cut/clamp connection
Connection cross-section: 0.14…0.34 mm² ; AWG26…22
Cable outlet 2.5...5.1 mm

Type: SSPC3S

Product type: Sensor/actuator connector

Connection side A: M8 plug, straight

No. of pins: 3

Nominal voltage: 32 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.34 mm²

Connection: Cut & Clip connector

Thread type connection side: M8

Thread type (wiring and installation): M8

Coding: A

Contact material: CuZn

Contact surface: Gold plated

max. cross section: 0.34 mm²

Min. cross section: 0.14 mm²

Min. temperature: -40 °C

Max. temperature: 85 °C

Manufacturer part #: 8019720

Content: 1 pc(s)

Cable Ø (max.): 5.1 mm

Cable Ø up to: 2.5 mm

Cable Ø range: 2.5 - 5.1 mm
