Name: Escha 8026309 Sensor/actuator connector M12 No. of pins (RJ): 5 1 pc(s)
Brand: Escha
SKU: 3553372
Availability: InStock

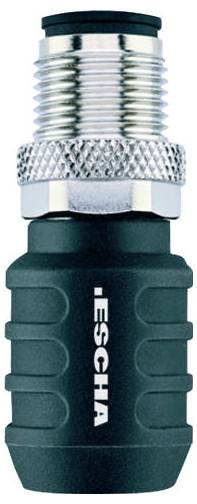

A close-up of a black cable connector with metallic threads labeled 'ESCHA', showing its locking mechanism and ribbed grip design.

1/2

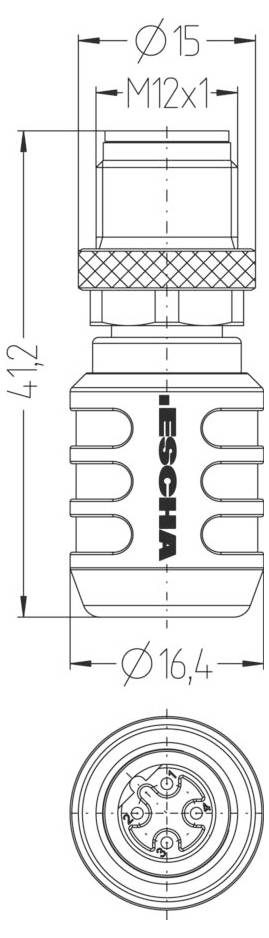

Product type

Sensor/actuator connector

Connector standard

CANopen-/DeviceNet

Connection side A

M12 plug, straight

No. of pins

Nominal voltage

60 V

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

3 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 13.99 / piece)

€ 13.99

incl. VAT

Only 3 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 60V
Insulation resistance ≥108 Ω
Material grip body: Plastic, TPU, BK
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, TPU, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Number of pins: 5
Protection type (mounted): IP65, IP67, IP68
Plug connector: Plug, straight, M12
Current load capacity per pin (at 40°C): 4.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
Coding: A
Material over-throw: Metal, CuZn, nickel-plated
Function: CANopen/DeviceNET final plug

Type: CD-WAS2.010-AS

Product type: Sensor/actuator connector

Connector standard: CANopen-/DeviceNet

Connection side A: M12 plug, straight

No. of pins: 5

Nominal voltage: 60 V

Nominal current: 4.0 A

Nominal current - rounded value: 4 A

Connection: Plug

Thread type connection side: M12

Thread type (wiring and installation): M12

Coding: A

Contact material: CuZn

Contact surface: Gold plated

Min. temperature: -30 °C

Max. temperature: 90 °C

Manufacturer part #: 8026309

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553372 Escha 8026309 Sensor/actuator connector M12 No. of pins (RJ): 5 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553372 Escha 8026309 Sensor/actuator connector M12 No. of pins (RJ): 5 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.
