Name: Escha 8071668 Cable gland 0.5 m No. of pins (RJ): 8 1 pc(s)
Brand: Escha
SKU: 3553479
Availability: InStock

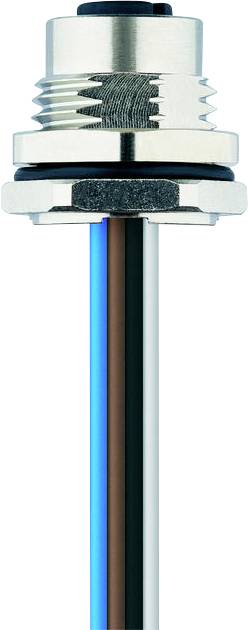

A close-up of a cylindrical metal electrical connector with three colored wires: blue, brown, and black, emerging from the bottom.

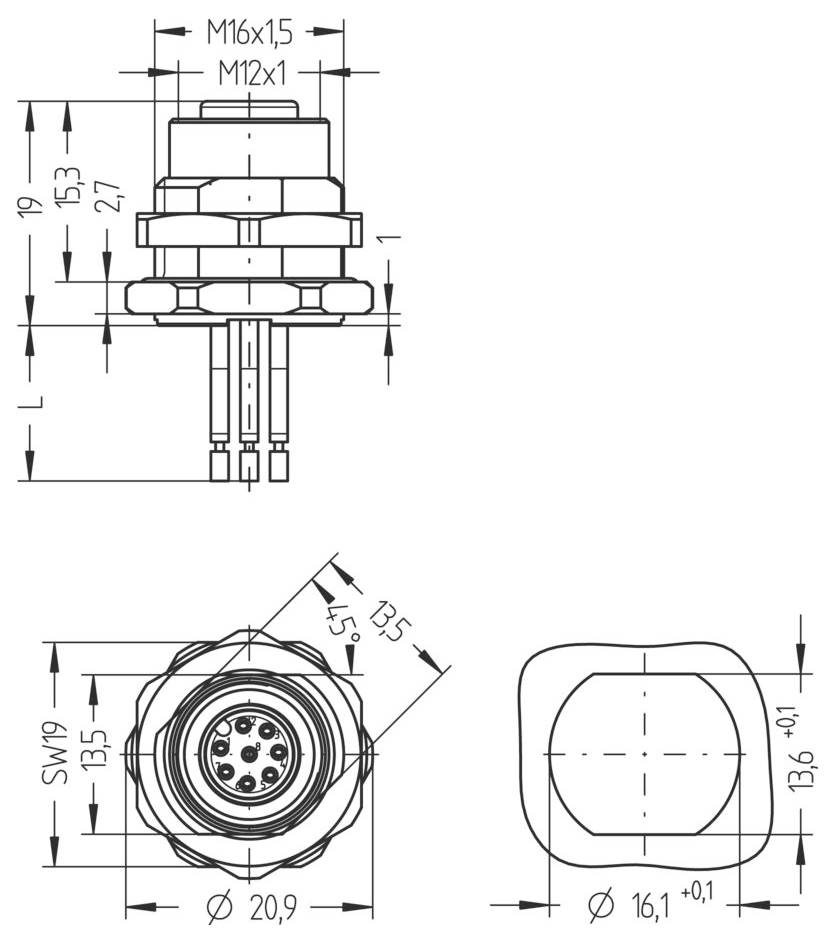

'Technical drawing of an electrical connector with detailed dimensions and measurements. Includes top, front, and bottom views.'

1/2

Product type

Cable gland

Connector standard

Sensor connector

Connection side A

M12 socket, straight

Connection side B

Cable, open end

No. of pins

Datasheet (PDF)

Fast track dispatch on Wed 14 Oct

5 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 22.99 / piece)

€ 22.99

incl. VAT

Only 5 Piece(s) available

14-day return policy included

Report legal concerns

Technical specifications

Rated voltage: 30V
Insulation resistance ≥108 Ω
Material seal (bush): FPM/FKM
Material contacts: Metal, CuZn, gold-plated
Material contact carrier: Plastic, PA GF, BK
Mechanical lifespan >100 mating cycles
IEC 61076-2-101 standard
Pin assignment:1 WH, 2 bn, 3 GN, 4 ye, 5 Gy, 6 PK, 7 BU, 8 RD
Number of pins: 8
Protection type (mounted): IP65, IP67, IP68
Plug connector: Socket, straight, M12
Current load capacity per pin (at 40°C): 2.0 A
Ambient temperature: -30°C...+90°C
Pollution level 3
WIRE COLORS: WH, BN, GN, YE, GY, PK, BU, RD
Wire cross-section 8 x 0.25 mm²
Material wire insulation: PVC
Coding: A
Connection type: Wire connection
Fixing thread: M16x1.5
Replaces: 8028120
Wire length 0.5 m.
Material flange housing: Metal, CuZn, nickel-plated
Material outer seal: NBR
Mounting direction: Rear panel fitting (incl. fixing nut)
Key width for mounting nut SW19

Type: AL-FHM12KUA8-0,5/M16

Product type: Cable gland

Connector standard: Sensor connector

Connection side A: M12 socket, straight

Connection side B: Cable, open end

No. of pins: 8

Cable length: 0.5 m

Nominal voltage: 30 V

Nominal current: 2.0 A

Nominal current - rounded value: 2 A

Cross-section (sensor/actuator wiring): 0.25 mm²

Connection: Braid

Thread type (wiring and installation): M16

Coding: A

Contact material: CuZn

Contact surface: Gold plated

Sensor/actuator connectivity fittings: Rear panel fitting

Min. temperature: -30 °C

Max. temperature: 90 °C

Seal type: Screw-on

Manufacturer part #: 8071668

Content: 1 pc(s)

Documents & Downloads

Datasheet

Datasheet 3553479 Escha 8071668 Cable gland 0.5 m No. of pins (RJ): 8 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3553479 Escha 8071668 Cable gland 0.5 m No. of pins (RJ): 8 1 pc(s)

Description

Escha standard connection technology stands for variety, quality and reliability in the protection classes IP67, IP68 and IP69. Thanks to different designs, codes and a variety of cable qualities, you will find the right solution for every application. Whether M8, M12 or M23 round connectors, RJ45 or solenoid connectors – all products come in many cable lengths. Practical T and Y-distributor, panel-mounted plug, adapter and I/O-modules enable a flexible wiring structure.

This text is machine translated.
