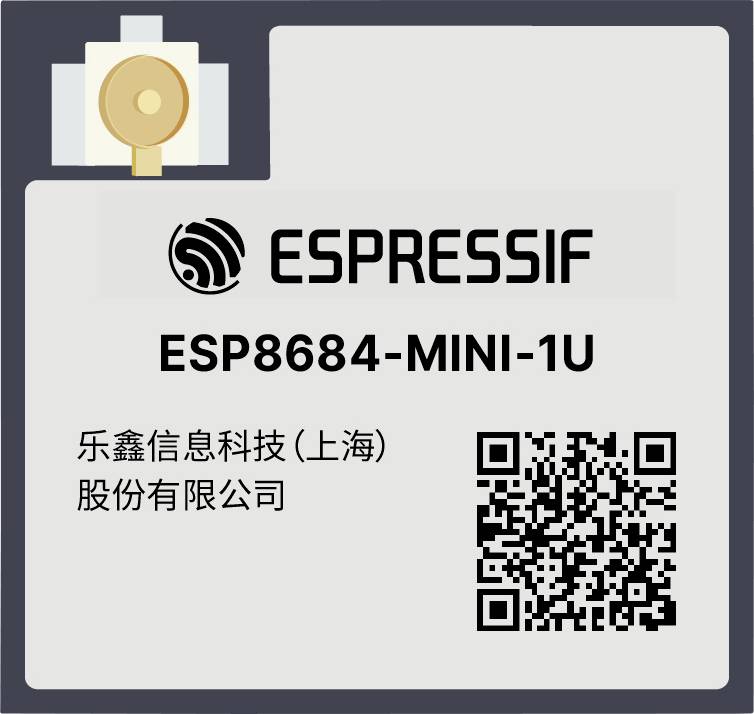

Espressif ESP8684-MINI-1U-H2 Wi-Fi module WiFi/Bluetooth Modul ESP8684 Tape on Full reel
Datasheet (PDF)
Part number:
Item no:
Technical specifications
- Series
ESP8684
- Memory type
FLASH
- Memory capacity
2 MB
- Processor cores (No.)
1 x
- Bluetooth
5.3
- Wi-Fi
built-in
- Length
13.2 mm
- Width
12.5 mm
- Height
2.4 mm
- Product type
Wi-Fi module
- Packaging type
Tape on Full reel
- Interfaces
I²C
- Enclosure
SMD-53
- Mounting type
PCB mount
- Operating temperature (max.)
105 °C
- Operating temperature (min.)
-40 °C
- Weight
2.0 g
Documents & Downloads
Datasheet
Datasheet 3702348 Espressif ESP8684-MINI-1U-H2 Wi-Fi module WiFi/Bluetooth Modul ESP8684 Tape on Full reel
User & Safety Instructions
User & Safety Instructions 3702348 Espressif ESP8684-MINI-1U-H2 Wi-Fi module WiFi/Bluetooth Modul ESP8684 Tape on Full reel
