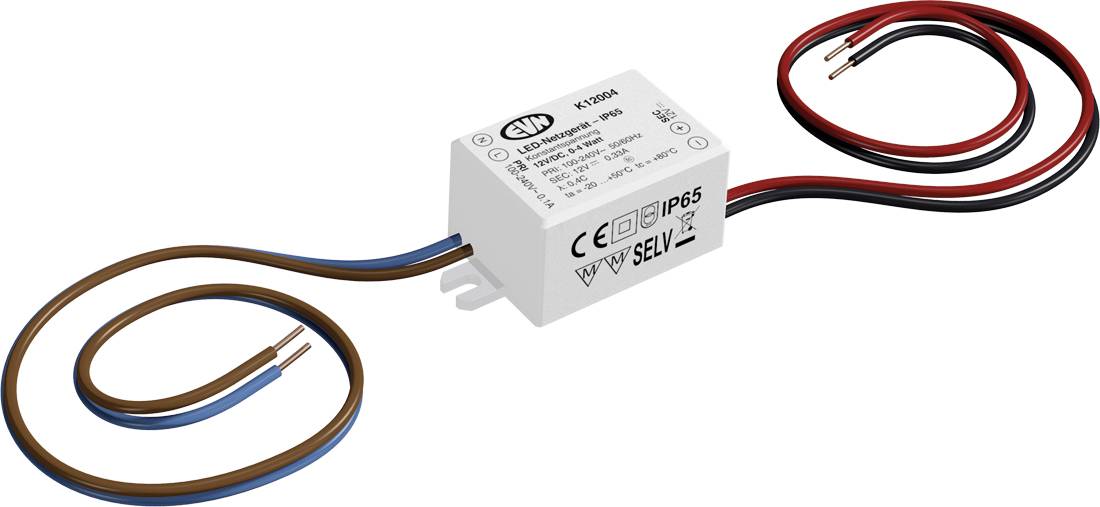

EVN K12004 LED transformer Constant voltage 4 W 12 V Outdoor, not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
12V/DC LED POWER SUPPLY
- Constant voltage
- 12 V
Technical specifications
- Product type
LED transformer
- Type
Constant voltage
- Dim

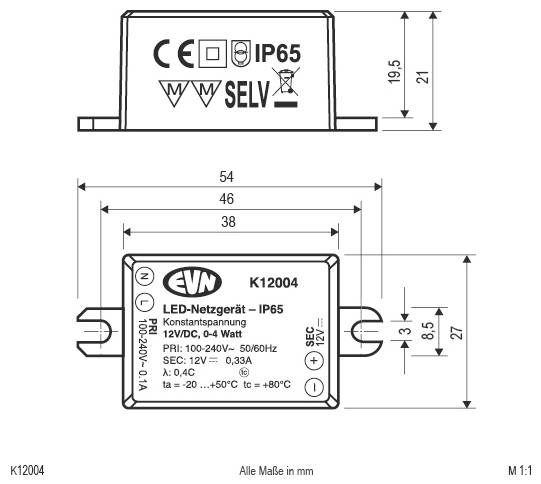

(L x W x H) 54 x 27 x 21 mm
- Factory colour
Multicolour
- Output voltage (max.)
12 V DC
- Output voltage (min.)
12 V
- Protection class
II
- LED driver features
Outdoor
not dimmable
IP65
- Connection
Open end cable
- Max. power
4 W
- Input voltage (max.)
240 V
- Min. input voltage
100 V
- Weight
0.05 kg
- Power (min.)
0.1 W
- Power range
0.1 up to 4 W
- Width
27 mm
- Height
21 mm
- Length
54 mm
- Max. temperature
80 °C
- Min. temperature
-20 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2483735 EVN K12004 LED transformer Constant voltage 4 W 12 V Outdoor, not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2483735 EVN K12004 LED transformer Constant voltage 4 W 12 V Outdoor, not dimmable 1 pc(s)
Description
The LED power supply unit can be installed perfectly in switch boxes due to its small design, or even in difficult spaces. The connecting cables have a length of 17cm on the primary side and 17cm on the secondary side. Technical data: Supply voltage: 100-240V/AC, ta: -20°C - 50°C, tc: 80°C, power factor: 0.40.
This text is machine translated.
This text is machine translated.
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
