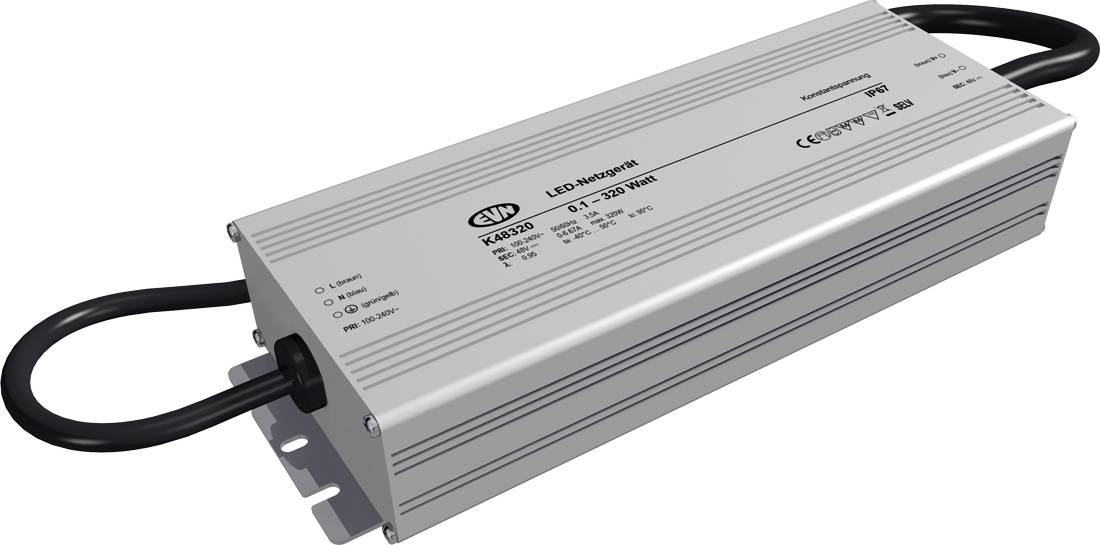

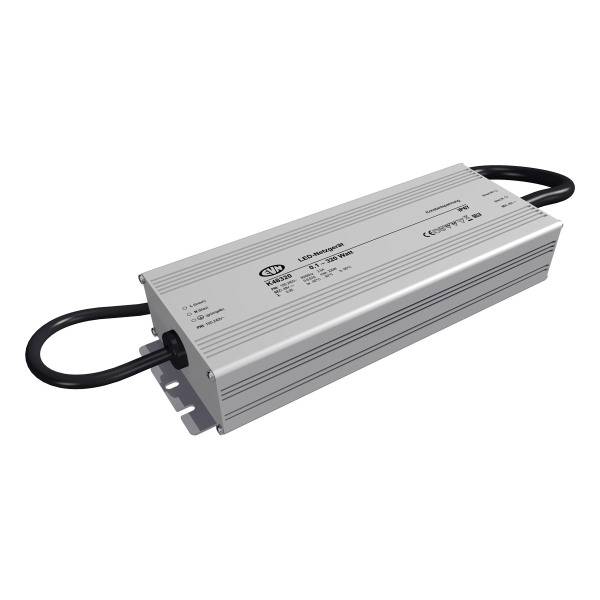

EVN K48320 LED control gear Constant voltage 320 W 48 V not dimmable 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
K48320
- Constant voltage
- 48 V
Technical specifications
- Product type
LED control gear
- Type
Constant voltage
- Dim

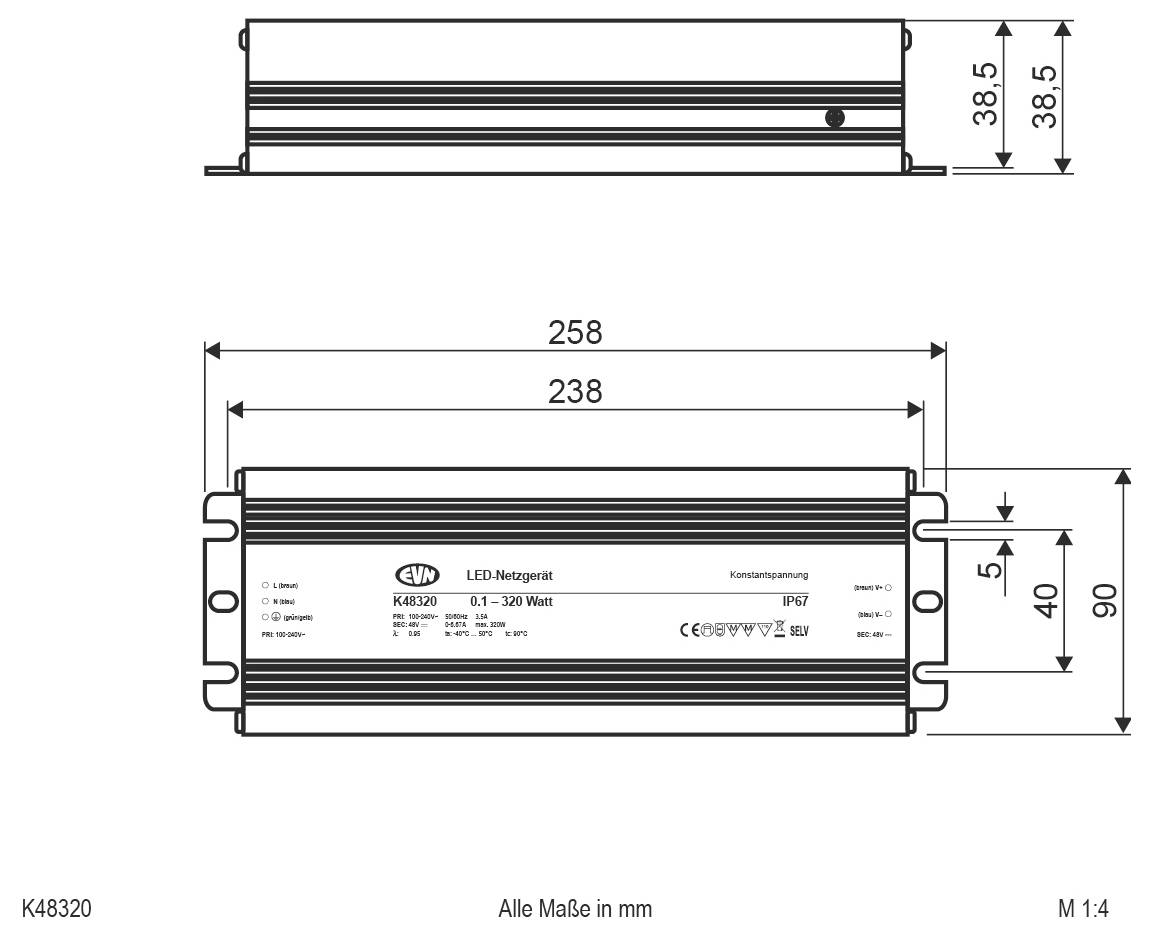

(L x W x H) 258 x 90 x 38.5 mm
- Output voltage (max.)
48 V
- Output voltage (min.)
48 V
- Test mark
MM-Kennzeichnung
- Protection class
I
- LED driver features
not dimmable
- Max. power
320 W
- Weight
1.03 kg
- Power (min.)
0.1 W
- Power range
0.1 up to 320 W
- Width
90 mm
- Height
38.5 mm
- Length
258 mm
- Max. temperature
50 °C
- Min. temperature
-40 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3022596 EVN K48320 LED control gear Constant voltage 320 W 48 V not dimmable 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3022596 EVN K48320 LED control gear Constant voltage 320 W 48 V not dimmable 1 pc(s)
Description
Hints
Caution!
Make sure you pick an LED driver/transformer that comes with the appropriate power rating.
Choose a driver/transformer that supplies approx. 30 pecent more watttage, as the current consumption (i.e. amperage) of the LEDs is key, and not the power rating of the LED provided by the LED manufacturer.
Keep in mind that the switch-on surge tend to be much higher.
